P_1x5R_105

P_1x5R_105_C

Production testing

Date:4/11/2007

Operator: Cameron McKinney

start testing time:11:21 AM

Sensor: S_1x5R_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 XW4KFXT 49A

ROC1 XW4KFXT 74A

ROC2 XW4KFXT 75B

ROC3 XW4KFXT 76A

ROC4 XW4KFXT 29C

ROC	ROC wafer	Label
ROC0	XW4KFXT	49A
ROC1	XW4KFXT	74A
ROC2	XW4KFXT	75B
ROC3	XW4KFXT	76A
ROC4	XW4KFXT	29C

Depletion Voltage is -60 and suggested operational voltage is -100

Ibias_DAC, Ibias_DAC Data 130 144 138 118 130

Vana, VanaData 135 128 142 126 133

CalDelData and plots 60 67 83 103 79

VthrCompData and plots 90 86 79 68 67

TestDdata ,TestD Plots 1 0 0 0 1

LightData ,Light Plots 0 0 0 0 5

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	125	135	100	130	105
Vsf	140	135	140	140	140
VoffsetOp	100	75	100	65	95
VIbias_PH	105	105	105	100	100

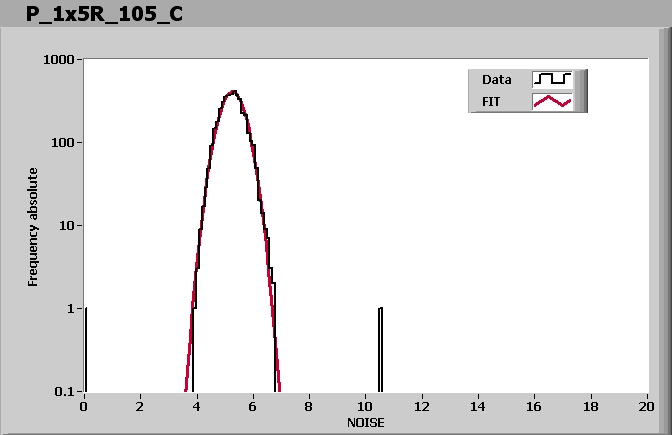

ROC0 NOISE			MEAN = 5.259406 SIGMA = 0.408529

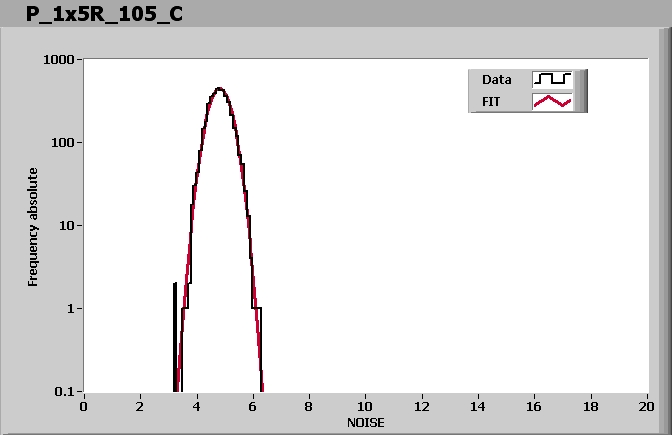

ROC1 NOISE			MEAN = 4.814230 SIGMA = 0.367000
ROC2 NOISE			MEAN = 5.091428 SIGMA = 0.395103
ROC3 NOISE			MEAN = 5.258097 SIGMA = 0.435980

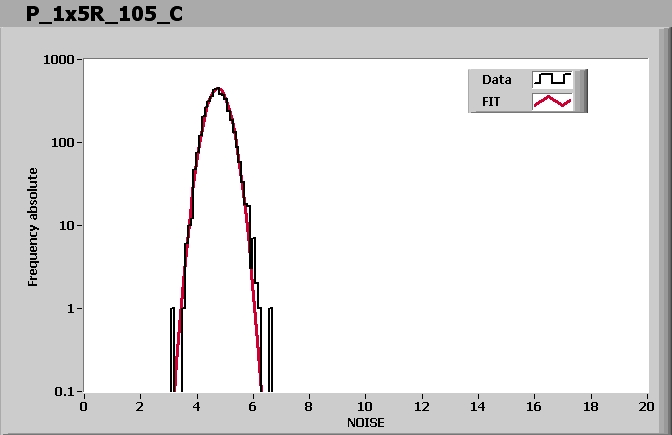

ROC4 NOISE			MEAN = 4.745725 SIGMA = 0.374921

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:39 AM

Ibias_DAC, Ibias_DAC Data	130	144	138	118	130
Vana, VanaData	135	128	142	126	133
CalDelData and plots	60	67	83	103	79
VthrCompData and plots	90	86	79	68	67
TestDdata ,TestD Plots	1	0	0	0	1
LightData ,Light Plots	0	0	0	0	5
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
