| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_099_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 1/30/2007
| Part | ID |
|---|---|
| BBM | BBM_099-1x5 |
| VHDI | 1x5R_257 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 20D |
| ROC1 | W28_X54K5TT | 20A |
| ROC2 | W28_X54K5TT | 39D |
| ROC3 | W28_X54K5TT | 39C |
| ROC4 | W28_X54K5TT | 39A |
Inspected by Lockwood Gale on date 2/2/2007
| LR_dev | 0.090 |
| LL_dev | 0.109 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for testing on 2/2/2007 by Lockwood Gale
P_1x5R_099_Aon 2/5/2007 1:26 PM
P_1x5R_099_Aon 2/5/2007 1:26 PM
PLAQUETTE TESTED on 2007-02-05 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 138 | 126 | 128 | 144 | 148 | |
| Vana | 134 | 128 | 120 | 132 | 142 | |
| Cal_Del | 79 | 69 | 71 | 78 | 69 | |
| Vthrs_Comp | 69 | 85 | 66 | 82 | 85 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_099_A_Ibias-dac.jpg) |

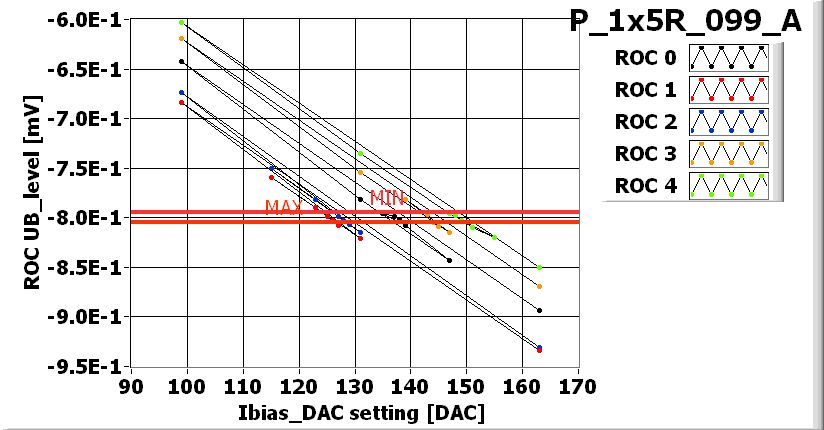

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_099_A_Vana.jpg) |

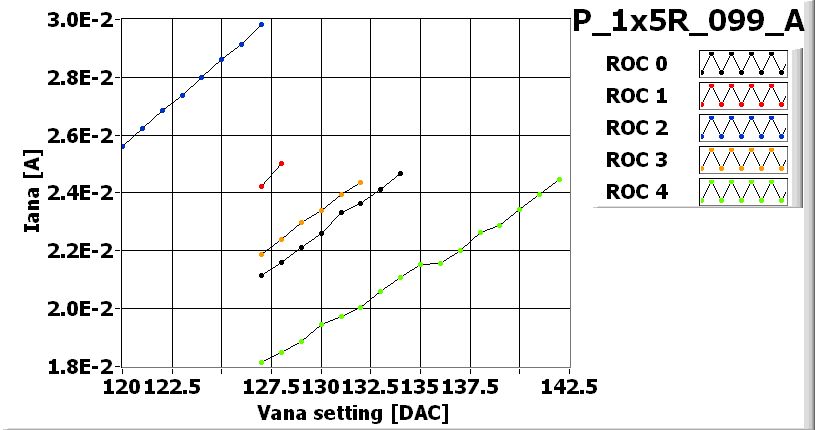

VANA_XML-File |
![[IMAGE] of](P_1x5R_099_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_099_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_099_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_099_Ano-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_1x5R_099_A-1-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_099_A-1-100-efficiency.jpg)

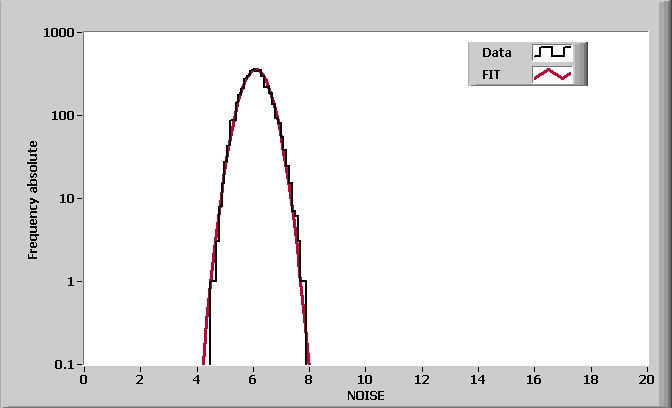

| ROC0 NOISE | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC0-HISTO.jpg) | MEAN = 6.088849SIGMA = 0.465050 |
| ROC1 NOISE | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC1-HISTO.jpg) | MEAN = 6.068982SIGMA = 0.445694 |

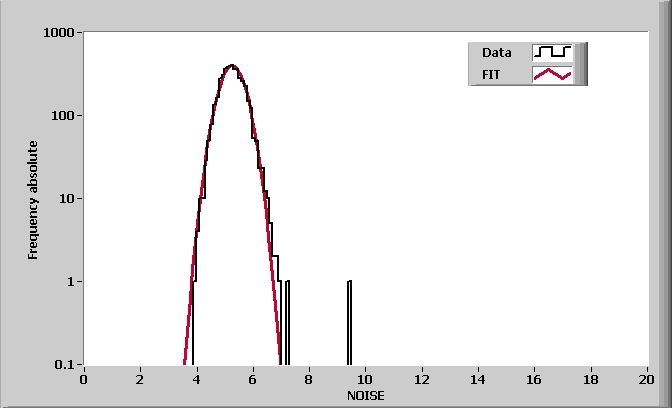

| ROC2 NOISE | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC2-HISTO.jpg) | MEAN = 5.256790SIGMA = 0.418630 |
| ROC3 NOISE | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC3-HISTO.jpg) | MEAN = 6.358093SIGMA = 0.487652 |

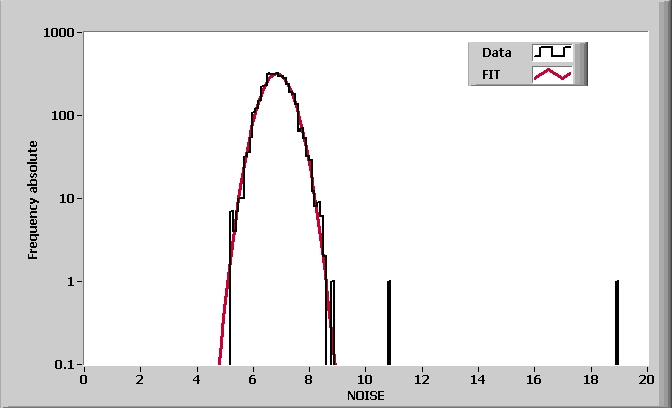

| ROC4 NOISE | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_1x5R_099_A-1-100-noise-ROC4-HISTO.jpg) | MEAN = 6.839193SIGMA = 0.513908 |
PLAQUETTE READY TO BE POTTED
