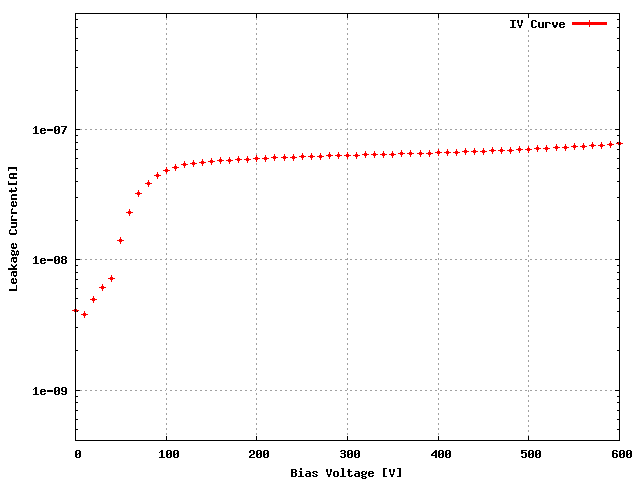

Sensor: S_1x5R_09, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 20D |
| ROC1 | W28_X54K5TT | 20A |
| ROC2 | W28_X54K5TT | 39D |
| ROC3 | W28_X54K5TT | 39C |
| ROC4 | W28_X54K5TT | 39A |
| Ibias_DAC, Ibias_DAC Data | 138 | 126 | 128 | 144 | 148 |
| Vana, VanaData | 134 | 128 | 120 | 132 | 142 |
| CalDelData and plots | 79 | 69 | 71 | 78 | 69 |
| VthrCompData and plots | 69 | 85 | 66 | 82 | 85 | Depletion Voltage is -50 and suggested operational voltage is -90
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 1:42 PM
