P_1x5R_088_A

Parts committed by Bolla Gino on date 11/16/2006

PartID
BBMBBM_088-1x5
VHDI1x5R_222

ROCROC waferLabel
ROC0W21_XA4KFIT63C
ROC1W21_XA4KFIT63B
ROC2W21_XA4KFIT62D
ROC3W21_XA4KFIT62C
ROC4W21_XA4KFIT62B

Inspected by Lockwood Gale on date 11/17/2006
PictureComment

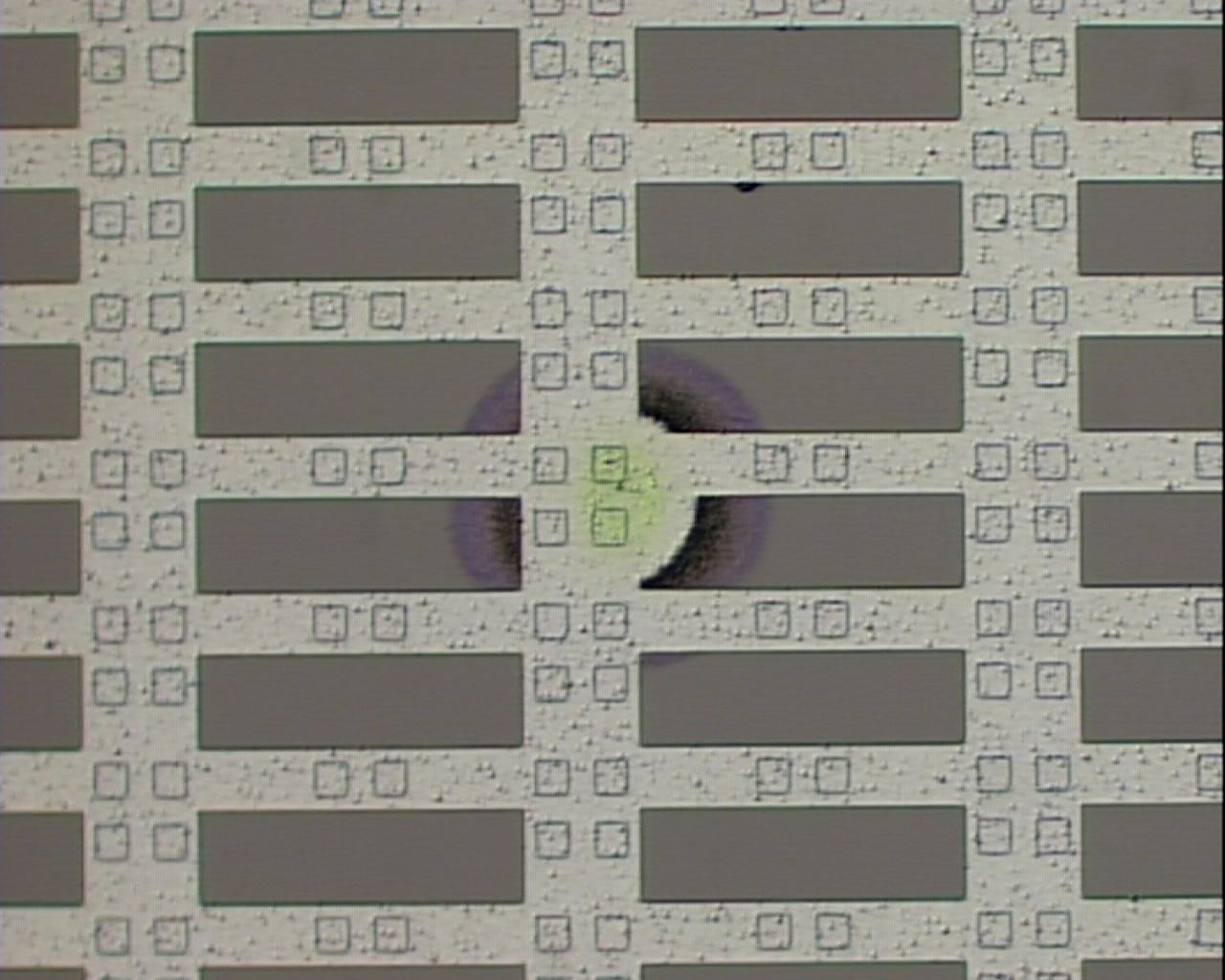

[IMAGE] of Excess metal on sensor above ROC 3.
LR_dev0.077
LL_dev0.024
FINAL COMMENT by Lockwood GaleNo assembly problems. No wirebond problem.

PLAQUETTE made READY for testing on 11/17/2006 by Lockwood Gale

P_1x5R_088_Aon 11/17/2006 3:14 PM

PLAQUETTE TESTED on 2006-11-17 by Isaac Childres

[IMAGE] of
IV_XML-File
Maximum Voltage 600 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 48 V
Operational Voltage 88 V

ROCROC0ROC1ROC2ROC3ROC4
Ibias_DAC138144128142141
Vana131120127129118
Cal_Del9098998379
Vthrs_Comp7774747669
Unbumped00000
Dead00000
Noisy00000
Undecoded00000
Total BAD00000

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

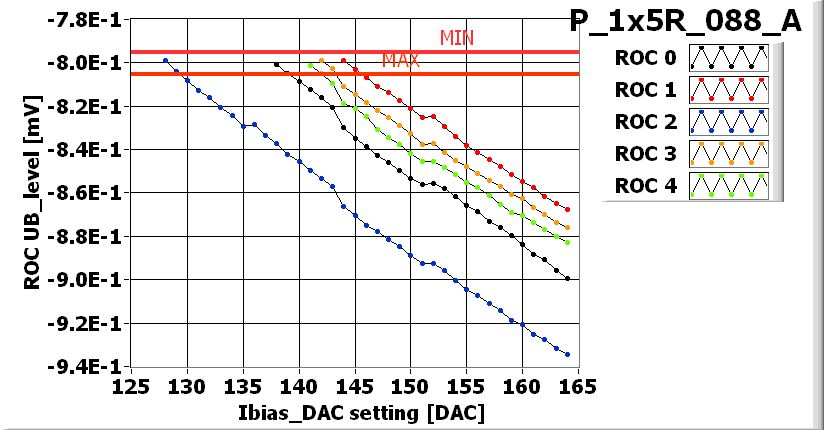

[IMAGE] of I_BIAS_DAC_XML-File

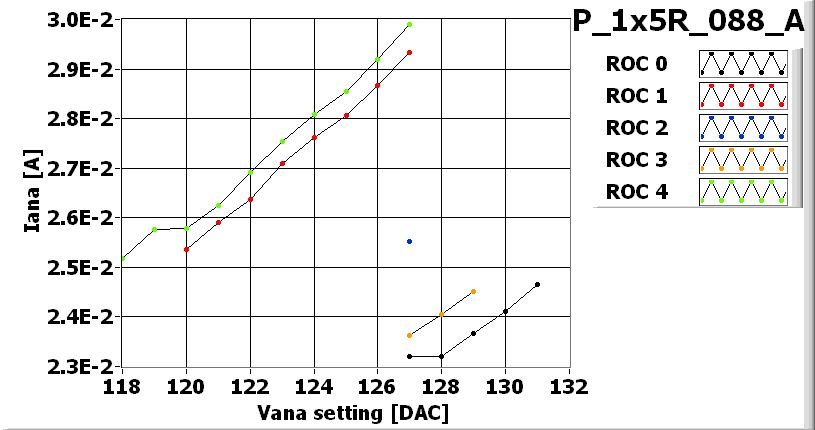

[IMAGE] of VANA_XML-File

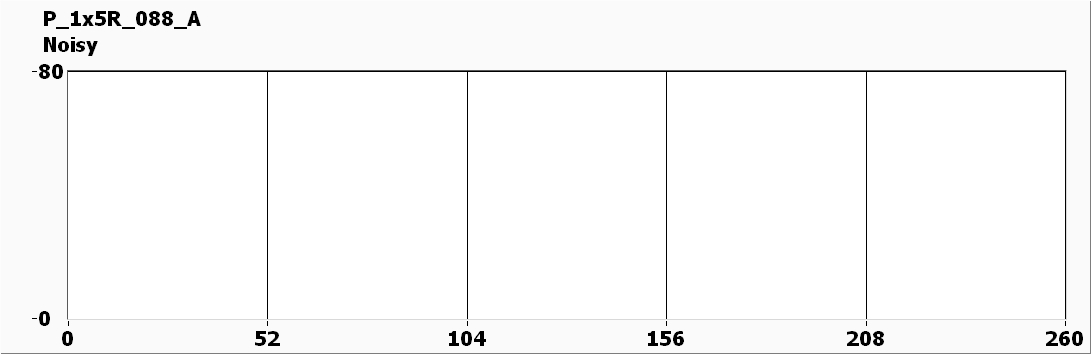

[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

Shipped on date 2006-11-20

Plaquette assigned to panel P4L_014
