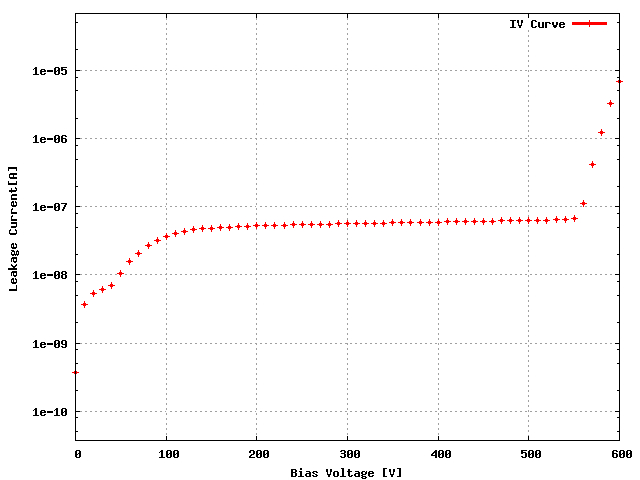

Sensor: S_1x5R_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W21_XA4KFIT | 63C |
| ROC1 | W21_XA4KFIT | 63B |
| ROC2 | W21_XA4KFIT | 62D |
| ROC3 | W21_XA4KFIT | 62C |
| ROC4 | W21_XA4KFIT | 62B |
| Ibias_DAC, Ibias_DAC Data | 138 | 144 | 128 | 142 | 141 |
| Vana, VanaData | 131 | 120 | 127 | 129 | 118 |
| CalDelData and plots | 90 | 98 | 99 | 83 | 79 |
| VthrCompData and plots | 77 | 74 | 74 | 76 | 69 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Everything okay
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:29 PM
