![[IMAGE] of](P_1x5R_072_A_IV.jpg)

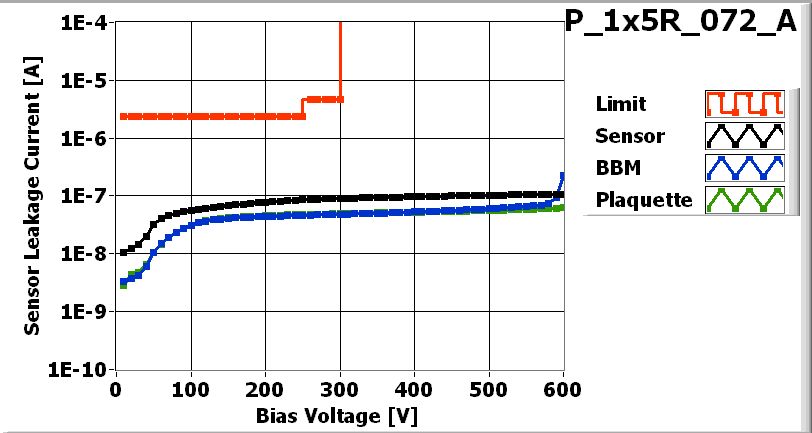

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_072_A_LASER.jpg)

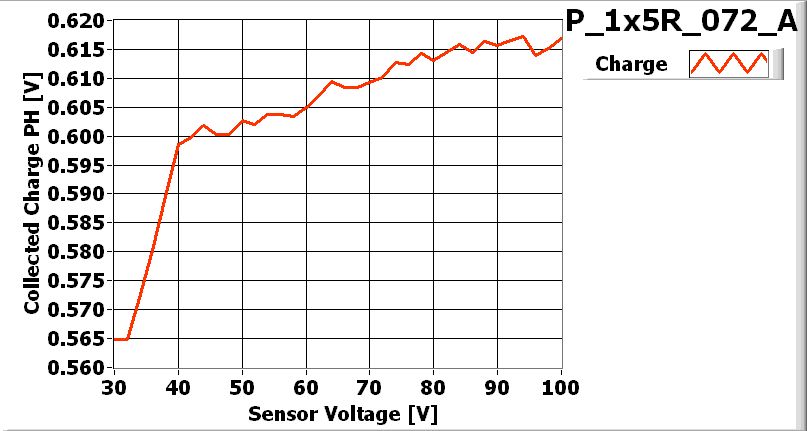

| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 1/17/2007
| Part | ID |
|---|---|
| BBM | BBM_072-1x5 |
| VHDI | 1x5R_247 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W31_X44K5UT | 31C |
| ROC1 | W31_X44K5UT | 30D |
| ROC2 | W31_X44K5UT | 30A |
| ROC3 | W31_X44K5UT | 49D |
| ROC4 | W31_X44K5UT | 49C |
Inspected by Lockwood Gale on date 1/19/2007
| LR_dev | 0.099 |
| LL_dev | 0.093 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 1/19/2007 by Lockwood Gale
P_1x5R_072_Aon 1/19/2007 2:50 PM
P_1x5R_072_Aon 1/19/2007 2:50 PM
PLAQUETTE TESTED on 2007-01-19 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 138 | 128 | 140 | 144 | 134 | |
| Vana | 145 | 115 | 135 | 120 | 134 | |
| Cal_Del | 81 | 83 | 87 | 91 | 89 | |
| Vthrs_Comp | 80 | 70 | 70 | 68 | 75 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_072_A_Ibias-dac.jpg) |

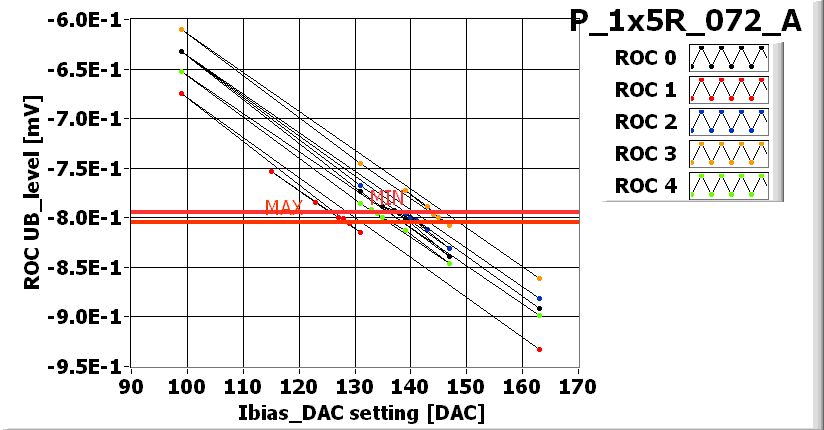

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_072_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_072_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_072_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_072_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_072_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
