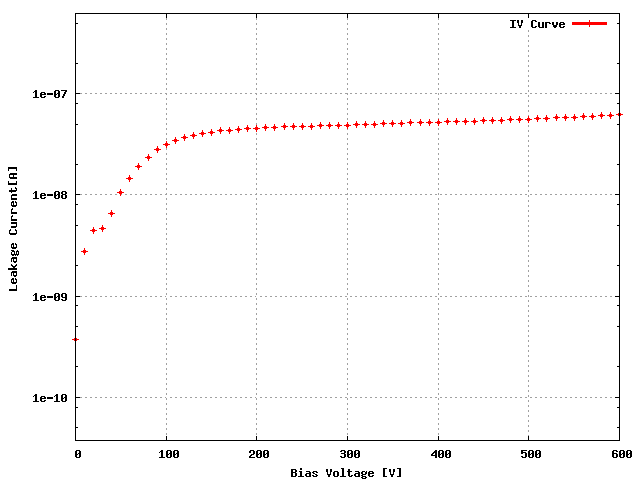

Sensor: S_1x5R_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W31_X44K5UT | 31C |
| ROC1 | W31_X44K5UT | 30D |
| ROC2 | W31_X44K5UT | 30A |
| ROC3 | W31_X44K5UT | 49D |
| ROC4 | W31_X44K5UT | 49C |
| Ibias_DAC, Ibias_DAC Data | 138 | 128 | 140 | 144 | 134 |
| Vana, VanaData | 145 | 115 | 135 | 120 | 134 |
| CalDelData and plots | 81 | 83 | 87 | 91 | 89 |
| VthrCompData and plots | 80 | 70 | 70 | 68 | 75 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 3:03 PM
