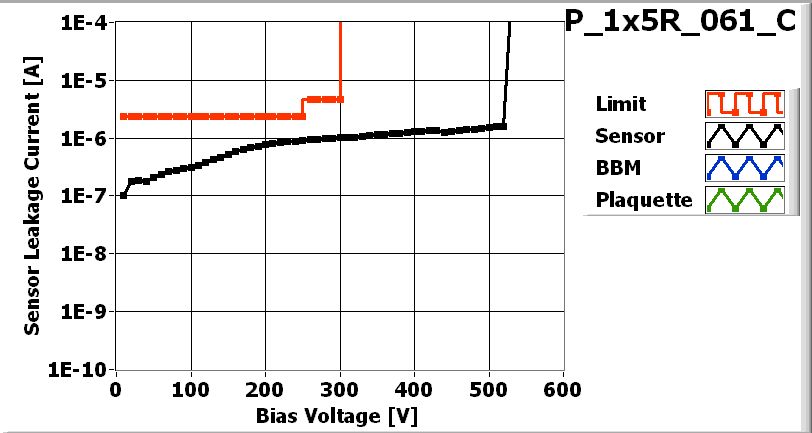

![[IMAGE] of](P_1x5R_061_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 530 V |
![[IMAGE] of](P_1x5R_061_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_061-1x5 |
| VHDI | 1x5R_212 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XI4K3GT | 05D |
| ROC1 | XI4K3GT | 06C |
| ROC2 | XI4K3GT | 06D |
| ROC3 | XI4K3GT | 03A |
| ROC4 | XI4K3GT | 03B |
Inspected by Arndt Kirk on date 2006-08-10
| LR_dev | 0.067 |
| LL_dev | 0.043 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-08-10 by Arndt Kirk
PLAQUETTE TESTED on 2006-08-11 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 144 | 136 | 142 | 144 | 149 | |
| Vana | 117 | 125 | 120 | 131 | 110 | |
| Cal_Del | 98 | 99 | 92 | 99 | 111 | |
| Vthrs_Comp | 73 | 71 | 72 | 73 | 76 | |
| Unbumped | 22 | 10 | 14 | 15 | 28 | |
| Dead | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 22 | 10 | 15 | 15 | 28 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

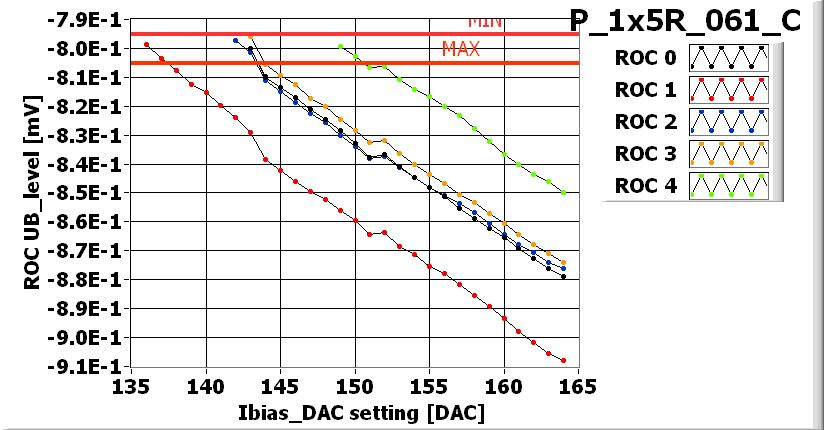

![[IMAGE] of](P_1x5R_061_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

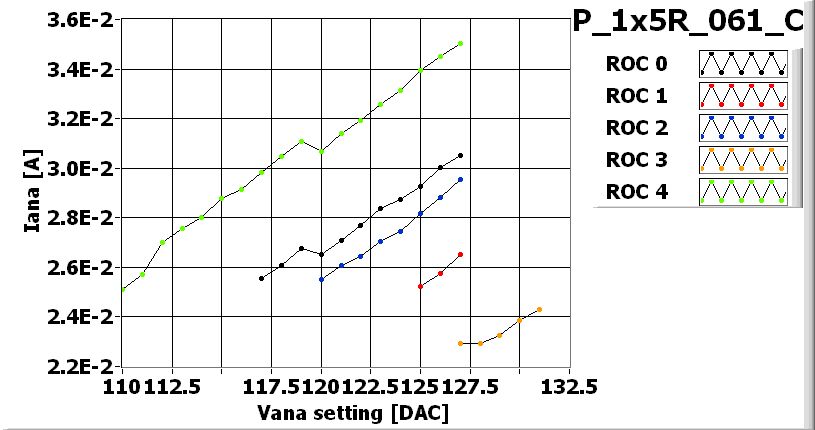

![[IMAGE] of](P_1x5R_061_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_061_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |

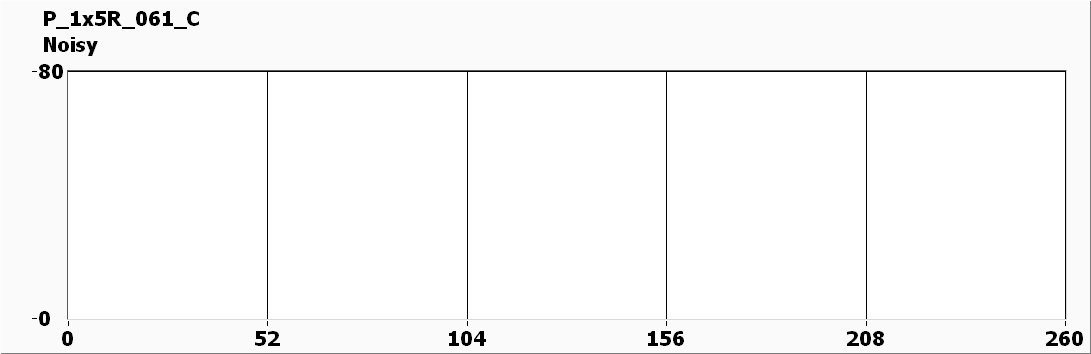

![[IMAGE] of](P_1x5R_061_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_061_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

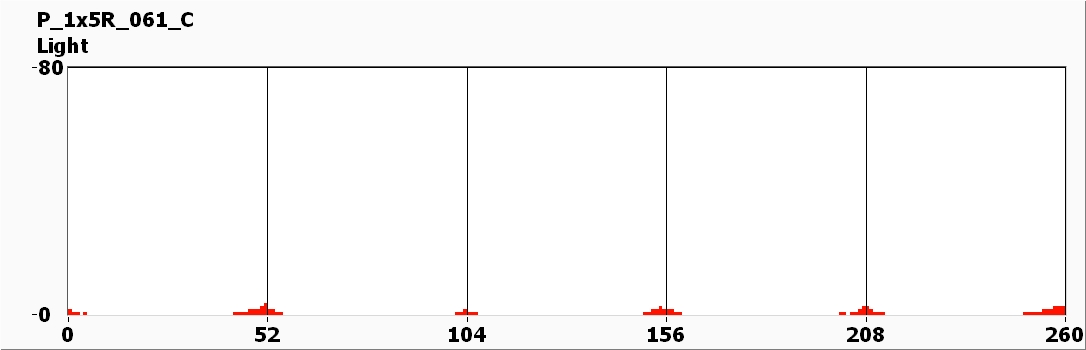

![[IMAGE] of](P_1x5R_061_Cno-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-08-14
