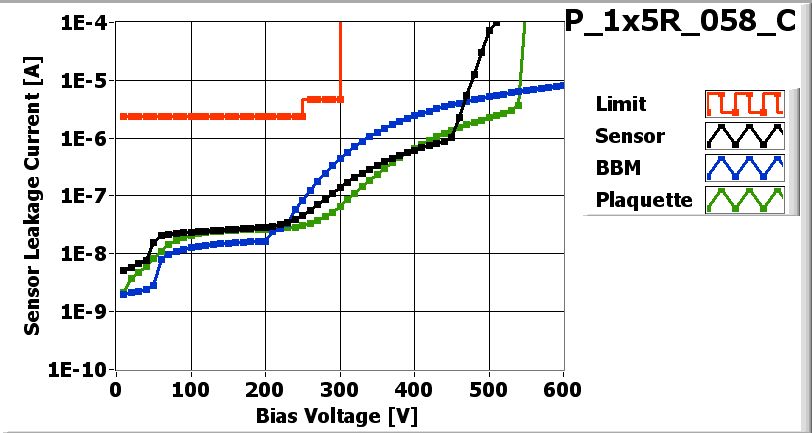

![[IMAGE] of](P_1x5R_058_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 550 V |

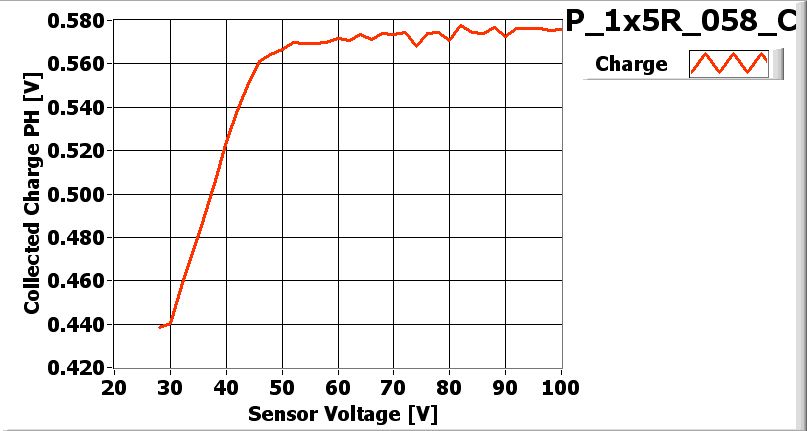

![[IMAGE] of](P_1x5R_058_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_058-1x5 |
| VHDI | 1x5R_293 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KZNG1JT | 22C |
| ROC1 | KZNG1JT | 32A |
| ROC2 | KZNG1JT | 32C |
| ROC3 | KZNG1JT | 22D |
| ROC4 | KZNG1JT | 32D |
Inspected by Lockwood Gale on date 6/28/2007
| LR_dev | 0.046 |
| LL_dev | 0.053 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. BBM stuck to membrane, vacuum pen cup came off BBM twice during removal from membrane box. No other assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/28/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/28/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/28/2007 by Kozak Brian
P_1x5R_058_Con 6/29/2007 11:05 AM
P_1x5R_058_Con 6/29/2007 11:05 AM
PLAQUETTE TESTED on 2007-06-29 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 154 | 170 | 170 | 154 | 148 | |
| Vana | 130 | 147 | 154 | 134 | 129 | |
| Cal_Del | 80 | 69 | 78 | 67 | 84 | |
| Vthrs_Comp | 78 | 90 | 85 | 90 | 79 | |
| Unbumped | 0 | 0 | 0 | 0 | 16 | |
| Dead | 0 | 0 | 0 | 0 | 4 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 20 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

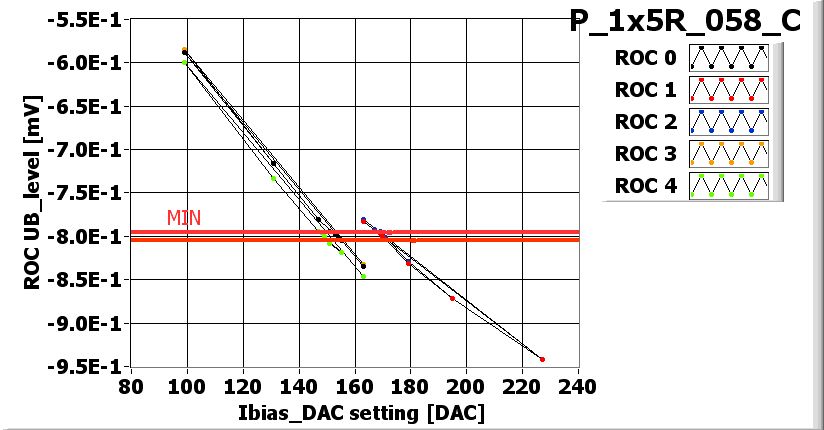

![[IMAGE] of](P_1x5R_058_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_058_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_058_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |

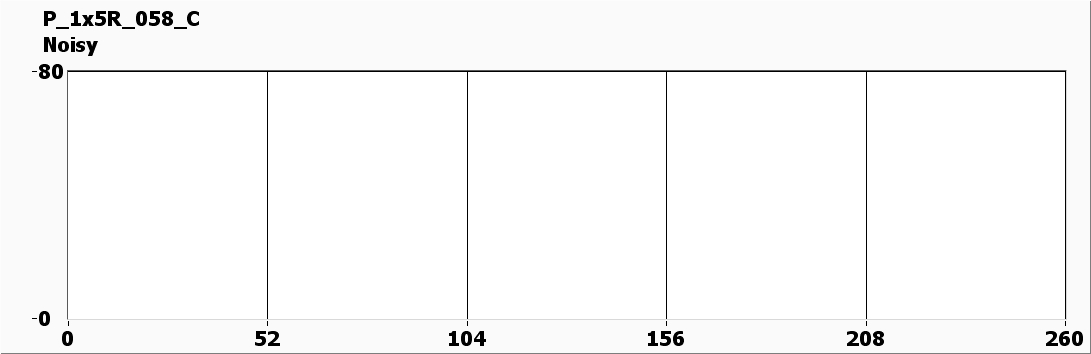

![[IMAGE] of](P_1x5R_058_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_058_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

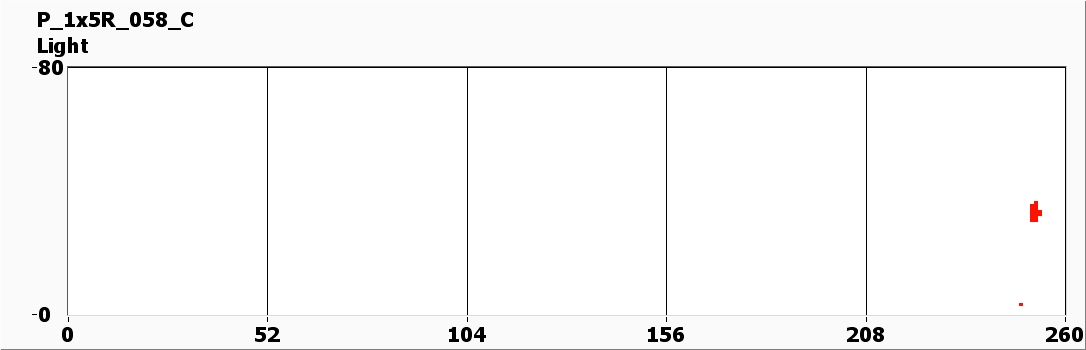

![[IMAGE] of](P_1x5R_058_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 135 | 110 | 95 | 110 | 125 |
| Vsf | 140 | 145 | 155 | 140 | 140 |
| VoffsetOp | 75 | 105 | 100 | 85 | 80 |
| VIbias_PH | 100 | 100 | 100 | 95 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5R_058_C-530-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_058_C-530-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x5R_058_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_058_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
