![[IMAGE] of](P_1x5R_053_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_053_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_053-1x5 |
| VHDI | 1x5R_321 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W52_DOLQC8T | 58B |
| ROC1 | W52_DOLQC8T | 58A |
| ROC2 | W52_DOLQC8T | 57D |
| ROC3 | W52_DOLQC8T | 56D |
| ROC4 | W52_DOLQC8T | 56C |
Inspected by Lockwood Gale on date 11/16/2007
| LR_dev | 0.040 |
| LL_dev | 0.036 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/16/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/16/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/16/2007 by Ozhan Koybasi
P_1x5R_053_Aon 11/19/2007 5:17 PM
P_1x5R_053_Aon 11/19/2007 5:17 PM
PLAQUETTE TESTED on 2007-11-19 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 162 | 148 | 150 | 174 | 160 | |
| Vana | 147 | 145 | 147 | 164 | 155 | |
| Cal_Del | 81 | 81 | 70 | 71 | 93 | |
| Vthrs_Comp | 85 | 83 | 93 | 90 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_053_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

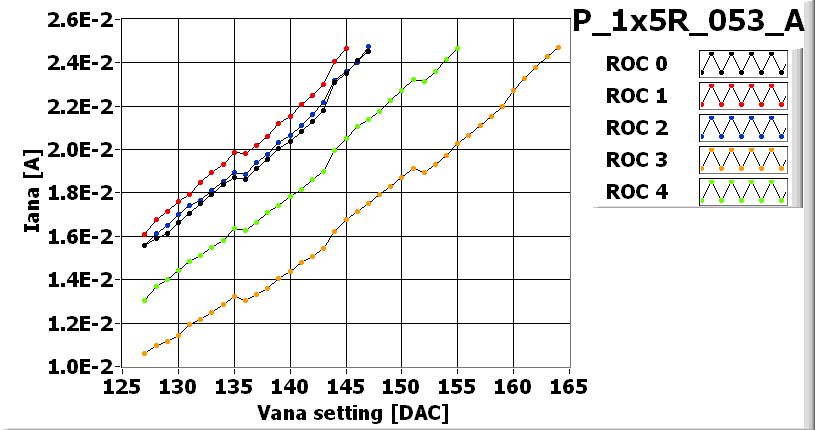

![[IMAGE] of](P_1x5R_053_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_053_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |

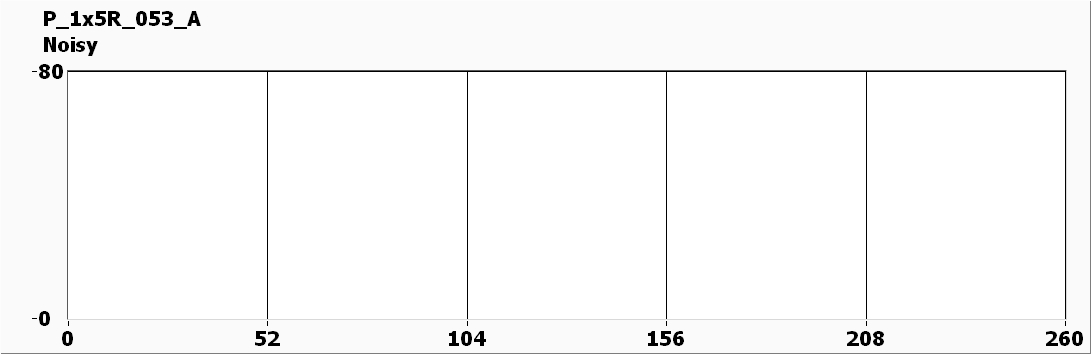

![[IMAGE] of](P_1x5R_053_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_053_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_053_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 105 | 95 | 95 |
| Vsf | 150 | 145 | 150 | 165 | 155 |
| VoffsetOp | 110 | 110 | 115 | 140 | 115 |
| VIbias_PH | 100 | 100 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5R_053_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_053_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x5R_053_A-200-noise.jpg)

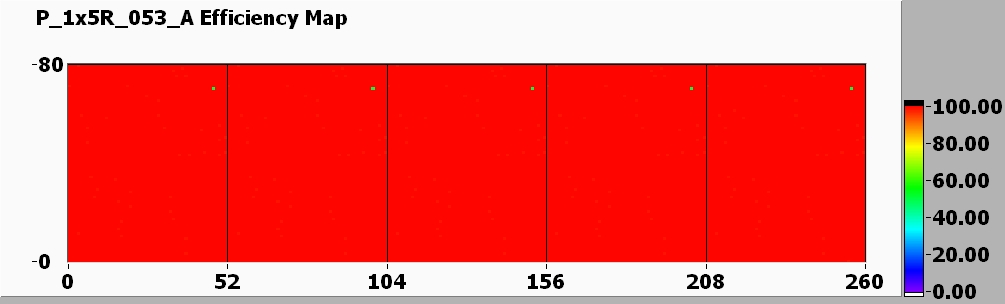

Efficiency MAP
![[IMAGE] of](P_1x5R_053_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
