P_1x5R_053

P_1x5R_053_A

Production testing

Date:11/19/2007

Operator: Ozhan Koybasi

start testing time:5:17 PM

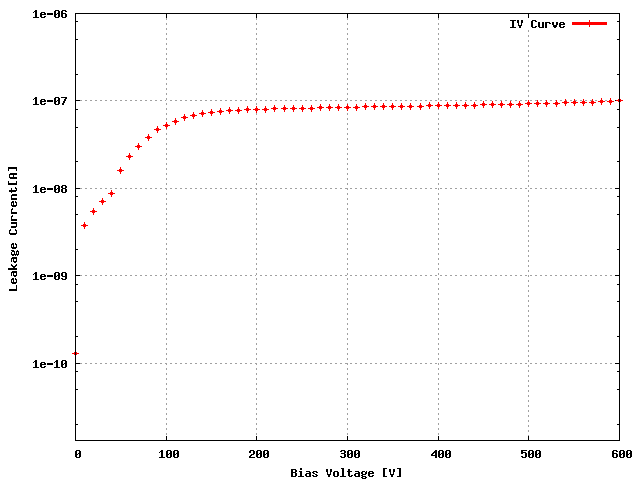

Sensor: S_1x5R_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W52_DOLQC8T 58B

ROC1 W52_DOLQC8T 58A

ROC2 W52_DOLQC8T 57D

ROC3 W52_DOLQC8T 56D

ROC4 W52_DOLQC8T 56C

ROC	ROC wafer	Label
ROC0	W52_DOLQC8T	58B
ROC1	W52_DOLQC8T	58A
ROC2	W52_DOLQC8T	57D
ROC3	W52_DOLQC8T	56D
ROC4	W52_DOLQC8T	56C

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 162 148 150 174 160

Vana, VanaData 147 145 147 164 155

CalDelData and plots 81 81 70 71 93

VthrCompData and plots 85 83 93 90 87

TestDdata ,TestD Plots 3 0 0 0 0

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	95	105	95	95
Vsf	150	145	150	165	155
VoffsetOp	110	110	115	140	115
VIbias_PH	100	100	100	100	100

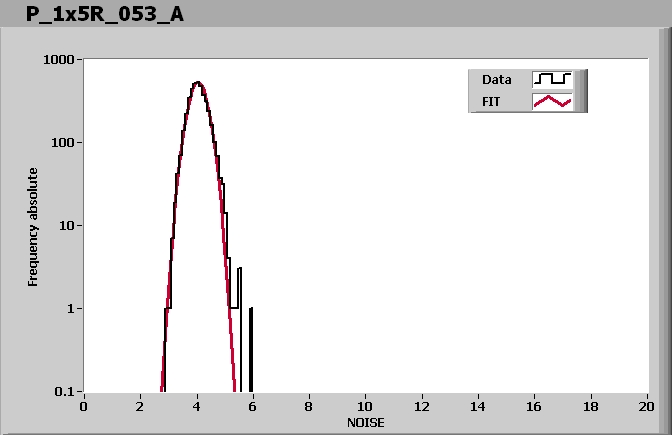

ROC0 NOISE			MEAN = 3.864721 SIGMA = 0.307260
ROC1 NOISE			MEAN = 4.042345 SIGMA = 0.310412
ROC2 NOISE			MEAN = 4.096856 SIGMA = 0.342262
ROC3 NOISE			MEAN = 3.718175 SIGMA = 0.285935
ROC4 NOISE			MEAN = 3.753122 SIGMA = 0.292881

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 5:44 PM

Ibias_DAC, Ibias_DAC Data	162	148	150	174	160
Vana, VanaData	147	145	147	164	155
CalDelData and plots	81	81	70	71	93
VthrCompData and plots	85	83	93	90	87
TestDdata ,TestD Plots	3	0	0	0	0
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
