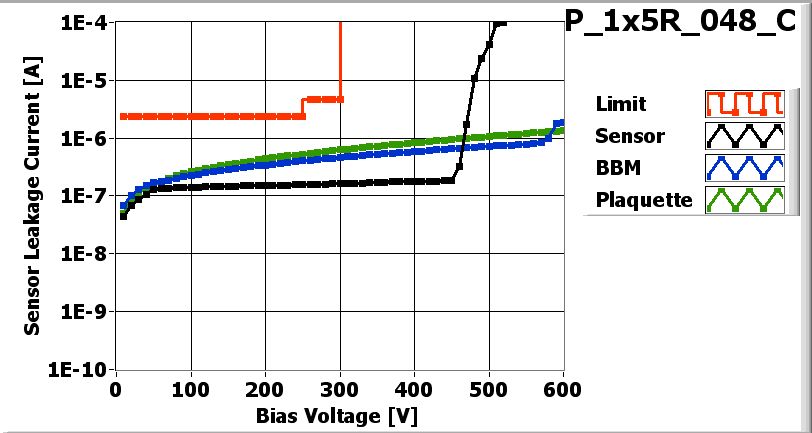

![[IMAGE] of](P_1x5R_048_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_048_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_048-1x5 |
| VHDI | 1x5R_263 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 28B |
| ROC1 | XG4KFCT | 27B |
| ROC2 | XG4KFCT | 27A |
| ROC3 | XG4KFCT | 26B |
| ROC4 | XG4KFCT | 26A |
Inspected by Arndt Kirk on date 2/22/2007
| LR_dev | 0.091 |
| LL_dev | 0.119 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 2/22/2007 by Arndt Kirk
PLAQUETTE encapsulated on 2/26/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 2/26/2007 by Arndt Kirk
P_1x5R_048_Con 2/28/2007 11:16 AM
P_1x5R_048_Con 2/28/2007 11:16 AM
PLAQUETTE TESTED on 2007-02-28 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 128 | 142 | 144 | 138 | 128 | |
| Vana | 127 | 130 | 144 | 135 | 133 | |
| Cal_Del | 99 | 82 | 83 | 85 | 94 | |
| Vthrs_Comp | 75 | 69 | 80 | 75 | 75 | |
| Unbumped | 3 | 0 | 0 | 0 | 2 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 0 | 0 | 0 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

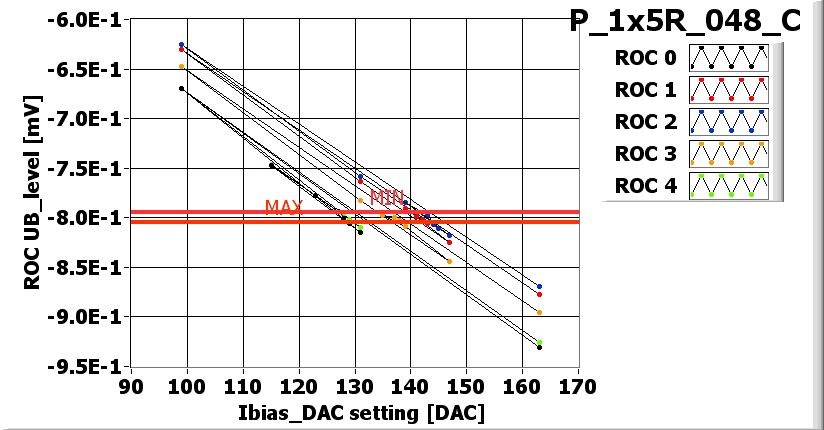

![[IMAGE] of](P_1x5R_048_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

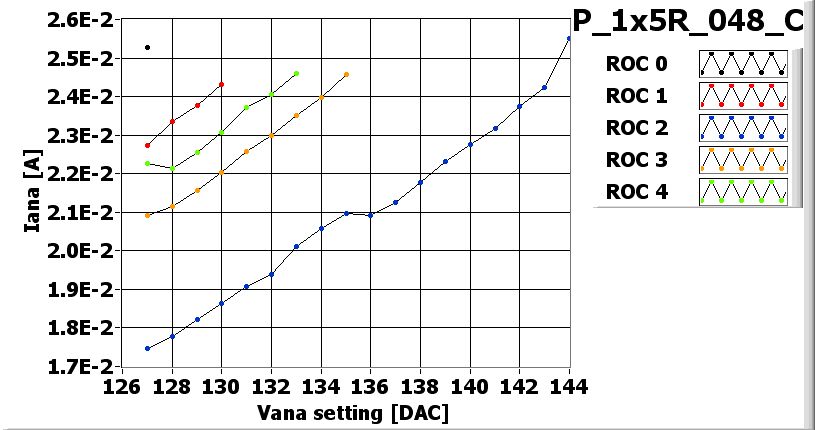

![[IMAGE] of](P_1x5R_048_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_048_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_048_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_048_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_048_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 135 | 120 | 105 | 135 | 120 |
| Vsf | 140 | 140 | 145 | 145 | 140 |
| VoffsetOp | 75 | 65 | 95 | 90 | 80 |
| VIbias_PH | 95 | 105 | 100 | 105 | 95 |

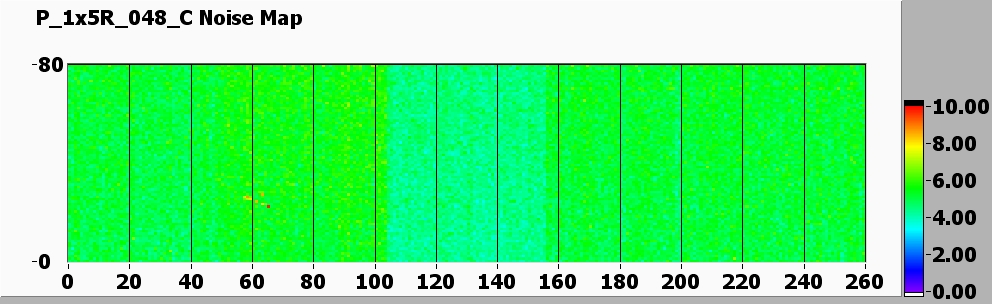

Noise MAP
![[IMAGE] of](P_1x5R_048_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_048_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
