P_1x5R_041_C

Parts committed by Bolla Gino on date 11/28/2006

PartID
BBMBBM_041-1x5
VHDI1x5R_223

ROCROC waferLabel
ROC0XF4K3JT15B
ROC1XF4K3JT16A
ROC2XF4K3JT23D
ROC3XF4K3JT17A
ROC4XF4K3JT17B

Inspected by Arndt Kirk on date 12/5/2006
LR_dev0.046
LL_dev0.041
FINAL COMMENT by Arndt KirkNo assembly problems. RTI BBM joined to VHDI with nominal pressure. All wirebonds OK, no deflection of BBM visible during wirebonding.

PLAQUETTE made READY for testing on 12/5/2006 by Arndt Kirk

PLAQUETTE TESTED on 2006-12-06 by Petra Merkel BEFORE hammering

PLAQUETTE TESTED on 2006-12-13 by Petra Merkel AFTER hammering

[IMAGE] of
IV_XML-File
Maximum Voltage 570 V
[IMAGE] of

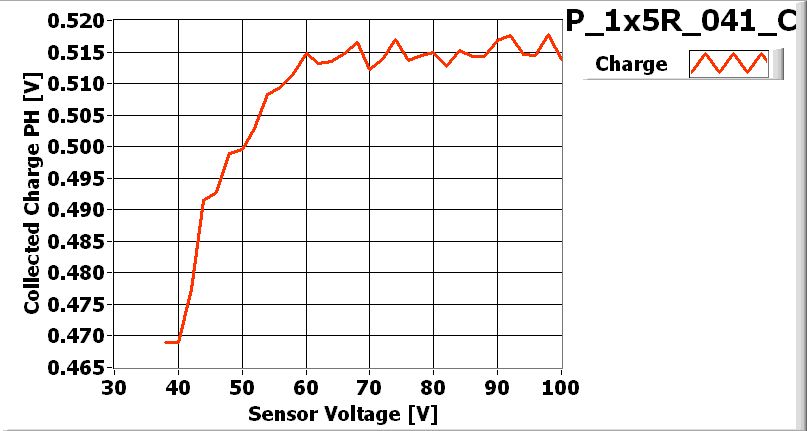

LASER_XML-File
Depletion Voltage 54 V
Operational Voltage 94 V

ROCROC0ROC1ROC2ROC3ROC4
Ibias_DAC128137123139137
Vana127135108133134
Cal_Del8174877788
Vthrs_Comp7079737966
Unbumped02215809
Dead00000
Noisy00000
Undecoded00000
Total BAD02215809

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

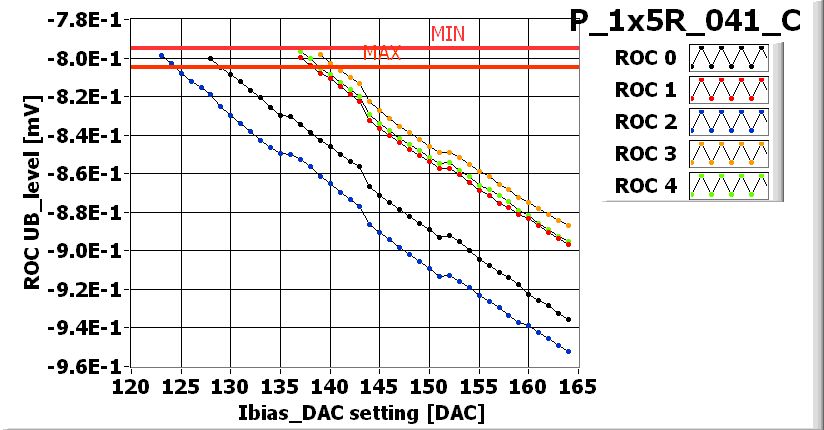

[IMAGE] of I_BIAS_DAC_XML-File

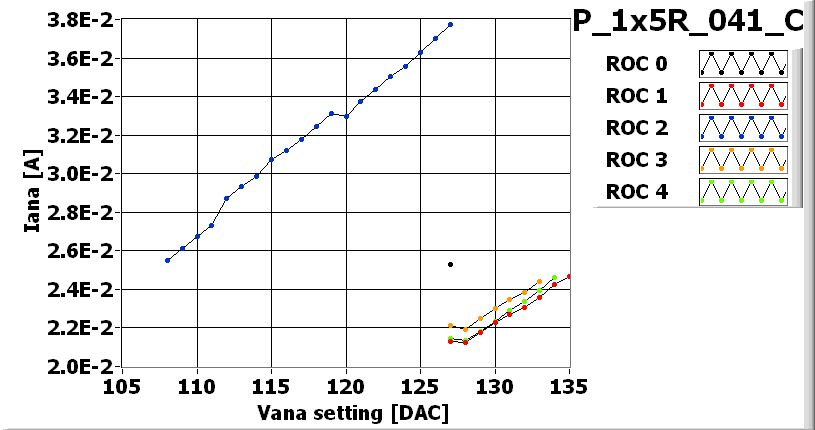

[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File

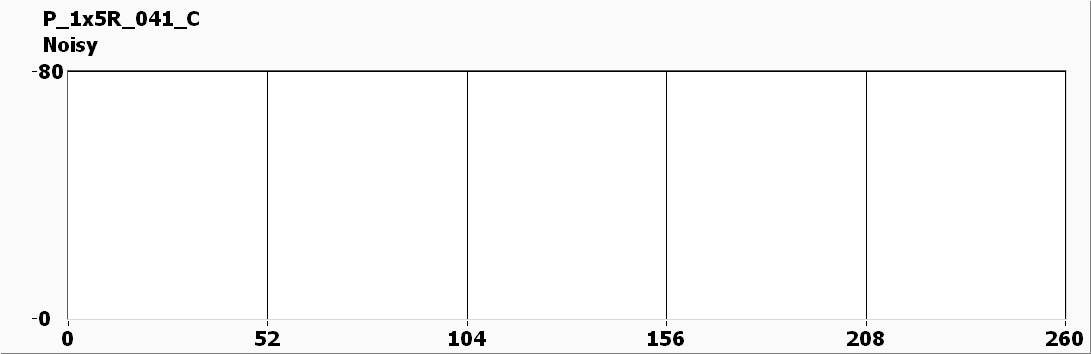

[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File

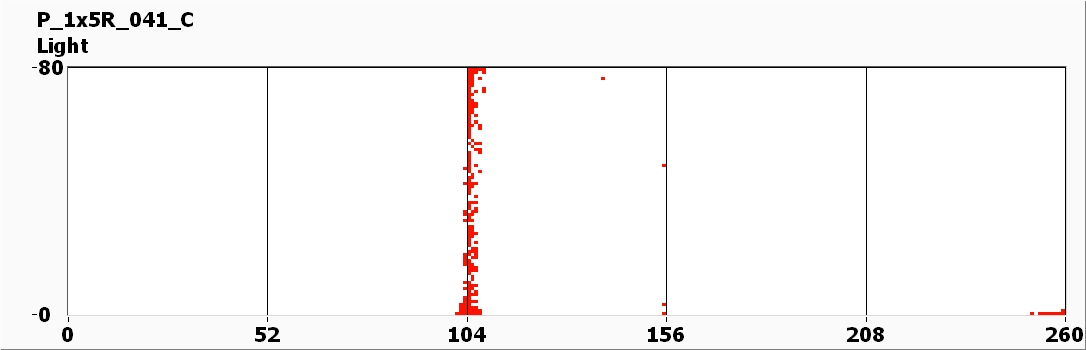

[IMAGE] of LIGHT_XML-File

PLAQUETTE READY FOR SHIPPING

PLAQUETTE encapsulated on 5/22/2007 by Perera Rajiv

PLAQUETTE made READY for testing on 5/22/2007 by Perera Rajiv

P_1x5R_041_C-7on 5/22/2007 4:26 PM

P_1x5R_041_C-7on 5/22/2007 4:26 PM AFTER POTTING

[IMAGE] of

BAD CHANNELS COMPARISON XML-files/NOW

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/10/00/00/00/0
ROC10/00/00/05/622/27
ROC20/00/00/10213/4158/159
ROC30/00/00/810/10/0
ROC40/00/00/09/99/9

Plaquette Ready for SHIPPING

Shipped on date 2007-05-24
