![[IMAGE] of](P_1x5R_035_A_IV.jpg)

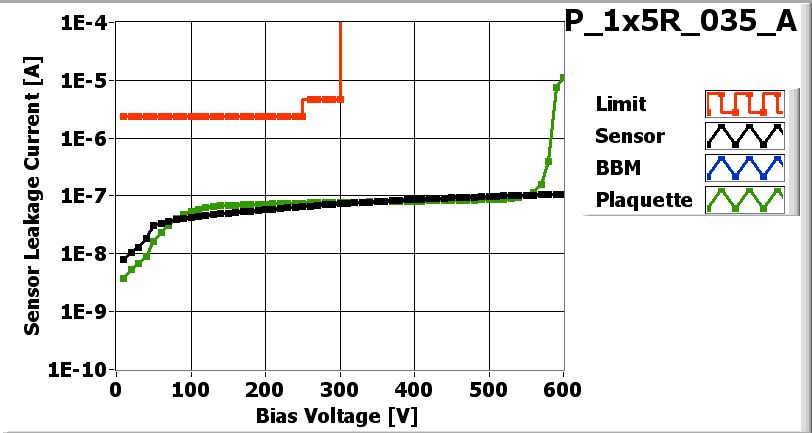

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_035_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_035-1x5 |
| VHDI | 1x5R_318 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W55_D3LQE4T | 40A |
| ROC1 | W55_D3LQE4T | 58D |
| ROC2 | W55_D3LQE4T | 58B |
| ROC3 | W55_D3LQE4T | 57D |
| ROC4 | W55_D3LQE4T | 57B |
Inspected by Lockwood Gale on date 11/13/2007
| LR_dev | 0.039 |
| LL_dev | 0.029 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/13/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/14/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/14/2007 by Ozhan Koybasi
P_1x5R_035_Aon 11/15/2007 9:49 PM
P_1x5R_035_Aon 11/15/2007 9:49 PM
PLAQUETTE TESTED on 2007-11-15 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 176 | 166 | 146 | 172 | 154 | |
| Vana | 156 | 160 | 148 | 143 | 148 | |
| Cal_Del | 84 | 86 | 74 | 95 | 87 | |
| Vthrs_Comp | 91 | 94 | 89 | 88 | 92 | |
| Unbumped | 0 | 0 | 1 | 0 | 1 | |
| Dead | 0 | 0 | 1 | 2 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 2 | 2 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_035_A_Ibias-dac.jpg) |

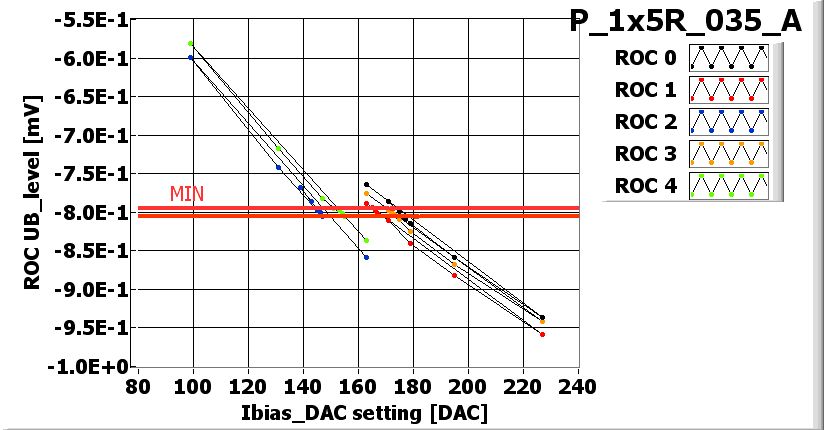

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_035_A_Vana.jpg) |

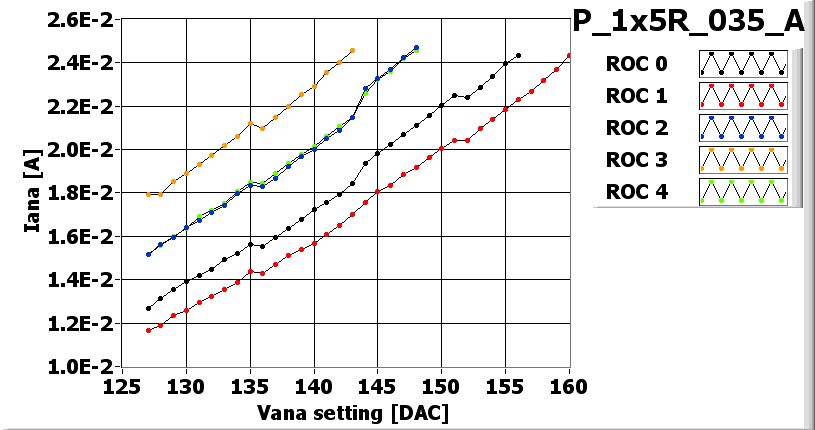

VANA_XML-File |
![[IMAGE] of](P_1x5R_035_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_035_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_035_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_035_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 105 | 105 | 100 | 95 |
| Vsf | 155 | 160 | 145 | 140 | 145 |
| VoffsetOp | 120 | 110 | 110 | 115 | 115 |
| VIbias_PH | 105 | 105 | 100 | 100 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5R_035_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_035_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x5R_035_A-200-noise.jpg)

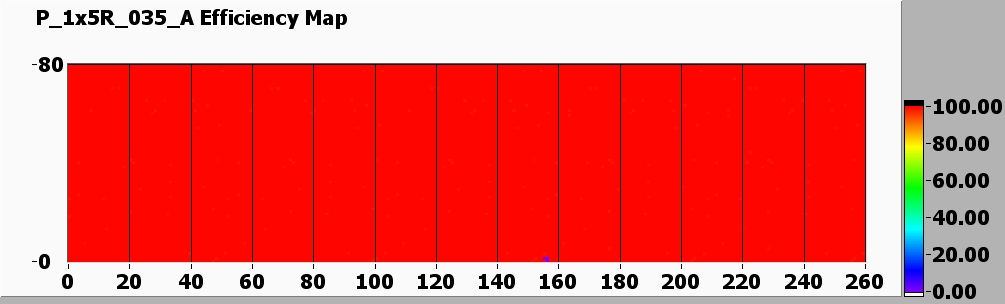

Efficiency MAP
![[IMAGE] of](P_1x5R_035_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
