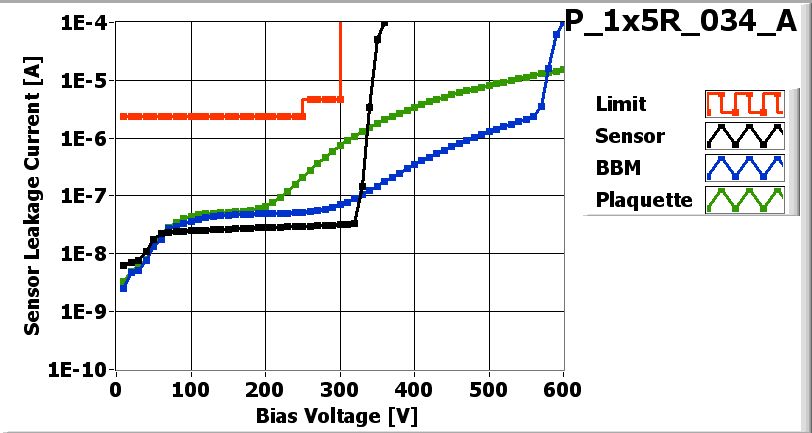

![[IMAGE] of](P_1x5R_034_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_034_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_034-1x5 |
| VHDI | 1x5R_285 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 04C |
| ROC1 | W35_XH4K3HT | 04B |
| ROC2 | W35_XH4K3HT | 04A |
| ROC3 | W35_XH4K3HT | 03D |
| ROC4 | W35_XH4K3HT | 03C |
Inspected by Lockwood Gale on date 5/18/2007
| LR_dev | 0.058 |
| LL_dev | 0.061 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before releasing joining force. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/18/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/18/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/18/2007 by Ortiz Jason
P_1x5R_034_Aon 5/22/2007 10:34 AM
P_1x5R_034_Aon 5/22/2007 10:34 AM
PLAQUETTE TESTED on 2007-05-22 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 140 | 146 | 140 | 154 | 160 | |
| Vana | 123 | 137 | 127 | 131 | 127 | |
| Cal_Del | 96 | 86 | 87 | 89 | 88 | |
| Vthrs_Comp | 66 | 81 | 68 | 75 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

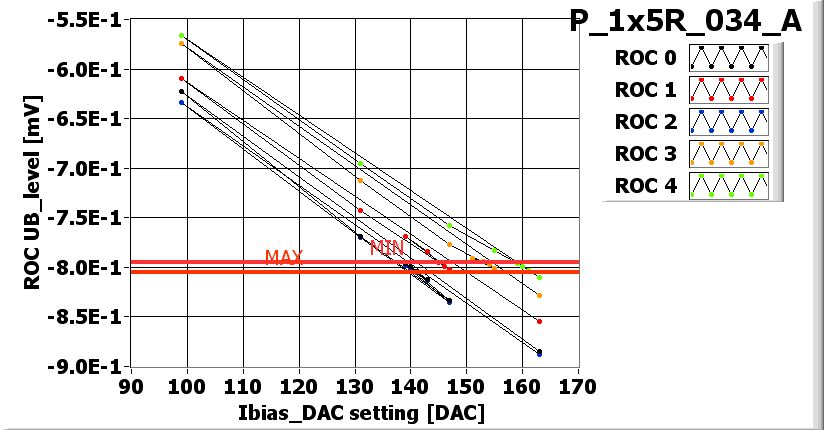

![[IMAGE] of](P_1x5R_034_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_034_A_Vana.jpg) |
VANA_XML-File |

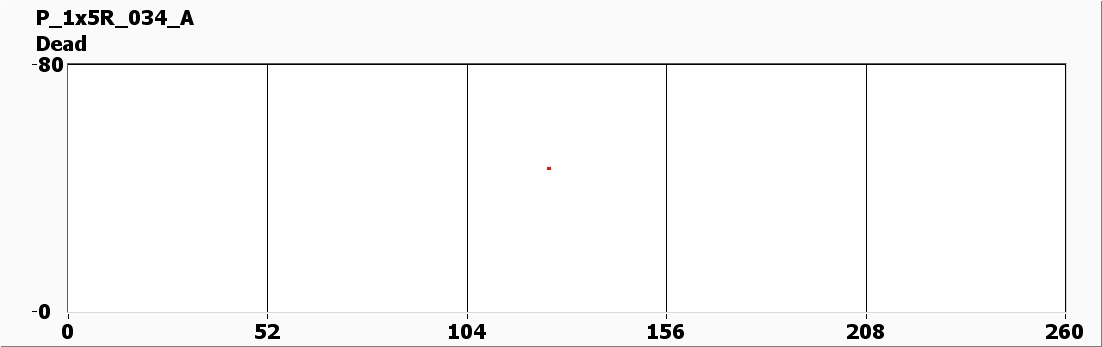

![[IMAGE] of](P_1x5R_034_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_034_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_034_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_034_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 110 | 130 | 110 | 130 |
| Vsf | 130 | 140 | 135 | 140 | 135 |
| VoffsetOp | 45 | 85 | 70 | 75 | 65 |
| VIbias_PH | 105 | 100 | 105 | 100 | 105 |

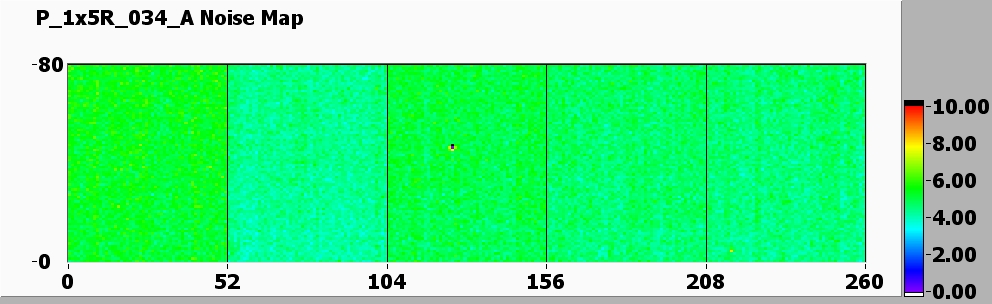

Noise MAP at VMAX
![[IMAGE] of](P_1x5R_034_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_034_A-580-efficiency.jpg)

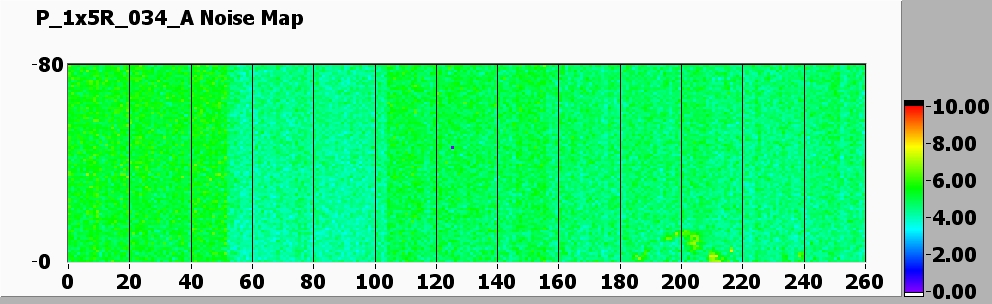

Noise MAP at -200 V
![[IMAGE] of](P_1x5R_034_A-200-noise.jpg)

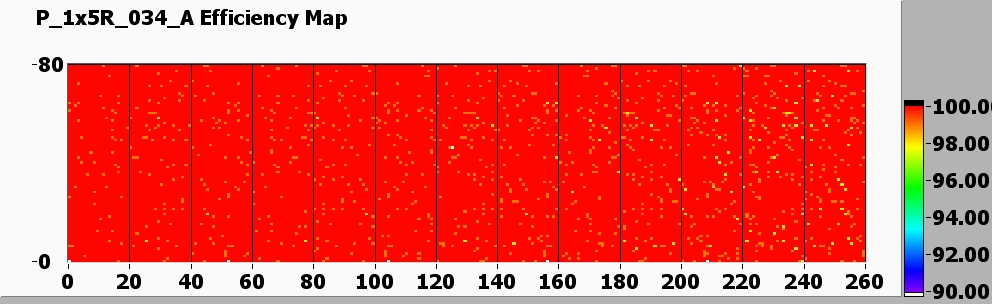

Efficiency MAP
![[IMAGE] of](P_1x5R_034_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
