P_1x5R_034

P_1x5R_034_A

Production testing

Date:5/22/2007

Operator: Emily Grace

start testing time:10:34 AM

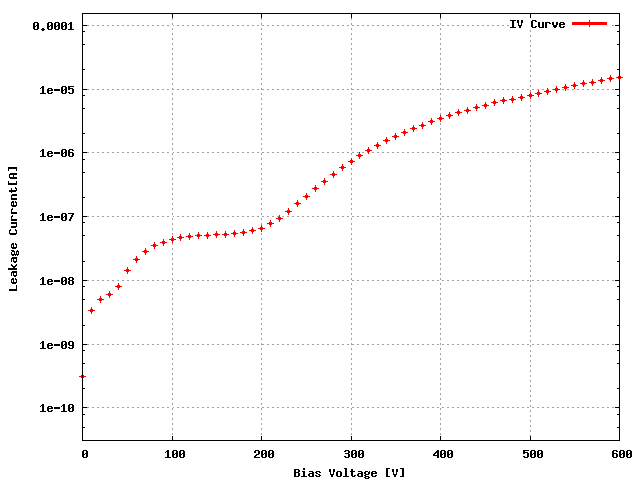

Sensor: S_1x5R_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W35_XH4K3HT 04C

ROC1 W35_XH4K3HT 04B

ROC2 W35_XH4K3HT 04A

ROC3 W35_XH4K3HT 03D

ROC4 W35_XH4K3HT 03C

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	04C
ROC1	W35_XH4K3HT	04B
ROC2	W35_XH4K3HT	04A
ROC3	W35_XH4K3HT	03D
ROC4	W35_XH4K3HT	03C

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 140 146 140 154 160

Vana, VanaData 123 137 127 131 127

CalDelData and plots 96 86 87 89 88

VthrCompData and plots 66 81 68 75 77

TestDdata ,TestD Plots 0 0 1 0 2

LightData ,Light Plots 0 0 0 0 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	130	110	130	110	130
Vsf	130	140	135	140	135
VoffsetOp	45	85	70	75	65
VIbias_PH	105	100	105	100	105

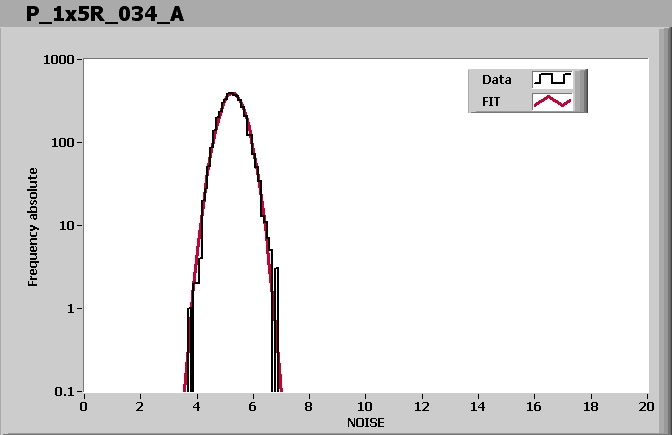

ROC0 NOISE			MEAN = 5.266795 SIGMA = 0.422535
ROC1 NOISE			MEAN = 4.295232 SIGMA = 0.316339
ROC2 NOISE			MEAN = 4.946716 SIGMA = 0.396123
ROC3 NOISE			MEAN = 4.642451 SIGMA = 0.360509
ROC4 NOISE			MEAN = 4.525808 SIGMA = 0.365931

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:57 AM

Ibias_DAC, Ibias_DAC Data	140	146	140	154	160
Vana, VanaData	123	137	127	131	127
CalDelData and plots	96	86	87	89	88
VthrCompData and plots	66	81	68	75	77
TestDdata ,TestD Plots	0	0	1	0	2
LightData ,Light Plots	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
