![[IMAGE] of](P_1x5R_024_C_IV.jpg)

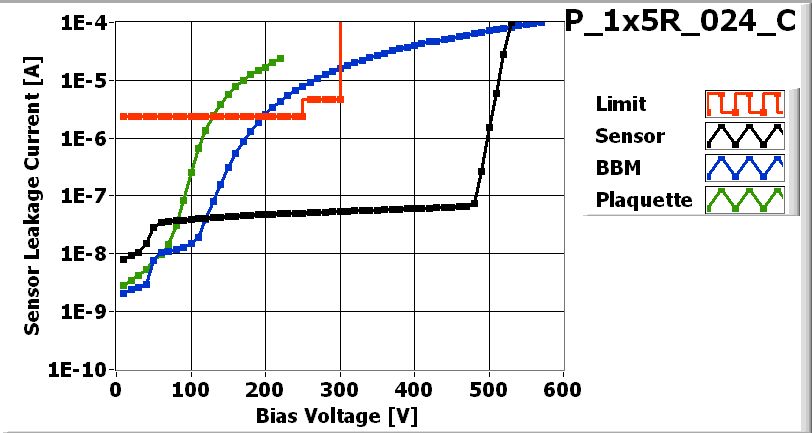

| IV_XML-File |
| Maximum Voltage 220 V |
![[IMAGE] of](P_1x5R_024_C_LASER.jpg)

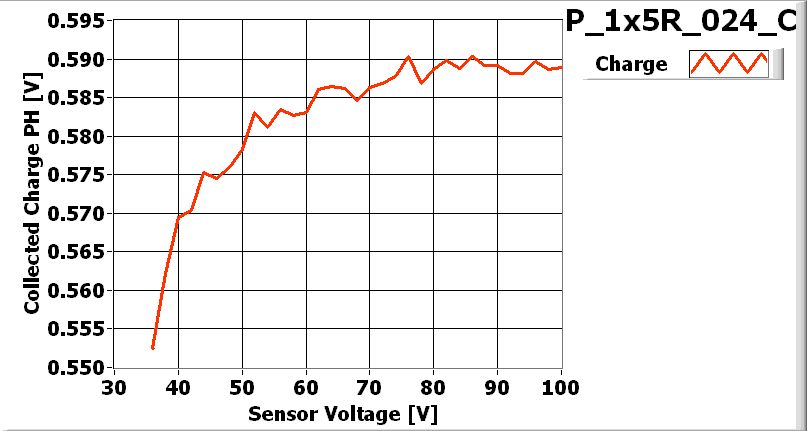

| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 4/24/2007
| Part | ID |
|---|---|
| BBM | BBM_024-1x5 |
| VHDI | 1x5R_278 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 16C |
| ROC1 | DWLQFTT | 17D |
| ROC2 | DWLQFTT | 13B |
| ROC3 | DWLQFTT | 15C |
| ROC4 | DWLQFTT | 15A |
Inspected by Lockwood Gale on date 5/2/2007
| LR_dev | 0.051 |
| LL_dev | 0.044 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/2/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/4/2007 by Ozhan Koybasi
P_1x5R_024_Con 5/7/2007 2:02 PM
P_1x5R_024_Con 5/7/2007 2:02 PM
P_1x5R_024_C-1on 5/8/2007 10:21 PM
P_1x5R_024_C-1on 5/8/2007 10:21 PM
PLAQUETTE TESTED on 2007-05-08 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 138 | 142 | 136 | 140 | 154 | |
| Vana | 143 | 155 | 155 | 157 | 166 | |
| Cal_Del | 85 | 74 | 77 | 90 | 73 | |
| Vthrs_Comp | 92 | 91 | 89 | 89 | 87 | |
| Unbumped | 0 | 0 | 0 | 1 | 0 | |
| Dead | 0 | 1 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_024_C_Ibias-dac.jpg) |

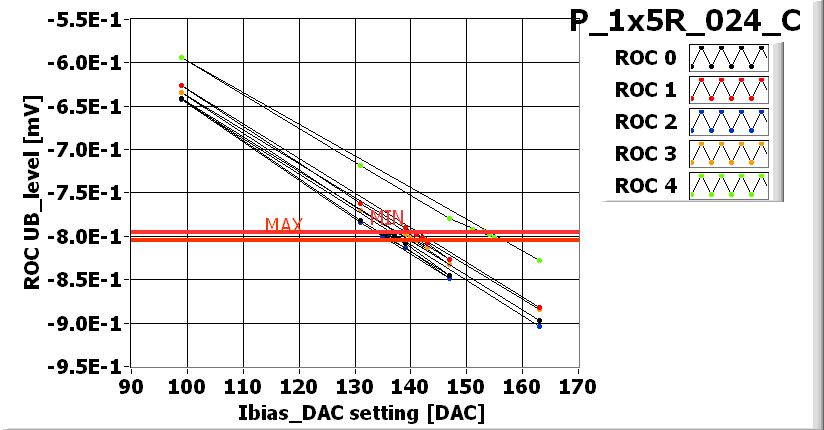

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_024_C_Vana.jpg) |

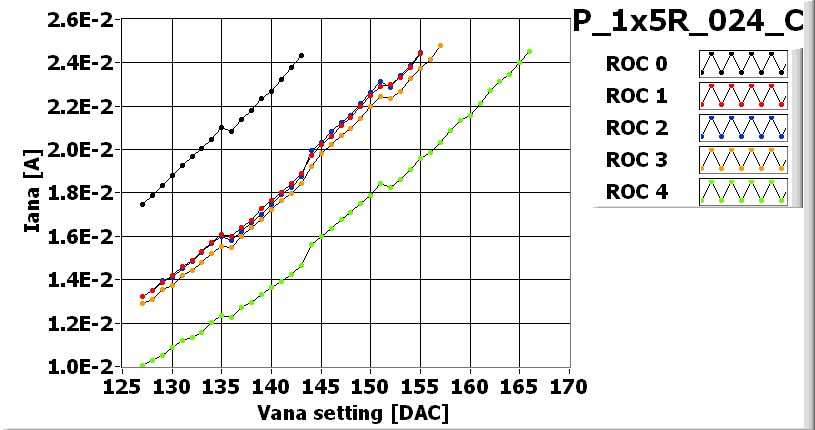

VANA_XML-File |
![[IMAGE] of](P_1x5R_024_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_024_CNoisy-Pixel-Alive.jpg){kind=tracking} |

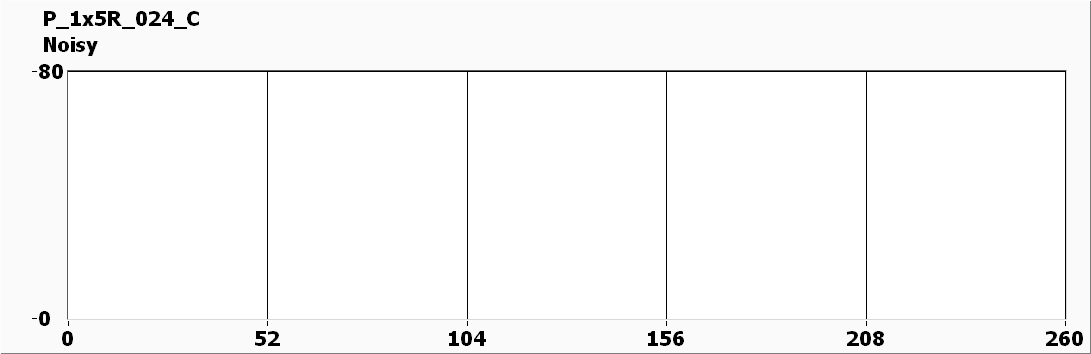

NOISY_XML-File |
![[IMAGE] of](P_1x5R_024_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_024_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 100 | 100 | 95 | 100 |
| Vsf | 140 | 150 | 150 | 155 | 160 |
| VoffsetOp | 115 | 120 | 115 | 115 | 220 |
| VIbias_PH | 105 | 95 | 95 | 105 | 100 |
Noise MAP
![[IMAGE] of](P_1x5R_024_C-1-200-noise.jpg)

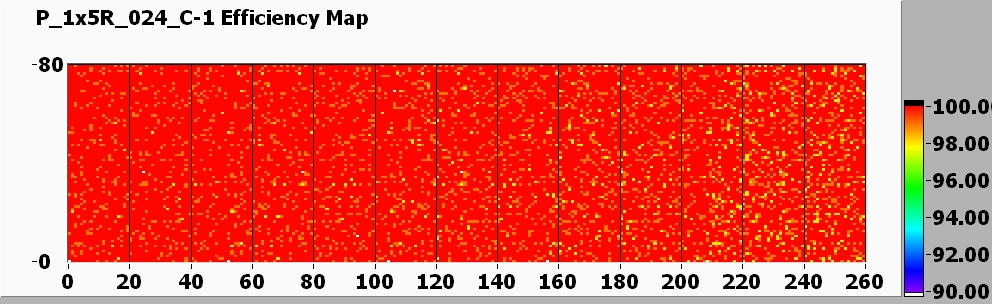

Efficiency MAP
![[IMAGE] of](P_1x5R_024_C-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
