![[IMAGE] of](P_1x5R_016_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_016_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Arndt Kirk on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_016-1x5 |
| VHDI | 1x5R_282 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 48D |
| ROC1 | W49_D1LQG5T | 48C |
| ROC2 | W49_D1LQG5T | 48A |
| ROC3 | W49_D1LQG5T | 47D |
| ROC4 | W49_D1LQG5T | 47A |
Inspected by Arndt Kirk on date 5/8/2007
| LR_dev | 0.032 |
| LL_dev | 0.033 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 5/8/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/8/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/8/2007 by Ortiz Jason
P_1x5R_016_Aon 5/9/2007 10:24 AM
P_1x5R_016_Aon 5/9/2007 10:24 AM
PLAQUETTE TESTED on 2007-05-09 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 150 | 138 | 134 | 142 | 132 | |
| Vana | 147 | 145 | 146 | 149 | 144 | |
| Cal_Del | 72 | 89 | 102 | 78 | 89 | |
| Vthrs_Comp | 90 | 84 | 79 | 89 | 83 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 3 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 3 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

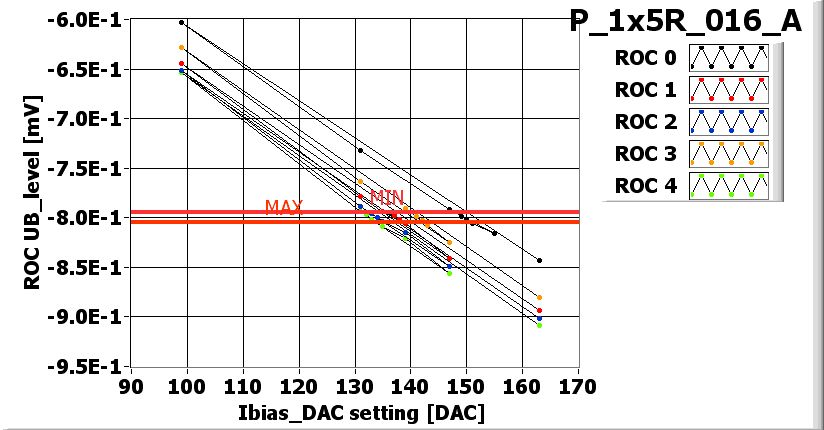

![[IMAGE] of](P_1x5R_016_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_016_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_016_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5R_016_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_016_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_016_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 90 | 95 | 95 | 95 |
| Vsf | 150 | 145 | 150 | 155 | 145 |
| VoffsetOp | 120 | 90 | 110 | 120 | 95 |
| VIbias_PH | 100 | 105 | 100 | 100 | 95 |

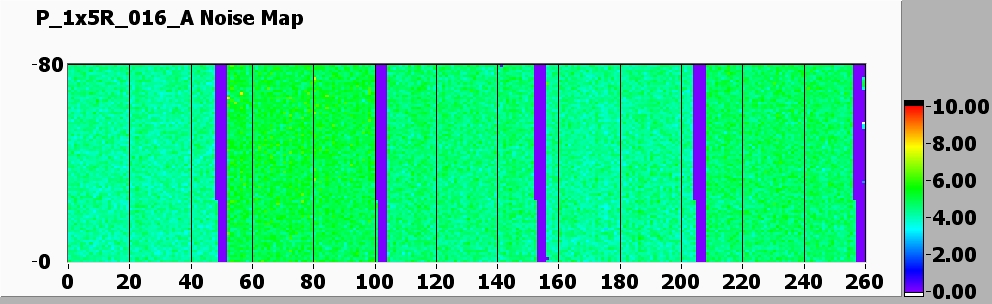

Noise MAP
![[IMAGE] of](P_1x5R_016_A-580-noise.jpg)

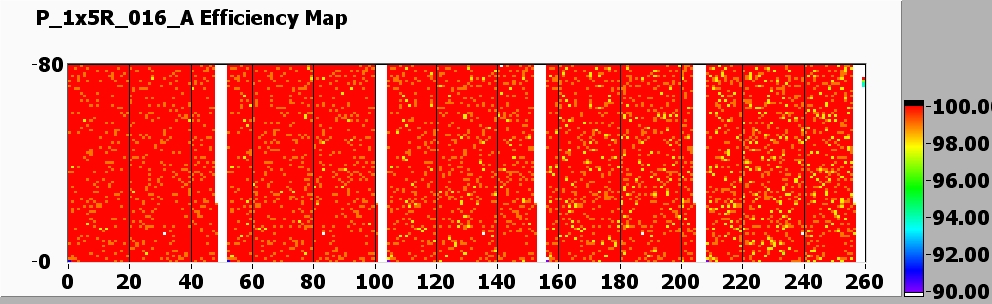

Efficiency MAP
![[IMAGE] of](P_1x5R_016_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
