P_1x5R_016

P_1x5R_016_A

Production testing

Date:5/9/2007

Operator: Petra Merkel

start testing time:10:24 AM

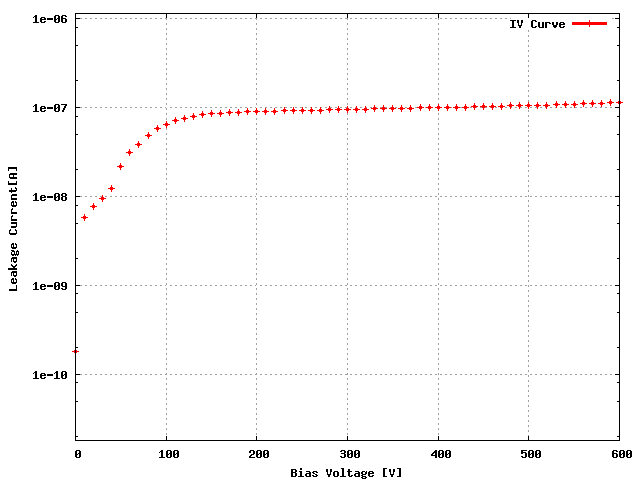

Sensor: S_1x5R_01, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W49_D1LQG5T 48D

ROC1 W49_D1LQG5T 48C

ROC2 W49_D1LQG5T 48A

ROC3 W49_D1LQG5T 47D

ROC4 W49_D1LQG5T 47A

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	48D
ROC1	W49_D1LQG5T	48C
ROC2	W49_D1LQG5T	48A
ROC3	W49_D1LQG5T	47D
ROC4	W49_D1LQG5T	47A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 150 138 134 142 132

Vana, VanaData 147 145 146 149 144

CalDelData and plots 72 89 102 78 89

VthrCompData and plots 90 84 79 89 83

TestDdata ,TestD Plots 0 0 3 1 0

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

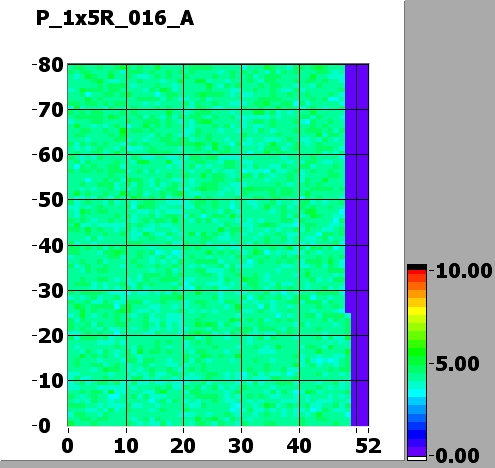

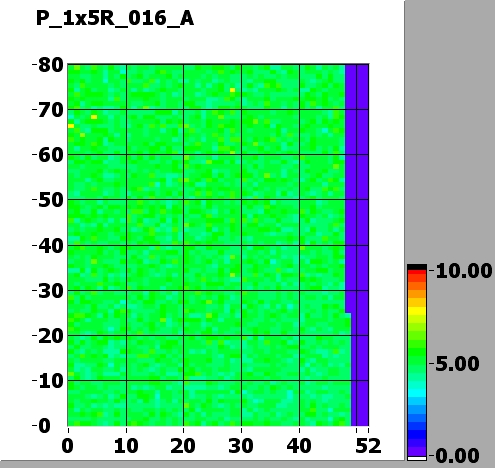

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	90	95	95	95
Vsf	150	145	150	155	145
VoffsetOp	120	90	110	120	95
VIbias_PH	100	105	100	100	95

ROC0 NOISE			MEAN = -4860.929260 SIGMA = 215560.216436

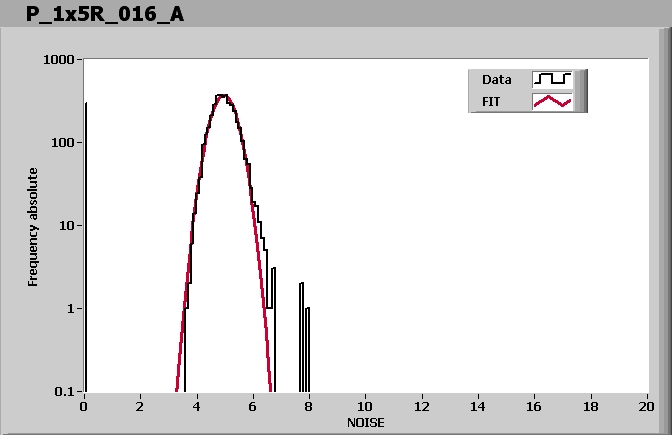

ROC1 NOISE			MEAN = 4.957142 SIGMA = 0.410922
ROC2 NOISE			MEAN = 4.514750 SIGMA = 0.354522

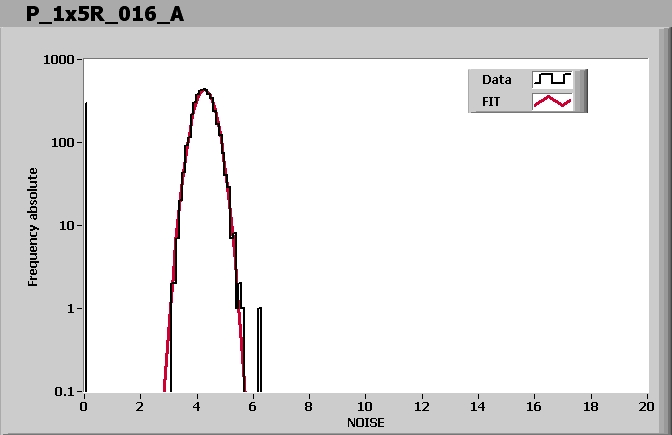

ROC3 NOISE			MEAN = 4.270388 SIGMA = 0.349553

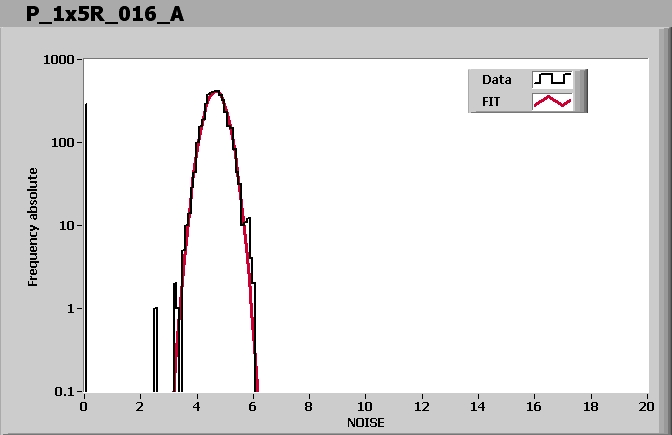

ROC4 NOISE			MEAN = 4.670484 SIGMA = 0.366276

Comment (if any): good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:43 AM

Ibias_DAC, Ibias_DAC Data	150	138	134	142	132
Vana, VanaData	147	145	146	149	144
CalDelData and plots	72	89	102	78	89
VthrCompData and plots	90	84	79	89	83
TestDdata ,TestD Plots	0	0	3	1	0
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
