P_1x5R_014_C

Parts committed by Bolla Gino on date 2/5/2007

PartID
BBMBBM_014-1x5
VHDI1x5R_250

ROCROC waferLabel
ROC0XE4K3KT35D
ROC1XE4K3KT36D
ROC2XE4K3KT38C
ROC3XE4K3KT34C
ROC4XE4K3KT26A

Inspected by Arndt Kirk on date 2/8/2007
LR_dev0.112
LL_dev0.133
FINAL COMMENT by Arndt KirkNo assembly problem. No wirebond problem.

PLAQUETTE made READY for testing on 2/8/2007 by Arndt Kirk

P_1x5R_014_Con 2/8/2007 4:16 PM

P_1x5R_014_Con 2/8/2007 4:16 PM

PLAQUETTE TESTED on 2007-02-08 by Isaac Childres

[IMAGE] of

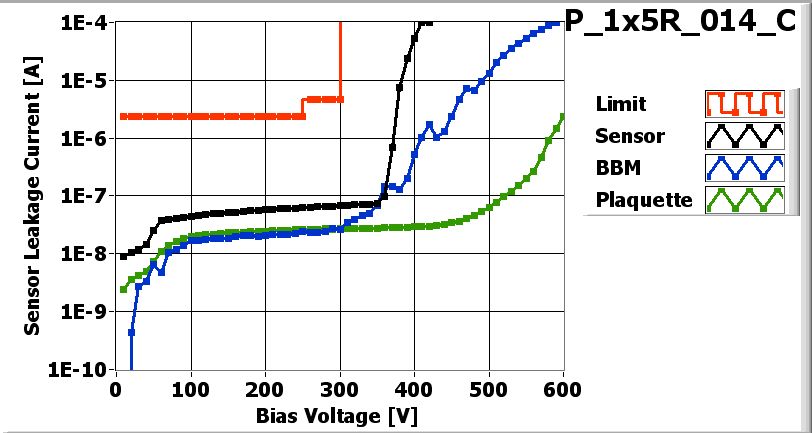

IV_XML-File
Maximum Voltage 600 V
[IMAGE] of

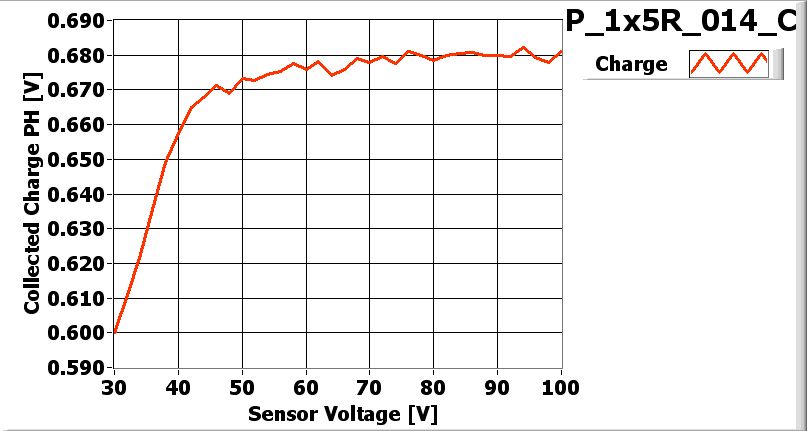

LASER_XML-File
Depletion Voltage 46 V
Operational Voltage 86 V

ROCROC0ROC1ROC2ROC3ROC4
Ibias_DAC124128128132132
Vana124127116125141
Cal_Del9382978479
Vthrs_Comp6373587481
Unbumped10000
Dead01000
Noisy00000
Undecoded02000
Total BAD13000

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

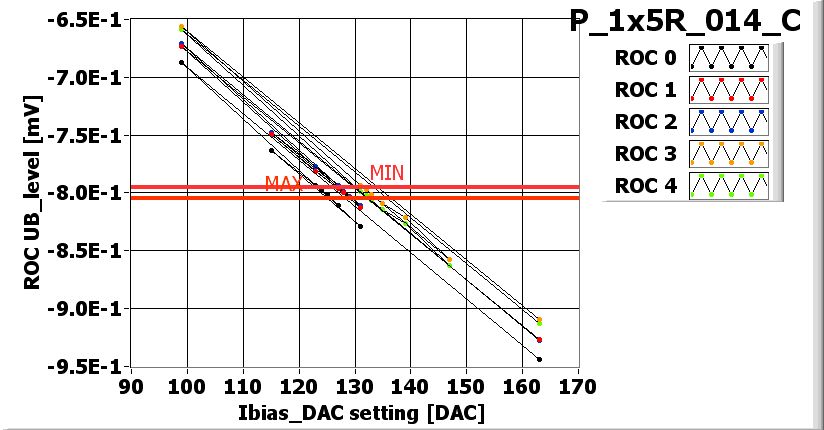

[IMAGE] of I_BIAS_DAC_XML-File

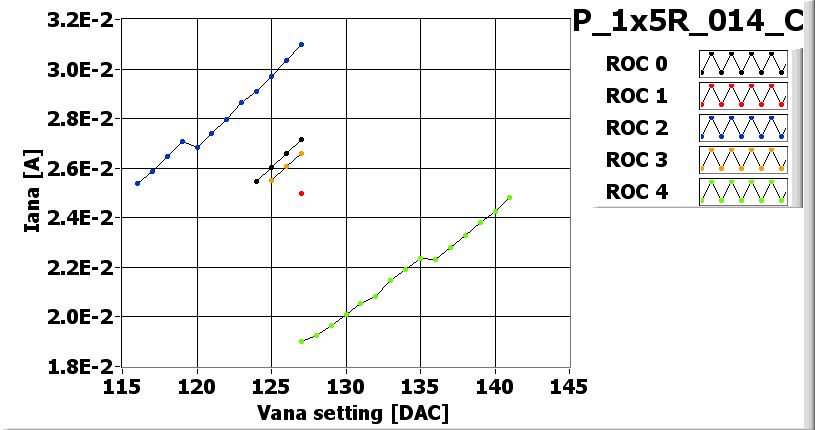

[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

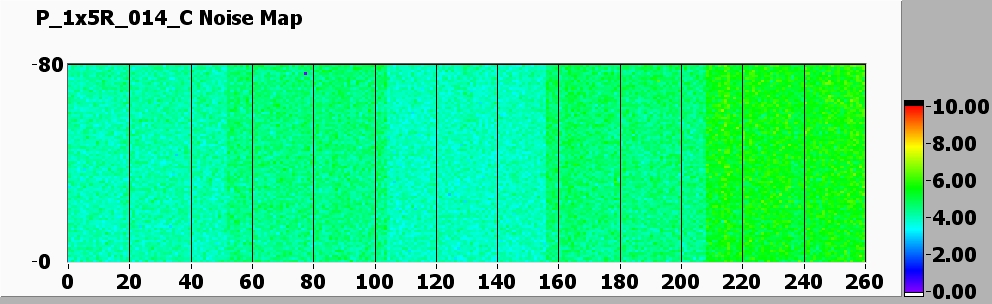

Noise MAP

[IMAGE] of

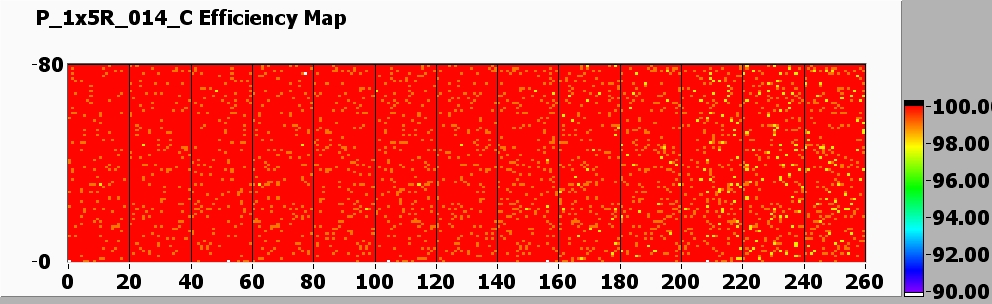

Efficiency MAP

[IMAGE] of

ROC0 NOISE[IMAGE] of [IMAGE] of MEAN = 4.044839

SIGMA = 0.301852

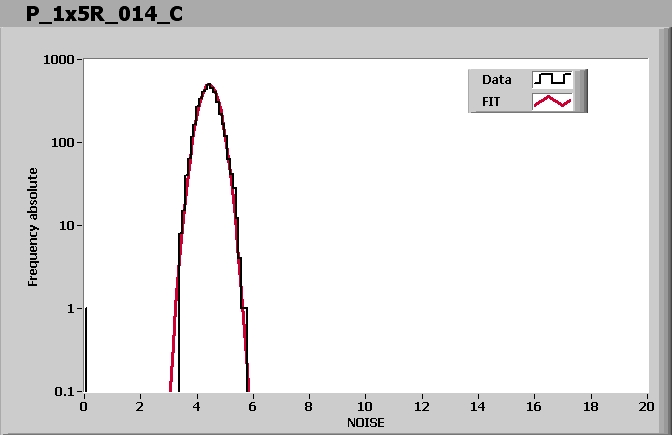

ROC1 NOISE[IMAGE] of [IMAGE] of MEAN = 4.436643

SIGMA = 0.337981

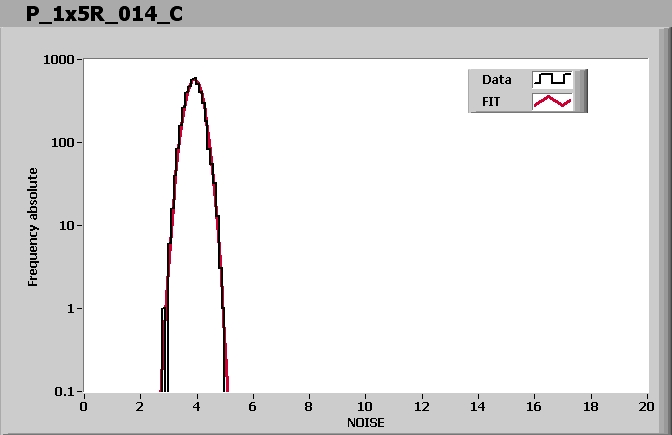

ROC2 NOISE[IMAGE] of [IMAGE] of MEAN = 3.909895

SIGMA = 0.284882

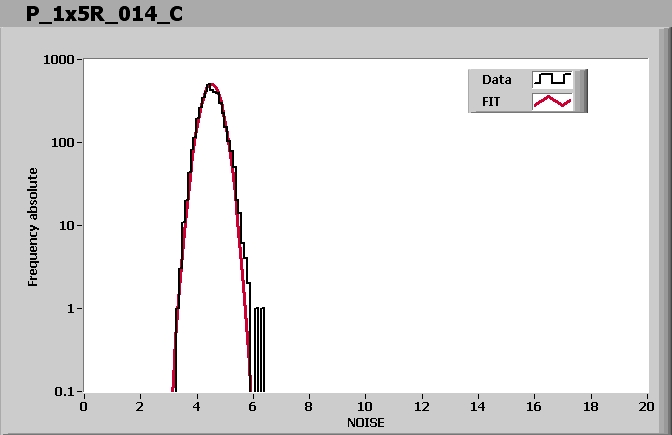

ROC3 NOISE[IMAGE] of [IMAGE] of MEAN = 4.519043

SIGMA = 0.337403

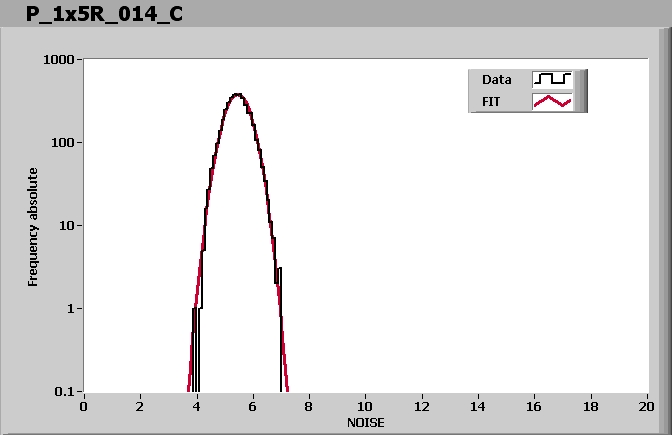

ROC4 NOISE[IMAGE] of [IMAGE] of MEAN = 5.449555

SIGMA = 0.434824

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/12/2007 by Ozhan Koybasi

P_1x5R_014_C-1on 2/12/2007 1:51 PM

P_1x5R_014_C-1on 2/12/2007 1:51 PM AFTER POTTING

[IMAGE] of

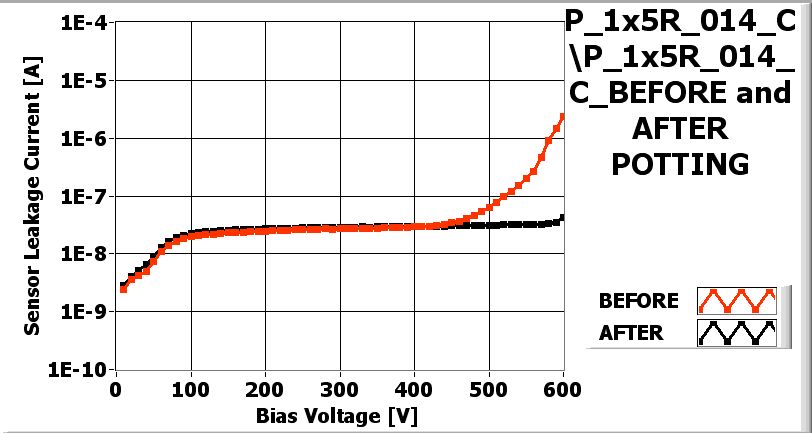

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/00/01/1
ROC11/10/02/20/00/0
ROC20/00/00/02/10/0
ROC30/00/00/00/00/0
ROC40/00/00/00/00/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-16

Plaquette assigned to panel P4L_025
