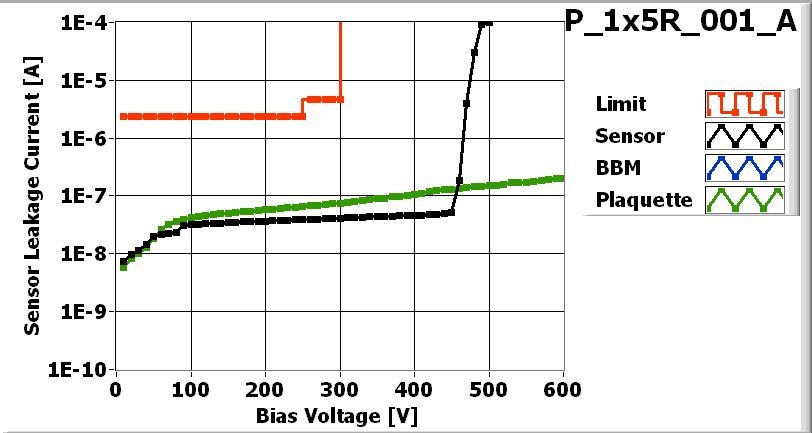

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5R_001_A_LASER.jpg)

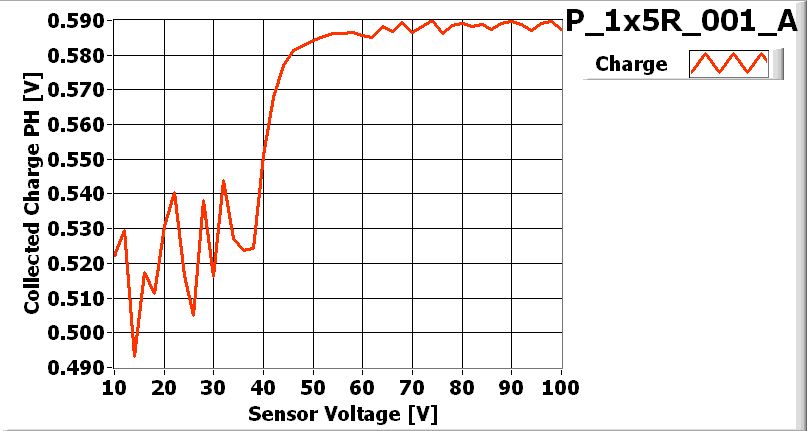

| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 10/20/2007
| Part | ID |
|---|---|
| BBM | BBM_001-1x5 |
| VHDI | 1x5R_313 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 54C |
| ROC1 | W49_D1LQG5T | 25D |
| ROC2 | W49_D1LQG5T | 37B |
| ROC3 | W49_D1LQG5T | 37A |
| ROC4 | W49_D1LQG5T | 36D |
Inspected by Lockwood Gale on date 10/24/2007
| LR_dev | 0.060 |
| LL_dev | 0.038 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 1.5 kg per ROC. No assembly problems. ROC 4, CH 26 wo all wiresbonded. |
PLAQUETTE made READY for ENCAPSULATION on 10/24/2007 by Lockwood Gale
PLAQUETTE encapsulated on 10/24/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 10/24/2007 by Ozhan Koybasi
P_1x5R_001_Aon 10/24/2007 5:36 PM
P_1x5R_001_Aon 10/24/2007 5:36 PM
PLAQUETTE TESTED on 2007-10-24 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 152 | 156 | 148 | 148 | 162 | |
| Vana | 153 | 148 | 135 | 141 | 145 | |
| Cal_Del | 83 | 89 | 84 | 89 | 77 | |
| Vthrs_Comp | 89 | 86 | 89 | 89 | 82 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 16 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 16 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5R_001_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5R_001_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5R_001_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |

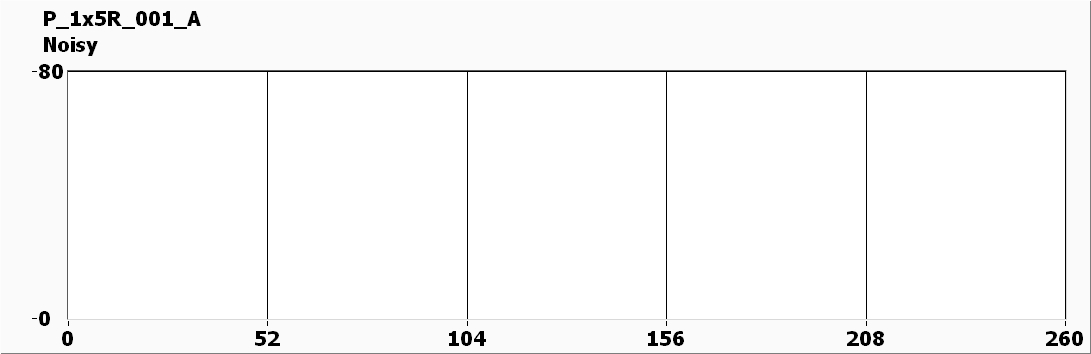

![[IMAGE] of](P_1x5R_001_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5R_001_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5R_001_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 100 | 110 | 105 | 95 |
| Vsf | 155 | 150 | 140 | 140 | 145 |
| VoffsetOp | 115 | 100 | 100 | 105 | 105 |
| VIbias_PH | 100 | 95 | 95 | 95 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5R_001_A-580-noise.jpg)

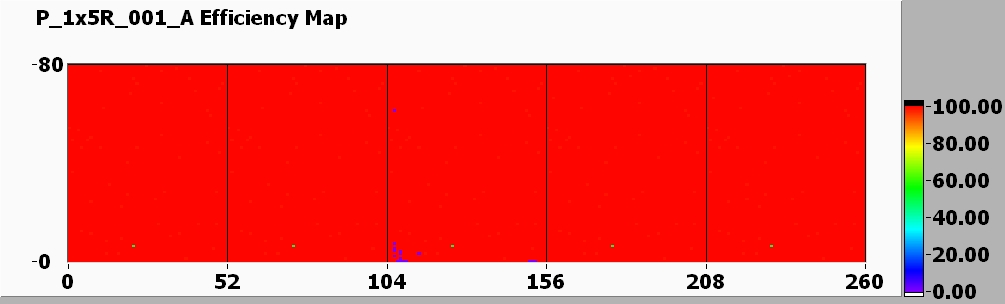

Efficiency MAP
![[IMAGE] of](P_1x5R_001_A-580-efficiency.jpg)

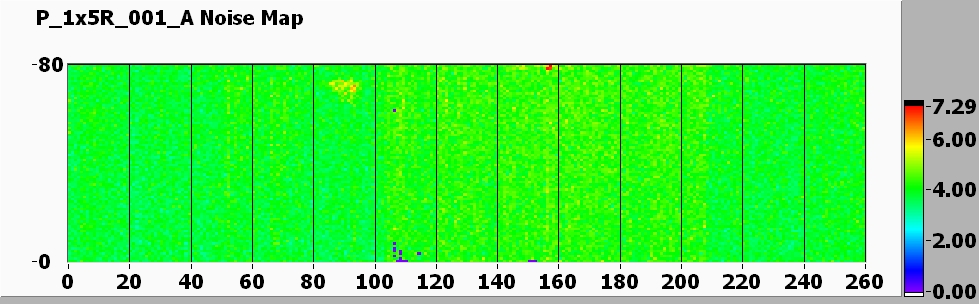

Noise MAP at -200 V
![[IMAGE] of](P_1x5R_001_A-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5R_001_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
