P_1x5R_001

P_1x5R_001_A

Production testing

Date:10/24/2007

Operator: Ozhan Koybasi

start testing time:5:36 PM

Sensor: S_1x5R_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W49_D1LQG5T 54C

ROC1 W49_D1LQG5T 25D

ROC2 W49_D1LQG5T 37B

ROC3 W49_D1LQG5T 37A

ROC4 W49_D1LQG5T 36D

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	54C
ROC1	W49_D1LQG5T	25D
ROC2	W49_D1LQG5T	37B
ROC3	W49_D1LQG5T	37A
ROC4	W49_D1LQG5T	36D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 152 156 148 148 162

Vana, VanaData 153 148 135 141 145

CalDelData and plots 83 89 84 89 77

VthrCompData and plots 89 86 89 89 82

TestDdata ,TestD Plots 0 1 16 0 0

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

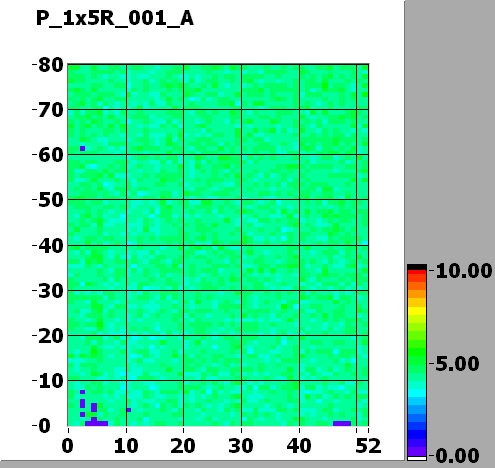

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	100	110	105	95
Vsf	155	150	140	140	145
VoffsetOp	115	100	100	105	105
VIbias_PH	100	95	95	95	100

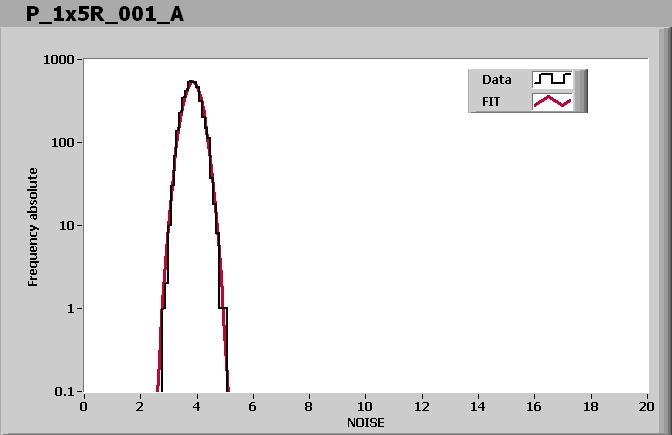

ROC0 NOISE			MEAN = 3.848774 SIGMA = 0.304355

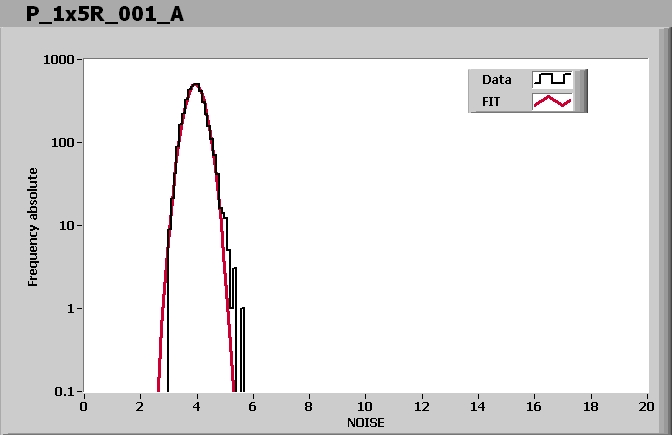

ROC1 NOISE			MEAN = 3.945874 SIGMA = 0.325883
ROC2 NOISE			MEAN = 4.302380 SIGMA = 0.352570
ROC3 NOISE			MEAN = 4.356814 SIGMA = 0.330676

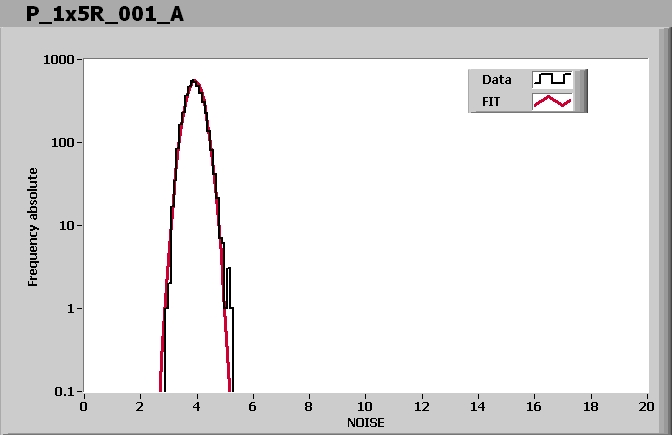

ROC4 NOISE			MEAN = 3.923200 SIGMA = 0.297764

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 6:04 PM

Ibias_DAC, Ibias_DAC Data	152	156	148	148	162
Vana, VanaData	153	148	135	141	145
CalDelData and plots	83	89	84	89	77
VthrCompData and plots	89	86	89	89	82
TestDdata ,TestD Plots	0	1	16	0	0
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
