P_1x5L_182

P_1x5L_182_A

Parts committed by Bolla Gino on date 2/1/2007

Part	ID
BBM	BBM_182-1x5
VHDI	1x5L_239

ROC ROC wafer Label

ROC0 W28_X54K5TT 12B

ROC1 W28_X54K5TT 12A

ROC2 W28_X54K5TT 11D

ROC3 W28_X54K5TT 11C

ROC4 W28_X54K5TT 11B

ROC	ROC wafer	Label
ROC0	W28_X54K5TT	12B
ROC1	W28_X54K5TT	12A
ROC2	W28_X54K5TT	11D
ROC3	W28_X54K5TT	11C
ROC4	W28_X54K5TT	11B

Inspected by Lockwood Gale on date 2/12/2007

LR_dev 0.045

LL_dev 0.060

FINAL COMMENT by Lockwood Gale No assembly problems No wirebonding problems.

PLAQUETTE made READY for testing on 2/12/2007 by Lockwood Gale

P_1x5L_182_Aon 2/12/2007 12:16 PM

PLAQUETTE TESTED on 2007-02-12 by Isaac Childres

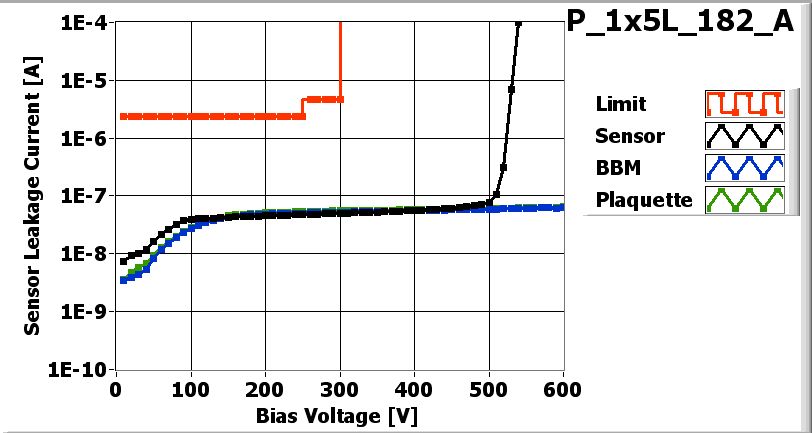

IV_XML-File

Maximum Voltage 600 V

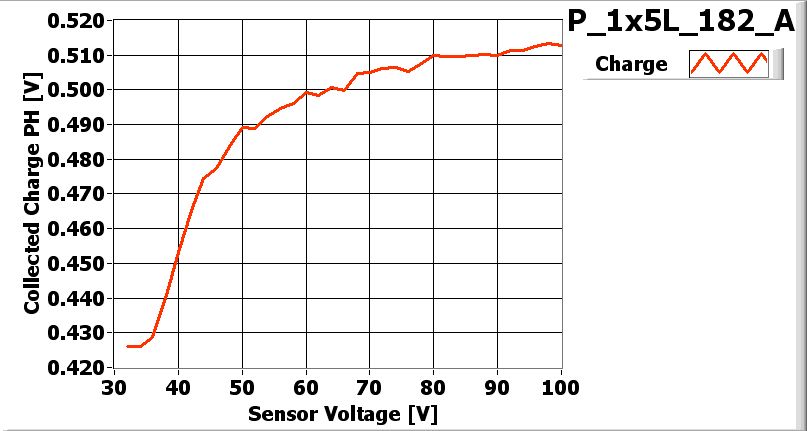

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4
Ibias_DAC	146	134	124	138	134
Vana	135	144	127	120	141
Cal_Del	67	79	81	81	93
Vthrs_Comp	90	79	73	78	70
Unbumped	1	0	0	0	0
Dead	0	0	0	0	0
Noisy	0	0	0	0	0
Undecoded	0	0	0	0	0
Total BAD	1	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

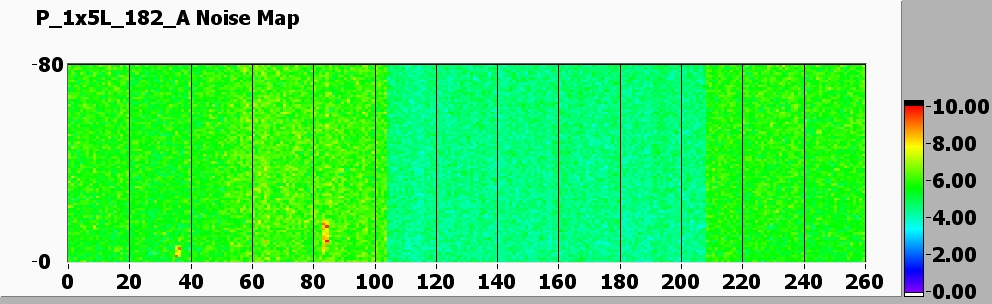

Noise MAP

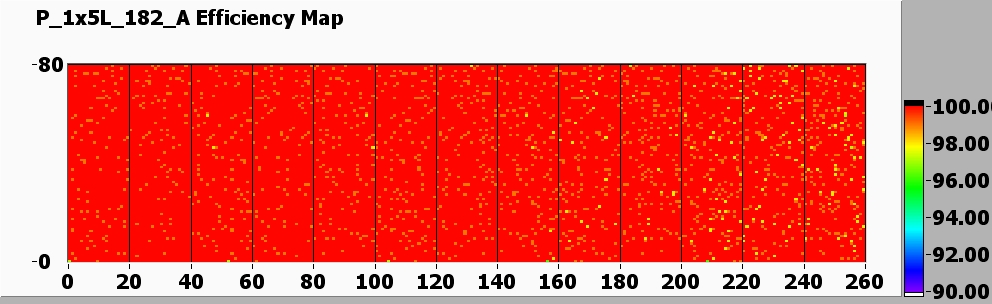

Efficiency MAP

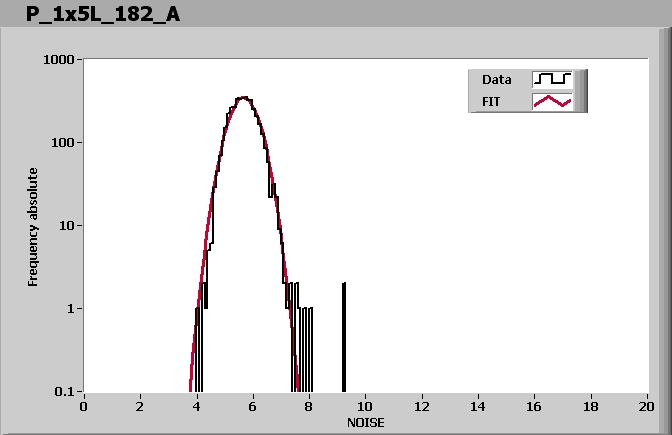

ROC0 NOISE			MEAN = 5.663255 SIGMA = 0.477281

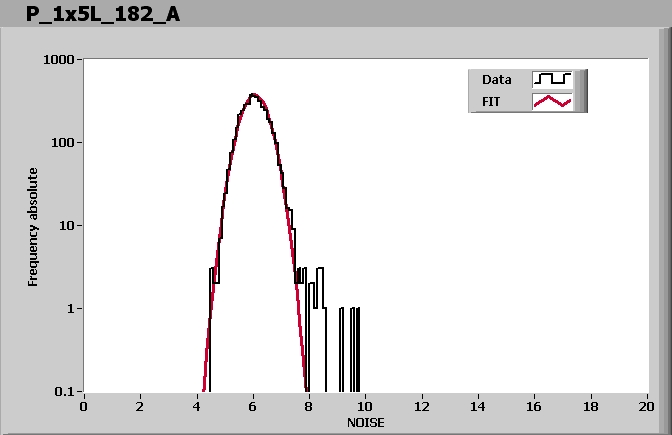

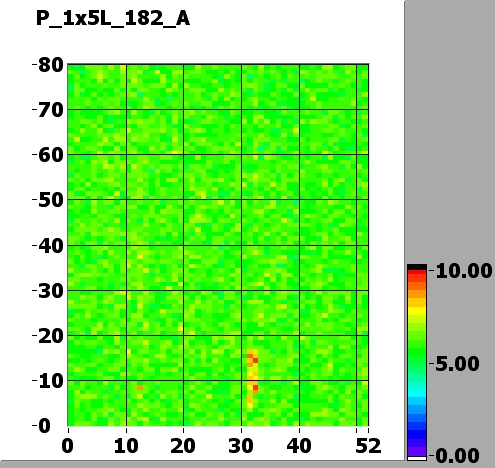

ROC1 NOISE			MEAN = 6.054592 SIGMA = 0.450341
ROC2 NOISE			MEAN = 4.453941 SIGMA = 0.349008
ROC3 NOISE			MEAN = 4.476365 SIGMA = 0.360083

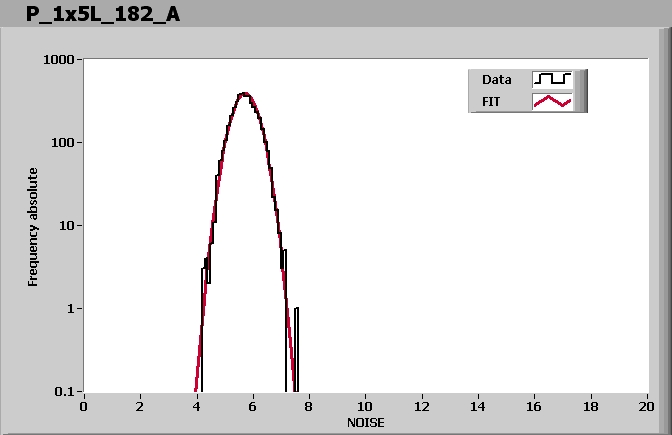

ROC4 NOISE			MEAN = 5.713592 SIGMA = 0.431424

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/13/2007 by Ozhan Koybasi

P_1x5L_182_A-1on 2/15/2007 10:26 AM

P_1x5L_182_A-1on 2/15/2007 10:26 AM AFTER POTTING

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 1/1 1/1

ROC1 0/0 0/0 0/0 0/0 0/0

ROC2 0/0 0/0 0/0 0/0 0/0

ROC3 0/0 0/0 0/0 0/0 0/0

ROC4 0/0 0/0 0/0 0/0 0/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-16

Plaquette assigned to panel P4R_064
