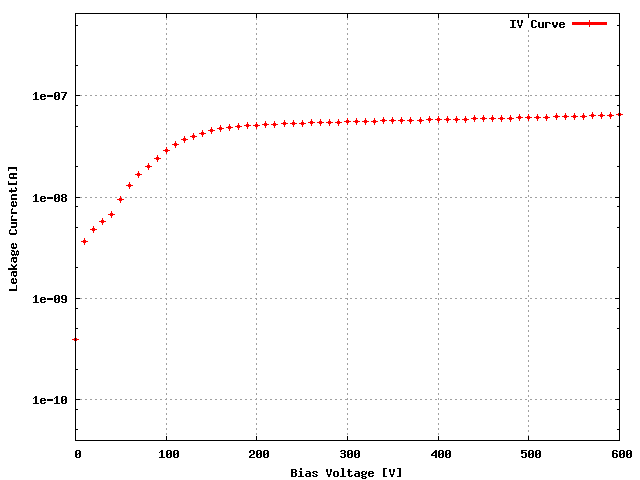

Sensor: S_1x5L_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W28_X54K5TT | 12B |
ROC1 | W28_X54K5TT | 12A |
ROC2 | W28_X54K5TT | 11D |
ROC3 | W28_X54K5TT | 11C |
ROC4 | W28_X54K5TT | 11B |
Ibias_DAC, Ibias_DAC Data | 146 | 134 | 124 | 138 | 134 |
Vana, VanaData | 135 | 144 | 127 | 120 | 141 |
CalDelData and plots | 67 | 79 | 81 | 81 | 93 |
VthrCompData and plots | 90 | 79 | 73 | 78 | 70 | Depletion Voltage is -52 and suggested operational voltage is -92
TestDdata ,TestD Plots | 1 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 1 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Noise MAP
Efficiency MAP
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:33 PM
