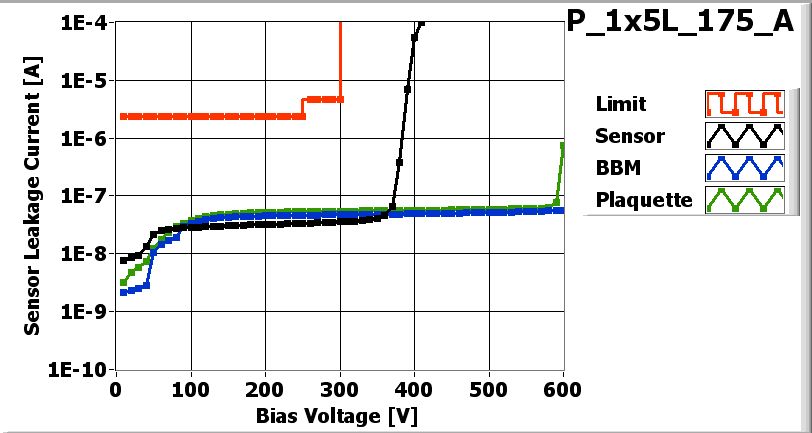

![[IMAGE] of](P_1x5L_175_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_175_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/19/2007
| Part | ID |
|---|---|
| BBM | BBM_175-1x5 |
| VHDI | 1x5L_280 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 55A |
| ROC1 | W33_XC4K5LT | 14C |
| ROC2 | W28_X54K5TT | 56B |
| ROC3 | W28_X54K5TT | 54A |
| ROC4 | W28_X54K5TT | 53D |
Inspected by Lockwood Gale on date 4/25/2007
| LR_dev | 0.068 |
| LL_dev | 0.042 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/25/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/26/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/26/2007 by Ozhan Koybasi
P_1x5L_175_Aon 4/30/2007 12:21 PM
P_1x5L_175_Aon 4/30/2007 12:21 PM
PLAQUETTE TESTED on 2007-04-30 by Mia Tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 146 | 144 | 128 | 148 | 132 | |
| Vana | 139 | 138 | 109 | 129 | 138 | |
| Cal_Del | 83 | 74 | 88 | 84 | 74 | |
| Vthrs_Comp | 73 | 76 | 63 | 72 | 79 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_175_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_175_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_175_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_175_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_175_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_175_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 110 | 115 | 165 | 130 | 115 |
| Vsf | 140 | 140 | 130 | 140 | 135 |
| VoffsetOp | 100 | 75 | 70 | 80 | 70 |
| VIbias_PH | 100 | 100 | 100 | 100 | 95 |

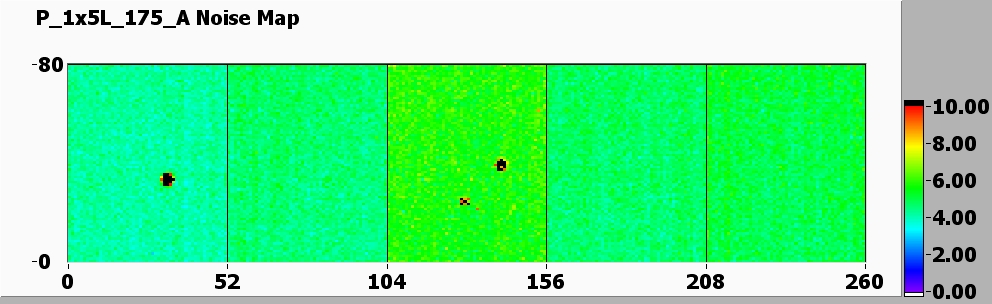

Noise MAP
![[IMAGE] of](P_1x5L_175_A-580-noise.jpg)

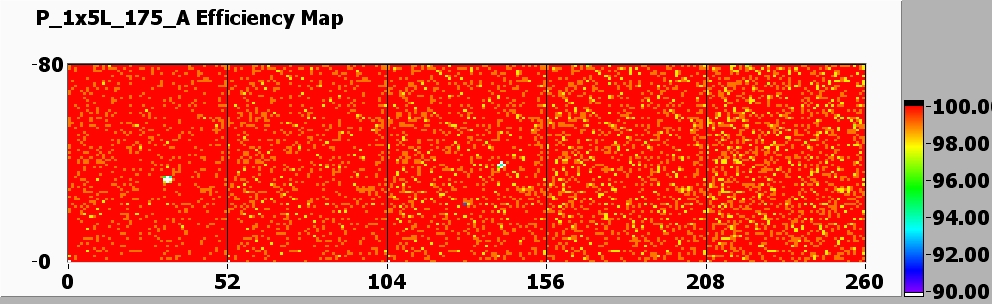

Efficiency MAP
![[IMAGE] of](P_1x5L_175_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
