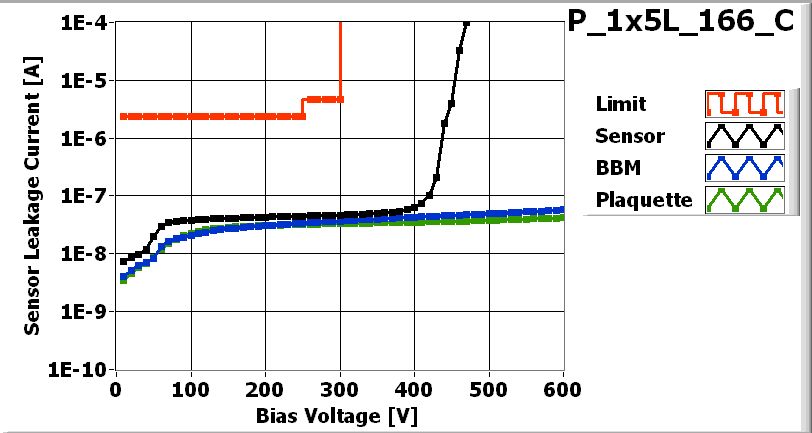

![[IMAGE] of](P_1x5L_166_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_166_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 3/19/2007
| Part | ID |
|---|---|
| BBM | BBM_166-1x5 |
| VHDI | 1x5L_252 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 13C |
| ROC1 | XG4KFCT | 11D |
| ROC2 | XG4KFCT | 06B |
| ROC3 | XG4KFCT | 06A |
| ROC4 | XG4KFCT | 05B |
Inspected by Arndt Kirk on date 3/21/2007
| LR_dev | 0.083 |
| LL_dev | 0.059 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/21/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/21/2007 by Ozhan Koybasi
P_1x5L_166_Con 3/22/2007 11:21 AM
P_1x5L_166_Con 3/22/2007 11:21 AM
PLAQUETTE TESTED on 2007-03-22 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 138 | 130 | 132 | 126 | 138 | |
| Vana | 120 | 121 | 132 | 122 | 142 | |
| Cal_Del | 74 | 82 | 91 | 94 | 77 | |
| Vthrs_Comp | 87 | 72 | 75 | 66 | 78 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

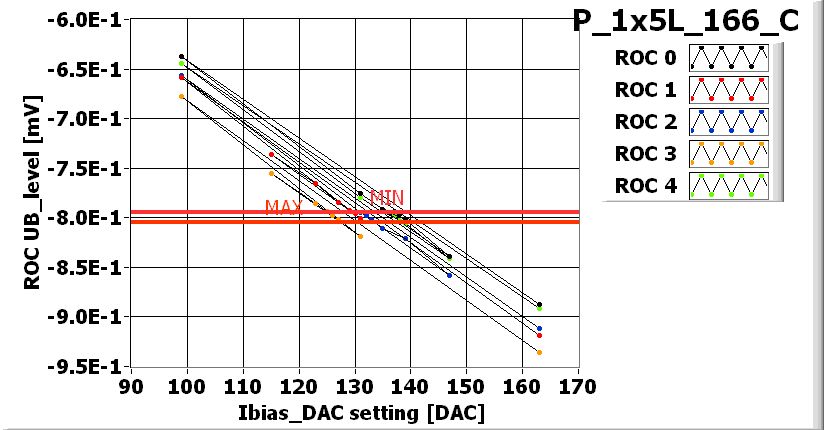

![[IMAGE] of](P_1x5L_166_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

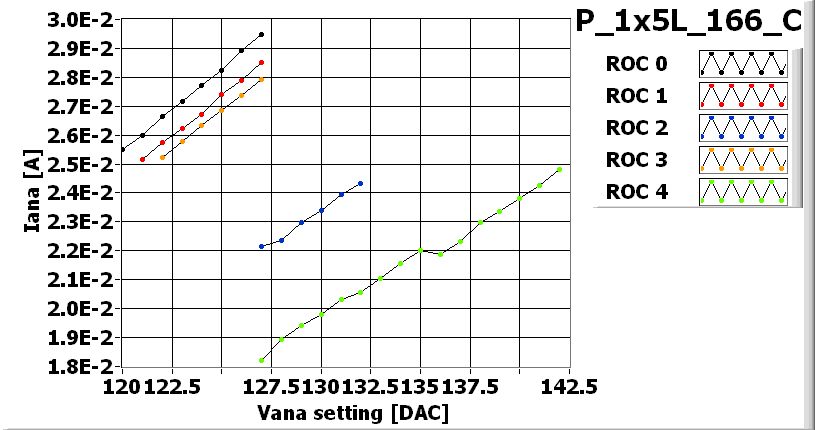

![[IMAGE] of](P_1x5L_166_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_166_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_166_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_166_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_166_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 155 | 135 | 120 | 105 | 95 |
| Vsf | 135 | 135 | 140 | 140 | 145 |
| VoffsetOp | 95 | 80 | 80 | 80 | 85 |
| VIbias_PH | 100 | 95 | 95 | 100 | 105 |

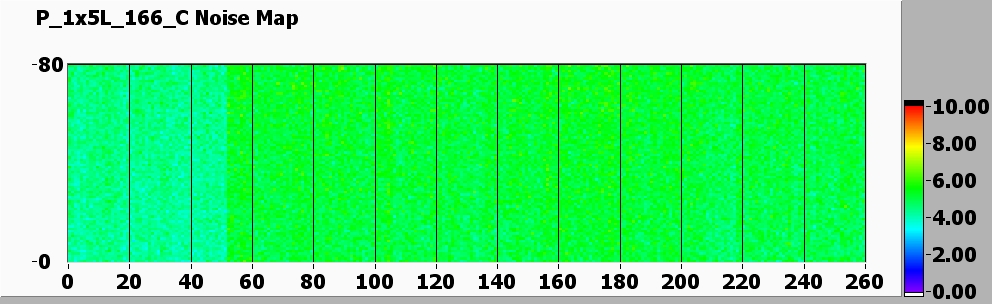

Noise MAP
![[IMAGE] of](P_1x5L_166_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5L_166_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
