![[IMAGE] of](P_1x5L_165_C_IV.jpg)

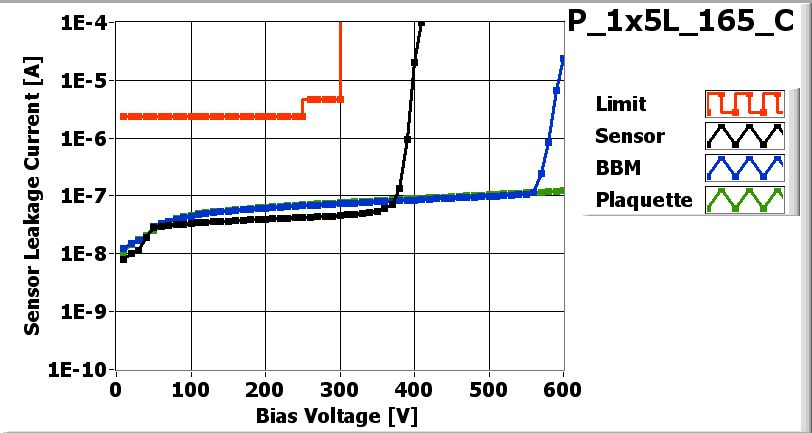

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_165_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_165-1x5 |
| VHDI | 1x5L_288 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 22B |
| ROC1 | KFNG13T | 32D |
| ROC2 | KFNG13T | 52B |
| ROC3 | KFNG13T | 03A |
| ROC4 | KFNG13T | 52A |
Inspected by Lockwood Gale on date 5/9/2007
| LR_dev | 0.061 |
| LL_dev | 0.104 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/9/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/9/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/9/2007 by Ortiz Jason
P_1x5L_165_Con 5/10/2007 11:10 AM
P_1x5L_165_Con 5/10/2007 11:10 AM
PLAQUETTE TESTED on 2007-05-10 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 172 | 166 | 154 | 148 | 158 | |
| Vana | 144 | 140 | 133 | 133 | 117 | |
| Cal_Del | 85 | 63 | 78 | 81 | 77 | |
| Vthrs_Comp | 83 | 81 | 75 | 73 | 78 | |
| Unbumped | 2 | 0 | 0 | 1 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 0 | 0 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_165_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

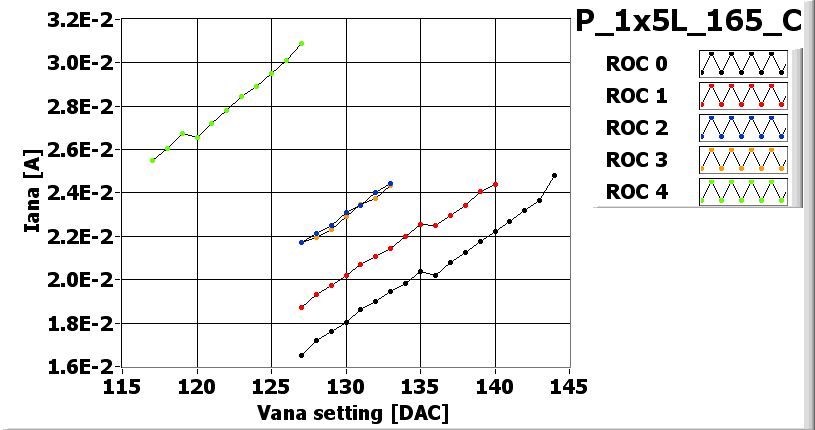

![[IMAGE] of](P_1x5L_165_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_165_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_165_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_165_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_165_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 100 | 100 | 100 | 155 |
| Vsf | 145 | 140 | 140 | 140 | 135 |
| VoffsetOp | 115 | 90 | 95 | 75 | 85 |
| VIbias_PH | 100 | 105 | 105 | 100 | 100 |

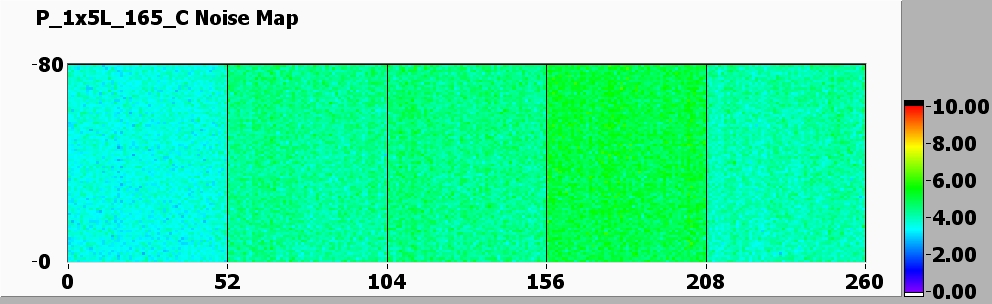

Noise MAP
![[IMAGE] of](P_1x5L_165_C-580-noise.jpg)

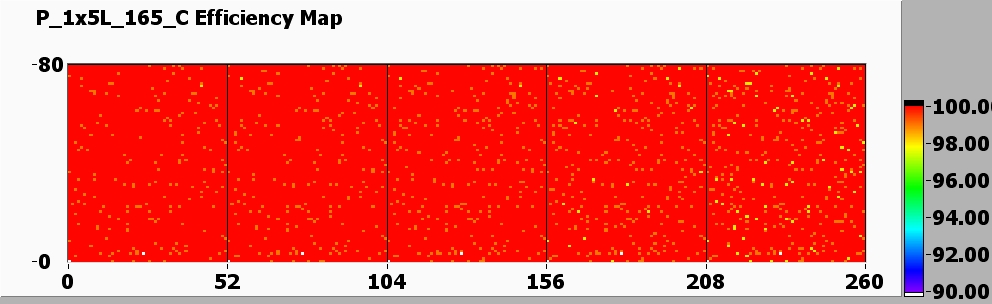

Efficiency MAP
![[IMAGE] of](P_1x5L_165_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
