P_1x5L_165

P_1x5L_165_C

Production testing

Date:5/10/2007

Operator: mia tosi

start testing time:11:10 AM

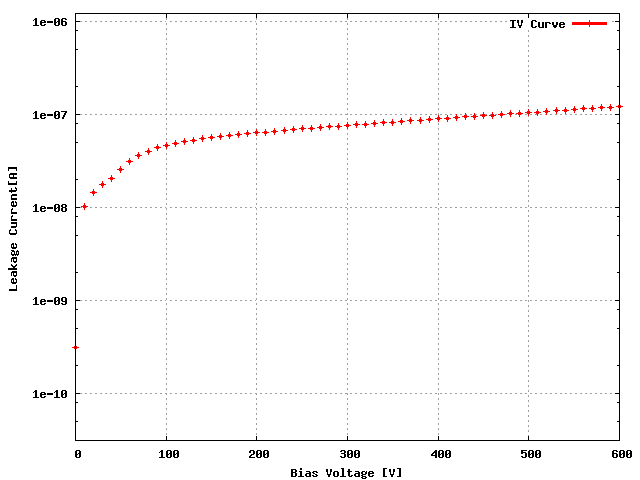

Sensor: S_1x5L_16, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KFNG13T 22B

ROC1 KFNG13T 32D

ROC2 KFNG13T 52B

ROC3 KFNG13T 03A

ROC4 KFNG13T 52A

ROC	ROC wafer	Label
ROC0	KFNG13T	22B
ROC1	KFNG13T	32D
ROC2	KFNG13T	52B
ROC3	KFNG13T	03A
ROC4	KFNG13T	52A

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 172 166 154 148 158

Vana, VanaData 144 140 133 133 117

CalDelData and plots 85 63 78 81 77

VthrCompData and plots 83 81 75 73 78

TestDdata ,TestD Plots 0 0 0 1 6

LightData ,Light Plots 2 0 0 1 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

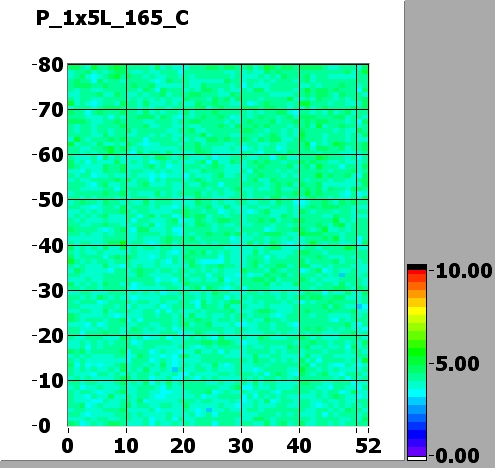

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	100	100	100	155
Vsf	145	140	140	140	135
VoffsetOp	115	90	95	75	85
VIbias_PH	100	105	105	100	100

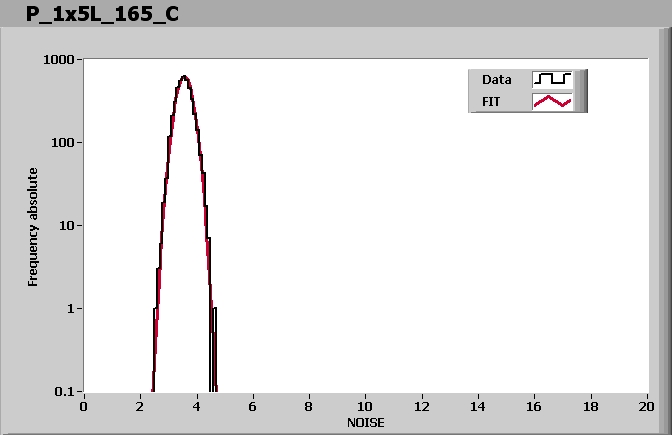

ROC0 NOISE			MEAN = 3.554256 SIGMA = 0.268986

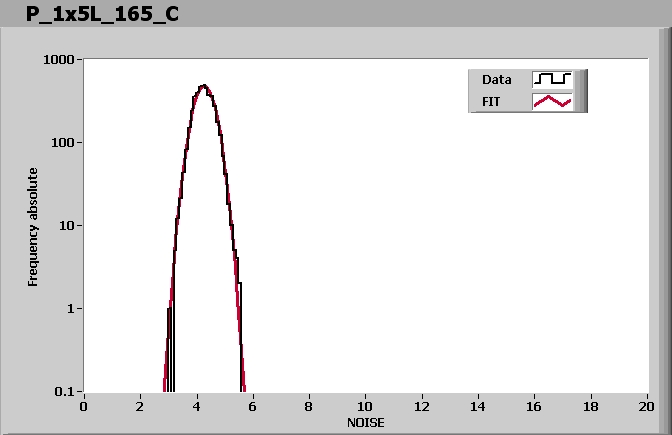

ROC1 NOISE			MEAN = 4.258532 SIGMA = 0.345263
ROC2 NOISE			MEAN = 4.358023 SIGMA = 0.322953
ROC3 NOISE			MEAN = 4.965686 SIGMA = 0.393192
ROC4 NOISE			MEAN = 4.038567 SIGMA = 0.321774

Comment (if any): good, maybe look @ ROC0 (corner)

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:31 AM

Ibias_DAC, Ibias_DAC Data	172	166	154	148	158
Vana, VanaData	144	140	133	133	117
CalDelData and plots	85	63	78	81	77
VthrCompData and plots	83	81	75	73	78
TestDdata ,TestD Plots	0	0	0	1	6
LightData ,Light Plots	2	0	0	1	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
