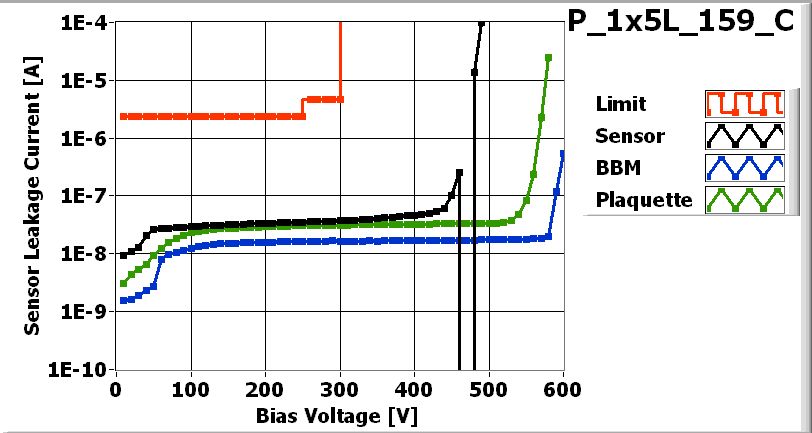

![[IMAGE] of](P_1x5L_159_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 580 V |

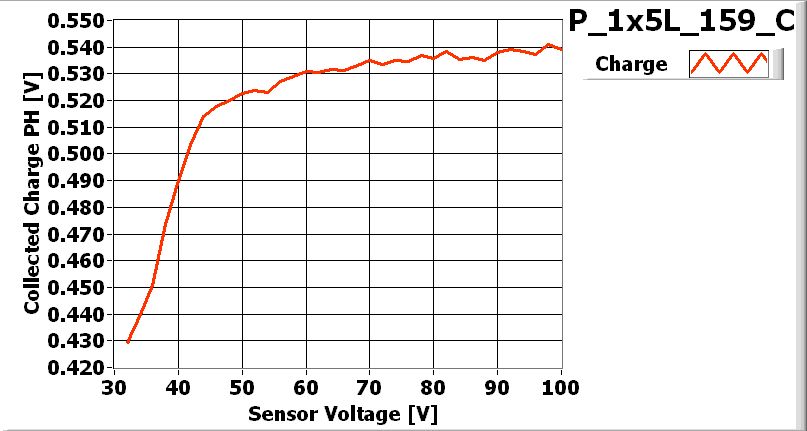

![[IMAGE] of](P_1x5L_159_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 4/24/2007
| Part | ID |
|---|---|
| BBM | BBM_159-1x5 |
| VHDI | 1x5L_282 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X94KFJT | 22C |
| ROC1 | X94KFJT | 31C |
| ROC2 | X94KFJT | 21D |
| ROC3 | X94KFJT | 21A |
| ROC4 | X94KFJT | 20B |
Inspected by Lockwood Gale on date 5/1/2007
| LR_dev | 0.018 |
| LL_dev | 0.029 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/1/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/4/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/4/2007 by Ozhan Koybasi
P_1x5L_159_Con 5/7/2007 1:40 PM
P_1x5L_159_Con 5/7/2007 1:40 PM
PLAQUETTE TESTED on 2007-05-07 by mia tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 138 | 132 | 134 | 144 | 126 | |
| Vana | 117 | 127 | 131 | 127 | 114 | |
| Cal_Del | 87 | 88 | 80 | 97 | 90 | |
| Vthrs_Comp | 73 | 78 | 85 | 78 | 79 | |
| Unbumped | 21 | 0 | 0 | 1 | 8 | |
| Dead | 1 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 22 | 0 | 0 | 1 | 8 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

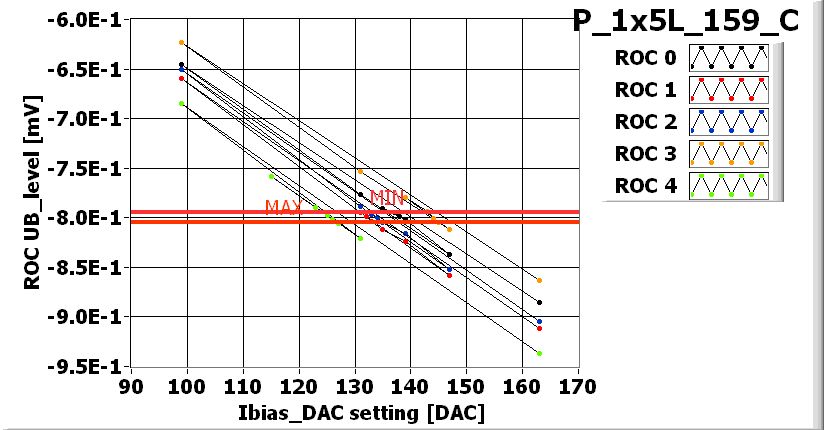

![[IMAGE] of](P_1x5L_159_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_159_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_159_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_159_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_159_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_159_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 155 | 150 | 110 | 120 | 135 |
| Vsf | 135 | 140 | 140 | 140 | 125 |
| VoffsetOp | 85 | 80 | 75 | 80 | 55 |
| VIbias_PH | 100 | 105 | 105 | 100 | 105 |
Noise MAP
![[IMAGE] of](P_1x5L_159_C-560-noise.jpg)

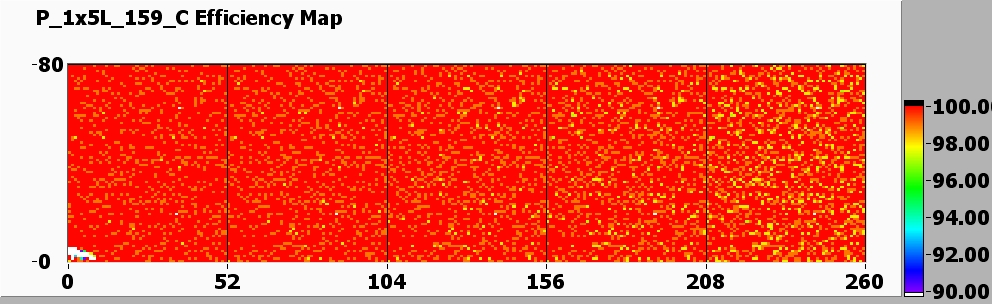

Efficiency MAP
![[IMAGE] of](P_1x5L_159_C-560-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
