P_1x5L_159

P_1x5L_159_C

Production testing

Date:5/7/2007

Operator: mia tosi

start testing time:1:40 PM

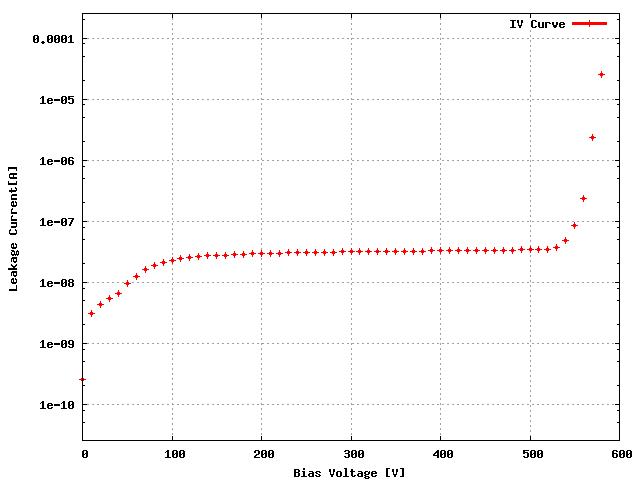

Sensor: S_1x5L_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 X94KFJT 22C

ROC1 X94KFJT 31C

ROC2 X94KFJT 21D

ROC3 X94KFJT 21A

ROC4 X94KFJT 20B

ROC	ROC wafer	Label
ROC0	X94KFJT	22C
ROC1	X94KFJT	31C
ROC2	X94KFJT	21D
ROC3	X94KFJT	21A
ROC4	X94KFJT	20B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 138 132 134 144 126

Vana, VanaData 117 127 131 127 114

CalDelData and plots 87 88 80 97 90

VthrCompData and plots 73 78 85 78 79

TestDdata ,TestD Plots 17 0 0 1 7

LightData ,Light Plots 21 0 0 1 8

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

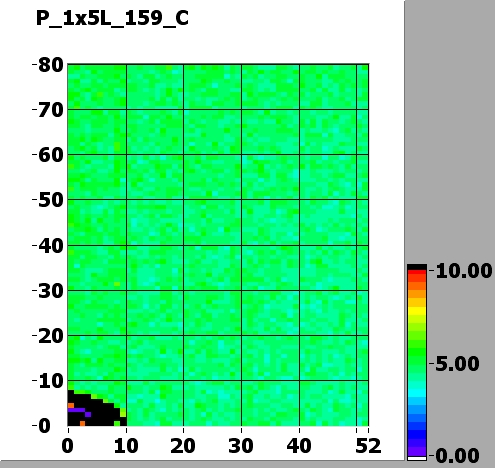

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	155	150	110	120	135
Vsf	135	140	140	140	125
VoffsetOp	85	80	75	80	55
VIbias_PH	100	105	105	100	105

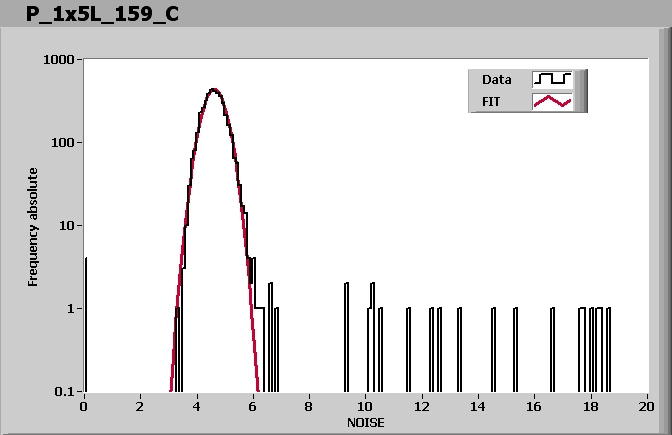

ROC0 NOISE			MEAN = 4.616393 SIGMA = 0.379574

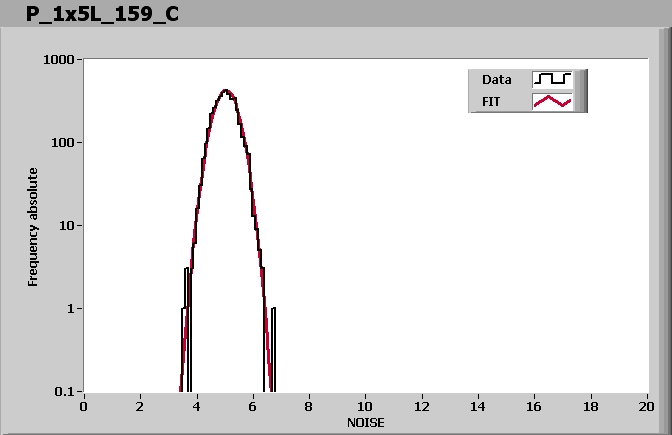

ROC1 NOISE			MEAN = 5.032349 SIGMA = 0.394286
ROC2 NOISE			MEAN = 5.274385 SIGMA = 0.411781

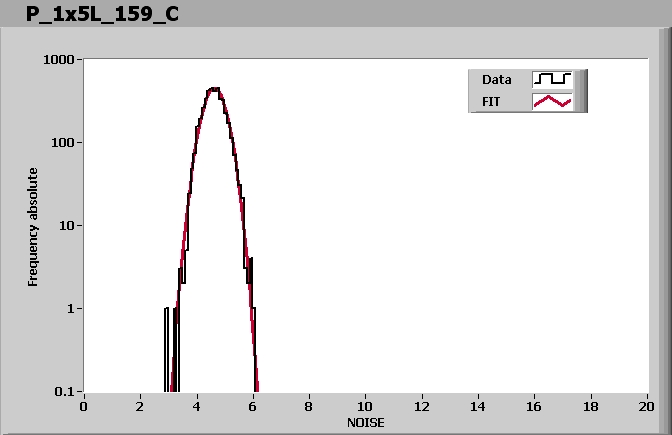

ROC3 NOISE			MEAN = 4.622283 SIGMA = 0.375285

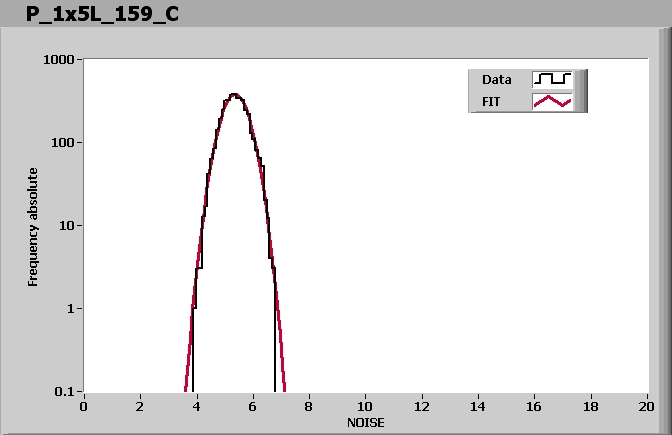

ROC4 NOISE			MEAN = 5.358163 SIGMA = 0.436159

Comment (if any): good, but look roc0 and roc 4

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 1:58 PM

Ibias_DAC, Ibias_DAC Data	138	132	134	144	126
Vana, VanaData	117	127	131	127	114
CalDelData and plots	87	88	80	97	90
VthrCompData and plots	73	78	85	78	79
TestDdata ,TestD Plots	17	0	0	1	7
LightData ,Light Plots	21	0	0	1	8
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
