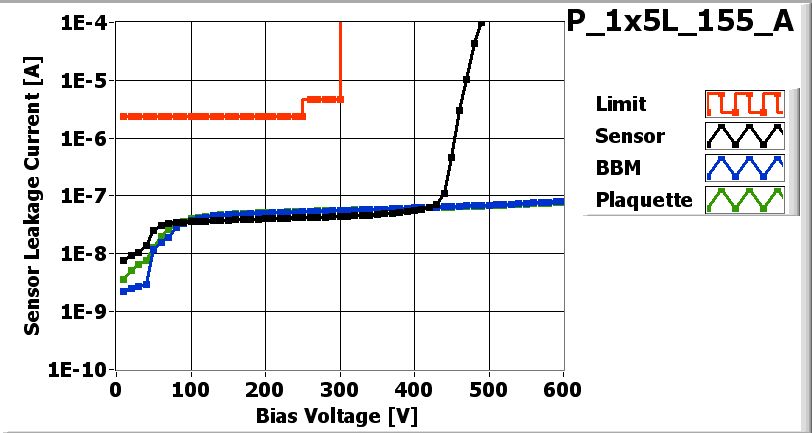

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_155_A_LASER.jpg)

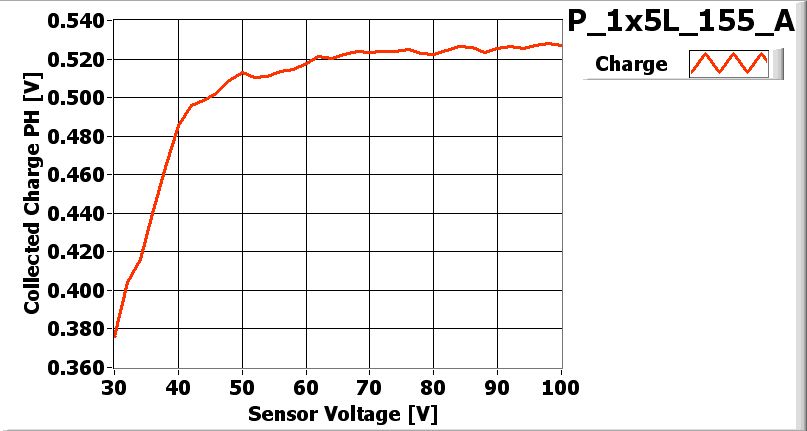

| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/15/2007
| Part | ID |
|---|---|
| BBM | BBM_155-1x5 |
| VHDI | 1x5L_247 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 56A |
| ROC1 | W29_X64K5ST | 55C |
| ROC2 | W29_X64K5ST | 54D |
| ROC3 | W29_X64K5ST | 54C |
| ROC4 | W29_X64K5ST | 54B |
Inspected by Lockwood Gale on date 2/27/2007
| LR_dev | 0.022 |
| LL_dev | 0.017 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No problem. |
PLAQUETTE made READY for ENCAPSULATION on 2/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/1/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/1/2007 by Ozhan Koybasi
P_1x5L_155_Aon 3/2/2007 11:35 AM
P_1x5L_155_Aon 3/2/2007 11:35 AM
PLAQUETTE TESTED on 2007-03-02 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 158 | 124 | 146 | 126 | 128 | |
| Vana | 150 | 137 | 144 | 133 | 127 | |
| Cal_Del | 76 | 83 | 81 | 84 | 80 | |
| Vthrs_Comp | 88 | 71 | 81 | 72 | 74 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_155_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_155_A_Vana.jpg) |

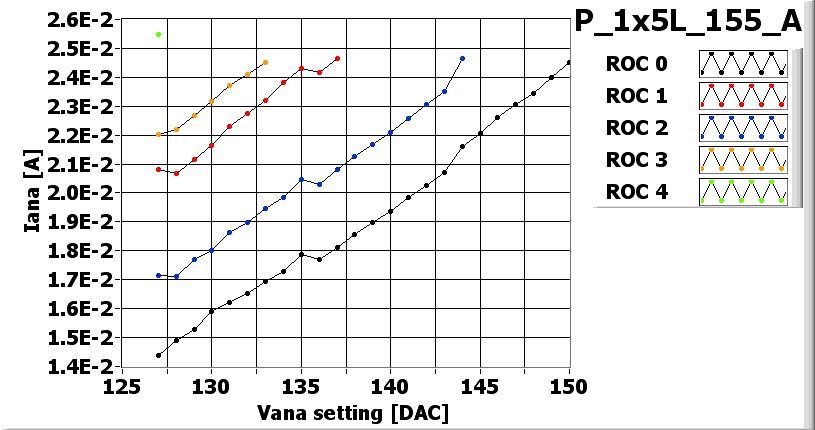

VANA_XML-File |
![[IMAGE] of](P_1x5L_155_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_155_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_155_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_155_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 130 | 95 | 125 | 120 |
| Vsf | 145 | 140 | 140 | 135 | 140 |
| VoffsetOp | 120 | 80 | 95 | 70 | 70 |
| VIbias_PH | 100 | 100 | 100 | 105 | 100 |

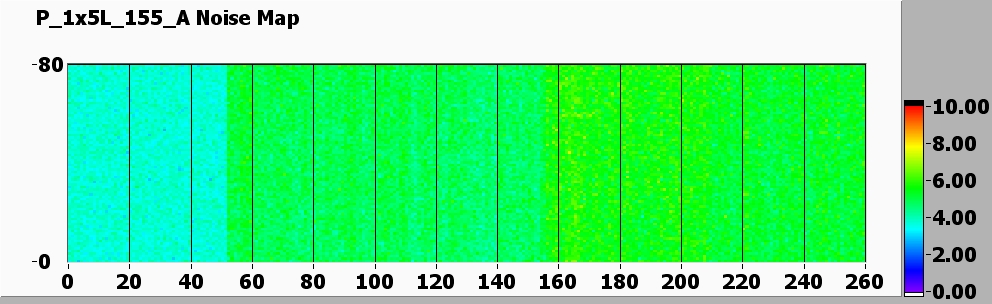

Noise MAP
![[IMAGE] of](P_1x5L_155_A-580-noise.jpg)

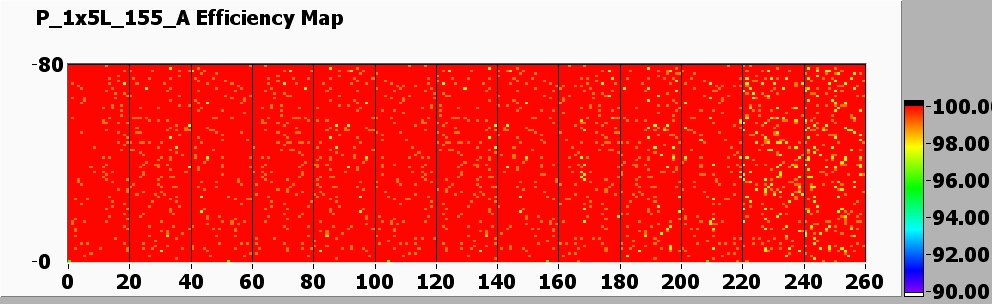

Efficiency MAP
![[IMAGE] of](P_1x5L_155_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
