P_1x5L_155

P_1x5L_155_A

Production testing

Date:3/2/2007

Operator: Cameron McKinney

start testing time:11:35 AM

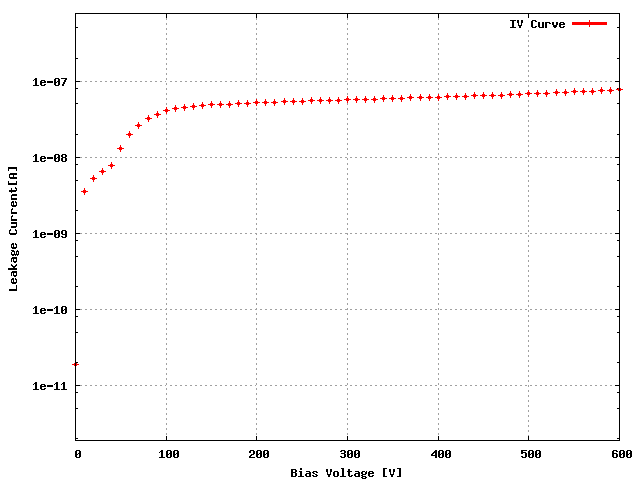

Sensor: S_1x5L_15, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W29_X64K5ST 56A

ROC1 W29_X64K5ST 55C

ROC2 W29_X64K5ST 54D

ROC3 W29_X64K5ST 54C

ROC4 W29_X64K5ST 54B

ROC	ROC wafer	Label
ROC0	W29_X64K5ST	56A
ROC1	W29_X64K5ST	55C
ROC2	W29_X64K5ST	54D
ROC3	W29_X64K5ST	54C
ROC4	W29_X64K5ST	54B

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 158 124 146 126 128

Vana, VanaData 150 137 144 133 127

CalDelData and plots 76 83 81 84 80

VthrCompData and plots 88 71 81 72 74

TestDdata ,TestD Plots 0 0 0 1 0

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	130	95	125	120
Vsf	145	140	140	135	140
VoffsetOp	120	80	95	70	70
VIbias_PH	100	100	100	105	100

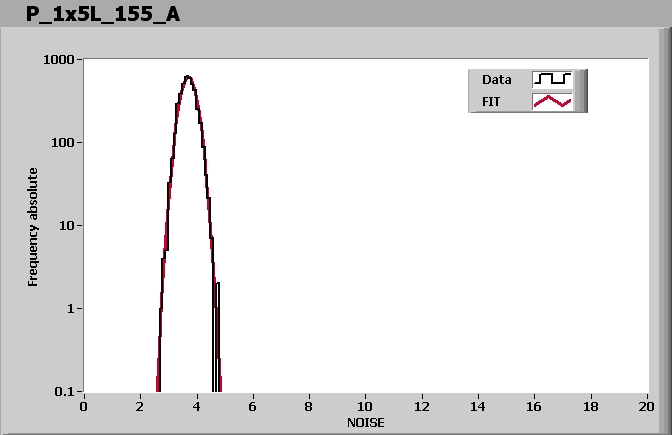

ROC0 NOISE			MEAN = 3.700393 SIGMA = 0.270105
ROC1 NOISE			MEAN = 4.871858 SIGMA = 0.367477
ROC2 NOISE			MEAN = 4.767241 SIGMA = 0.409651

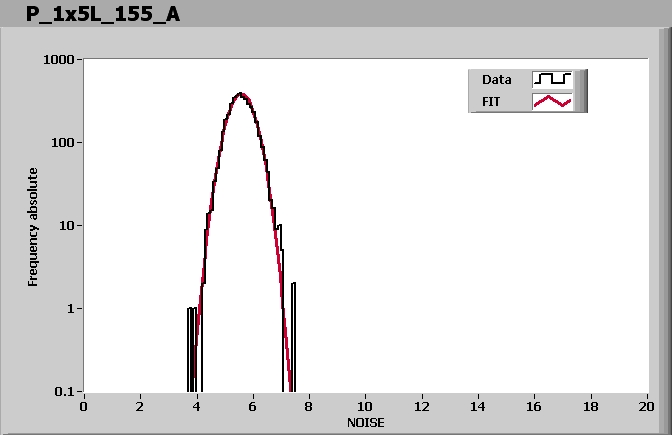

ROC3 NOISE			MEAN = 5.577993 SIGMA = 0.431513
ROC4 NOISE			MEAN = 5.172031 SIGMA = 0.417817

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:54 AM

Ibias_DAC, Ibias_DAC Data	158	124	146	126	128
Vana, VanaData	150	137	144	133	127
CalDelData and plots	76	83	81	84	80
VthrCompData and plots	88	71	81	72	74
TestDdata ,TestD Plots	0	0	0	1	0
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
