![[IMAGE] of](P_1x5L_142_A_IV.jpg)

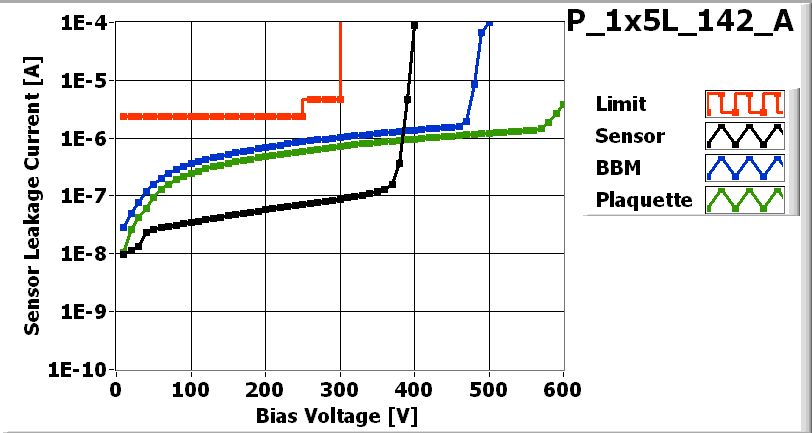

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_142_A_LASER.jpg)

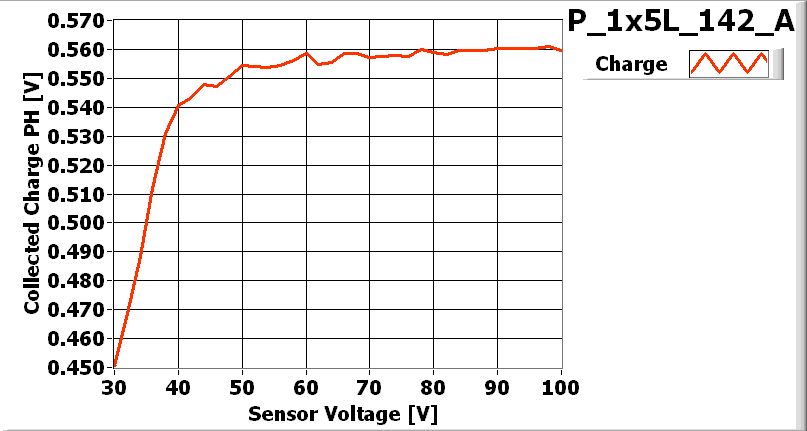

| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Arndt Kirk on date 3/1/2007
| Part | ID |
|---|---|
| BBM | BBM_142-1x5 |
| VHDI | 1x5L_250 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 39D |
| ROC1 | W34_XA4K3PT | 39C |
| ROC2 | W34_XA4K3PT | 39A |
| ROC3 | W34_XA4K3PT | 38D |
| ROC4 | W34_XA4K3PT | 38C |
Inspected by Lockwood Gale on date 3/6/2007
| LR_dev | 0.081 |
| LL_dev | 0.059 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No problem |
PLAQUETTE made READY for ENCAPSULATION on 3/6/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/6/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/6/2007 by Ozhan Koybasi
P_1x5L_142_Aon 3/8/2007 11:11 AM
P_1x5L_142_Aon 3/8/2007 11:11 AM
PLAQUETTE TESTED on 2007-03-08 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 130 | 132 | 146 | 124 | 122 | |
| Vana | 120 | 133 | 147 | 143 | 122 | |
| Cal_Del | 88 | 91 | 70 | 95 | 91 | |
| Vthrs_Comp | 68 | 74 | 93 | 75 | 71 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_142_A_Ibias-dac.jpg) |

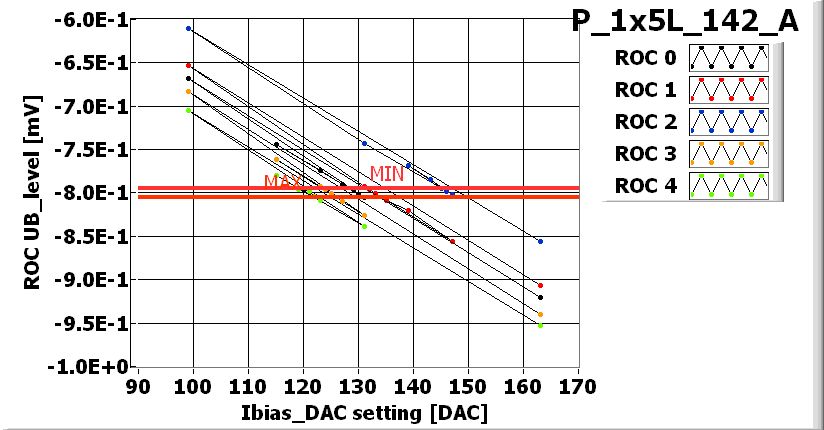

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_142_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_142_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_142_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_142_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_142_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 150 | 130 | 110 | 105 | 115 |
| Vsf | 135 | 140 | 145 | 140 | 130 |
| VoffsetOp | 75 | 90 | 125 | 90 | 60 |
| VIbias_PH | 100 | 105 | 95 | 105 | 95 |
Noise MAP
![[IMAGE] of](P_1x5L_142_A-580-noise.jpg)

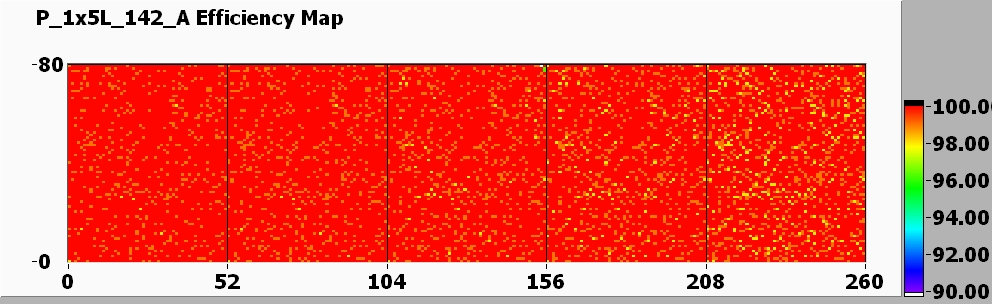

Efficiency MAP
![[IMAGE] of](P_1x5L_142_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
