P_1x5L_142

P_1x5L_142_A

Production testing

Date:3/8/2007

Operator: Joseph Clampitt

start testing time:11:11 AM

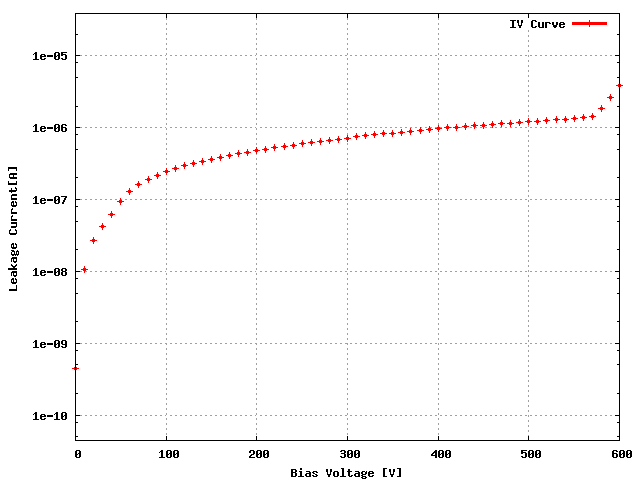

Sensor: S_1x5L_14, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W34_XA4K3PT 39D

ROC1 W34_XA4K3PT 39C

ROC2 W34_XA4K3PT 39A

ROC3 W34_XA4K3PT 38D

ROC4 W34_XA4K3PT 38C

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	39D
ROC1	W34_XA4K3PT	39C
ROC2	W34_XA4K3PT	39A
ROC3	W34_XA4K3PT	38D
ROC4	W34_XA4K3PT	38C

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 130 132 146 124 122

Vana, VanaData 120 133 147 143 122

CalDelData and plots 88 91 70 95 91

VthrCompData and plots 68 74 93 75 71

TestDdata ,TestD Plots 0 2 4 26 32

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

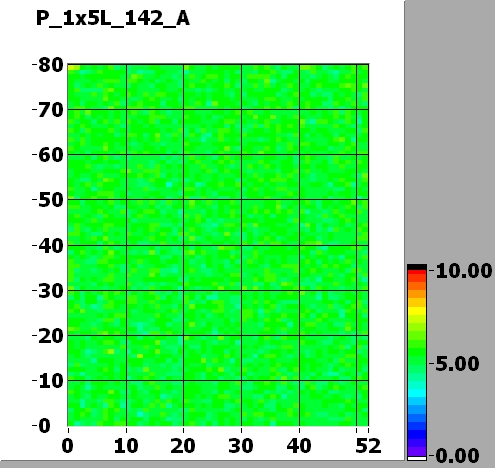

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	150	130	110	105	115
Vsf	135	140	145	140	130
VoffsetOp	75	90	125	90	60
VIbias_PH	100	105	95	105	95

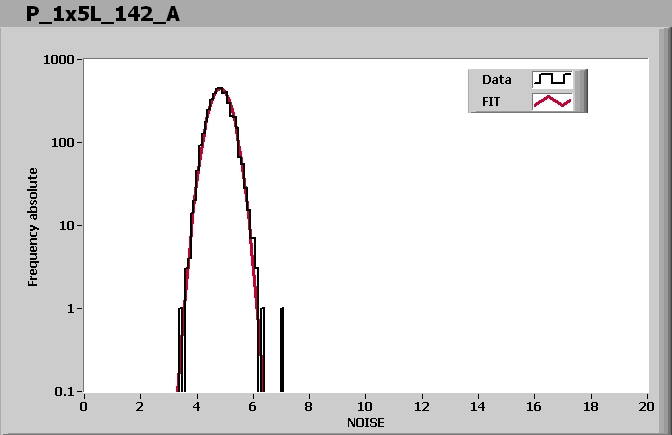

ROC0 NOISE			MEAN = 4.838939 SIGMA = 0.370626
ROC1 NOISE			MEAN = 4.927203 SIGMA = 0.397193
ROC2 NOISE			MEAN = 4.492559 SIGMA = 0.338455

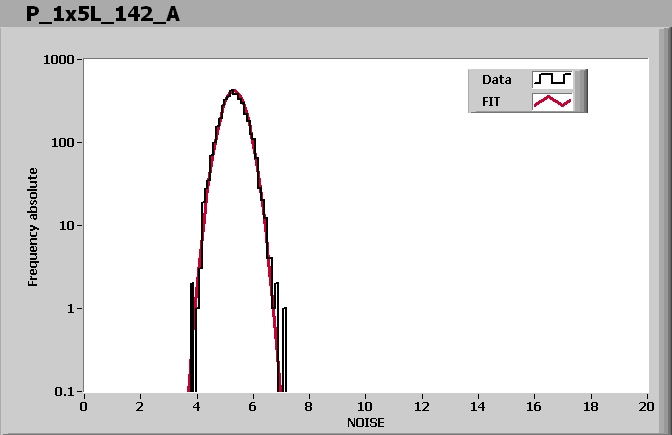

ROC3 NOISE			MEAN = 5.318675 SIGMA = 0.399546
ROC4 NOISE			MEAN = 4.992362 SIGMA = 0.380024

Comment (if any): Good

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:30 AM

Ibias_DAC, Ibias_DAC Data	130	132	146	124	122
Vana, VanaData	120	133	147	143	122
CalDelData and plots	88	91	70	95	91
VthrCompData and plots	68	74	93	75	71
TestDdata ,TestD Plots	0	2	4	26	32
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
