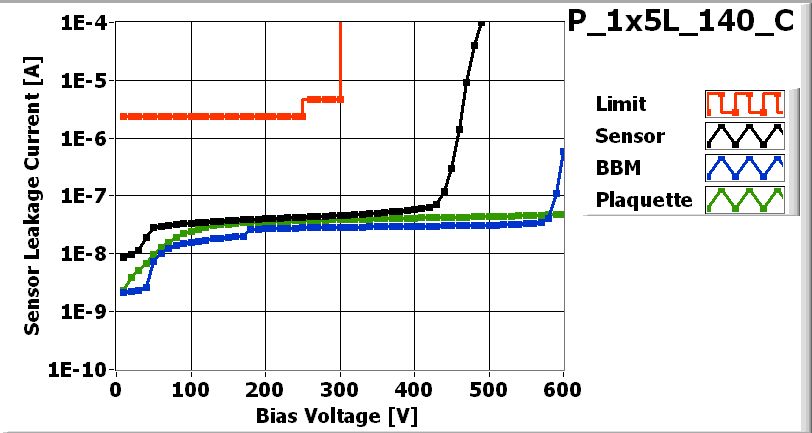

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_140_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Emily Grace on date 6/1/2007
| Part | ID |
|---|---|
| BBM | BBM_140-1x5 |
| VHDI | 1x5L_606 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DULQEDT | 64A |
| ROC1 | DULQEDT | 03B |
| ROC2 | DULQEDT | 35A |
| ROC3 | DULQEDT | 55C |
| ROC4 | DULQEDT | 06C |
Inspected by Lockwood Gale on date 6/27/2007
| LR_dev | 0.032 |
| LL_dev | 0.025 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/27/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/27/2007 by Kozak Brian
P_1x5L_140_Con 6/28/2007 1:27 PM
P_1x5L_140_Con 6/28/2007 1:27 PM
PLAQUETTE TESTED on 2007-06-28 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 152 | 156 | 150 | 150 | 158 | |
| Vana | 153 | 149 | 127 | 155 | 144 | |
| Cal_Del | 82 | 77 | 99 | 80 | 91 | |
| Vthrs_Comp | 92 | 92 | 78 | 91 | 89 | |
| Unbumped | 6 | 1 | 1 | 0 | 43 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 6 | 1 | 1 | 0 | 43 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_140_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_140_C_Vana.jpg) |

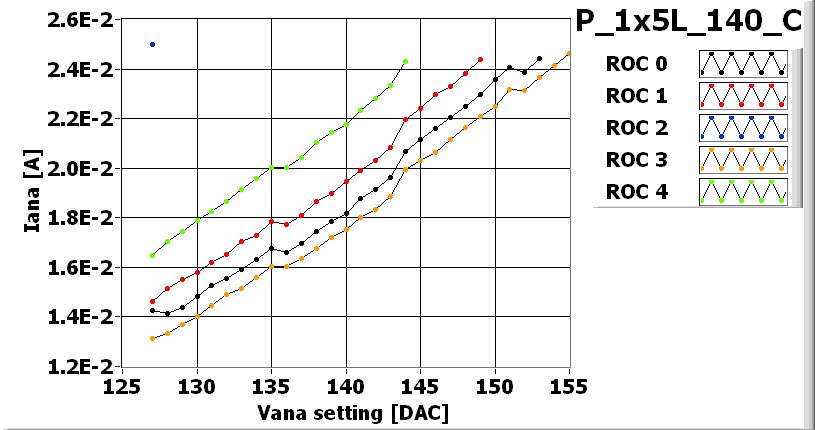

VANA_XML-File |
![[IMAGE] of](P_1x5L_140_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_140_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_140_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_140_Cno-bump-light.jpg) |

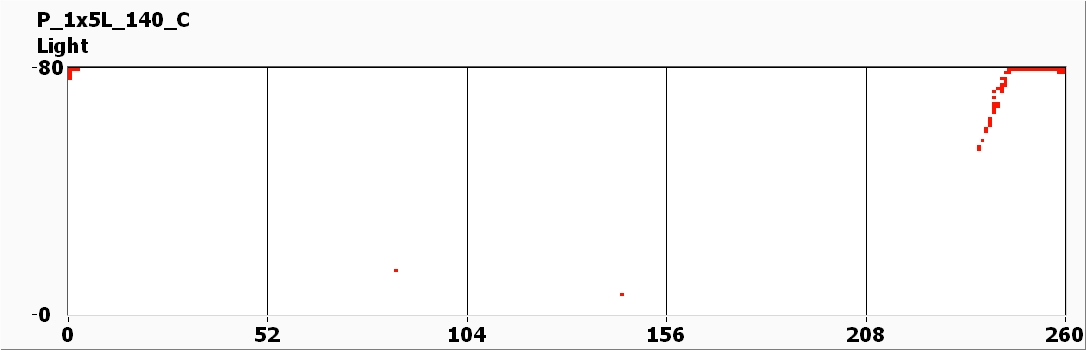

LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 105 | 95 | 95 |
| Vsf | 150 | 145 | 140 | 150 | 145 |
| VoffsetOp | 110 | 125 | 85 | 115 | 120 |
| VIbias_PH | 105 | 100 | 95 | 95 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5L_140_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5L_140_C-580-efficiency.jpg)

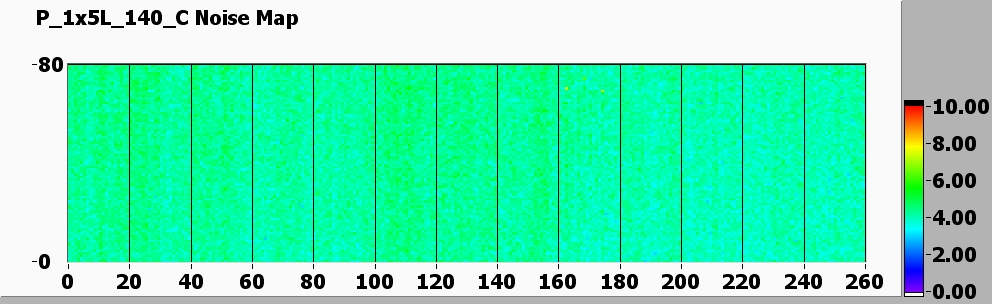

Noise MAP at -200 V
![[IMAGE] of](P_1x5L_140_C-200-noise.jpg)

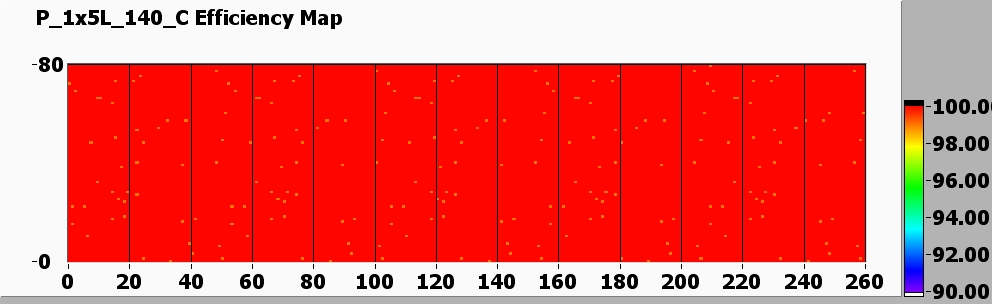

Efficiency MAP
![[IMAGE] of](P_1x5L_140_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
