![[IMAGE] of](P_1x5L_126_C_IV.jpg)

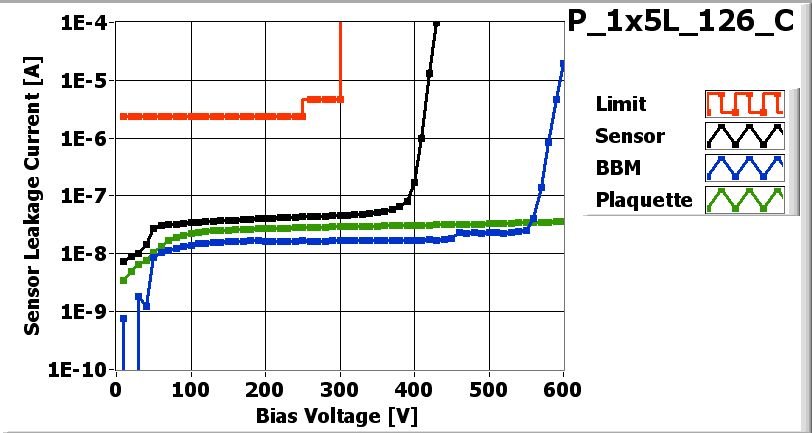

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_126_C_LASER.jpg)

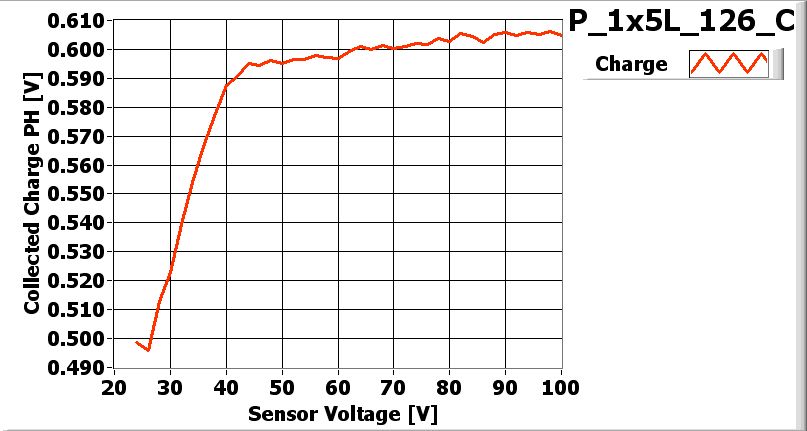

| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_126-1x5 |
| VHDI | 1x5L_603 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 41D |
| ROC1 | KBNG0QT | 21A |
| ROC2 | KBNG0QT | 21C |
| ROC3 | KBNG0QT | 20A |
| ROC4 | KBNG0QT | 11A |
Inspected by Lockwood Gale on date 5/30/2007
| LR_dev | 0.080 |
| LL_dev | 0.081 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems |
PLAQUETTE made READY for ENCAPSULATION on 5/30/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/30/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/30/2007 by Perera Rajiv
P_1x5L_126_Con 6/1/2007 3:05 PM
P_1x5L_126_Con 6/1/2007 3:05 PM
PLAQUETTE TESTED on 2007-06-01 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 162 | 158 | 140 | 162 | 154 | |
| Vana | 148 | 140 | 125 | 132 | 137 | |
| Cal_Del | 75 | 65 | 73 | 84 | 86 | |
| Vthrs_Comp | 89 | 83 | 81 | 81 | 82 | |
| Unbumped | 0 | 0 | 1 | 1 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_126_C_Ibias-dac.jpg) |

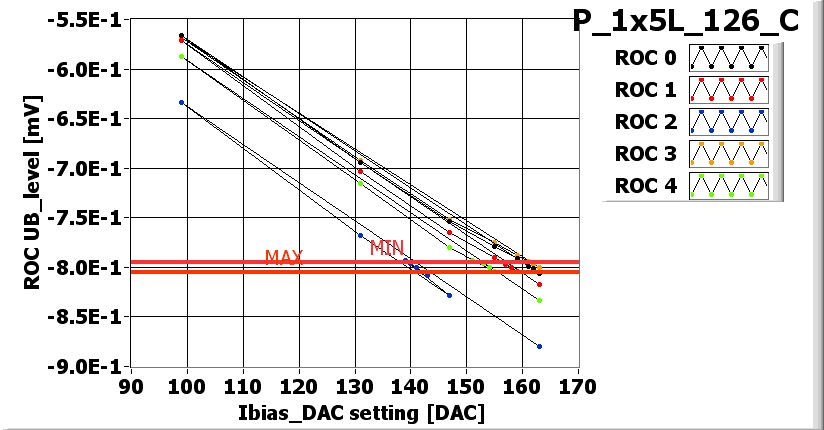

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_126_C_Vana.jpg) |

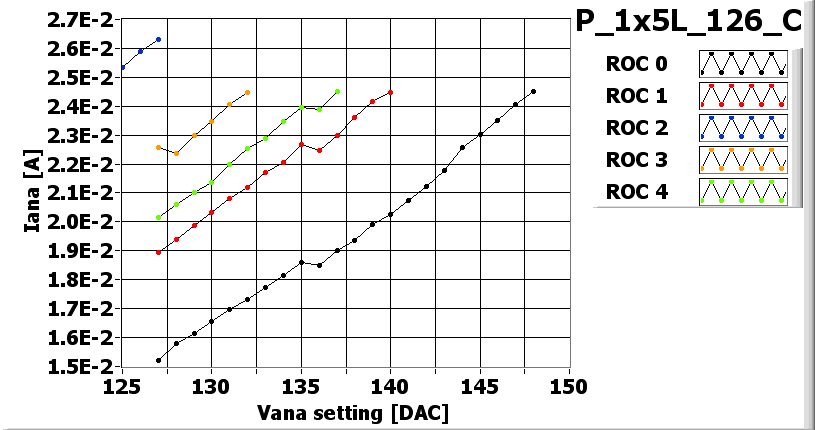

VANA_XML-File |
![[IMAGE] of](P_1x5L_126_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_126_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_126_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_126_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 85 | 115 | 110 | 110 |
| Vsf | 145 | 140 | 140 | 140 | 140 |
| VoffsetOp | 120 | 85 | 70 | 100 | 105 |
| VIbias_PH | 95 | 95 | 95 | 100 | 95 |

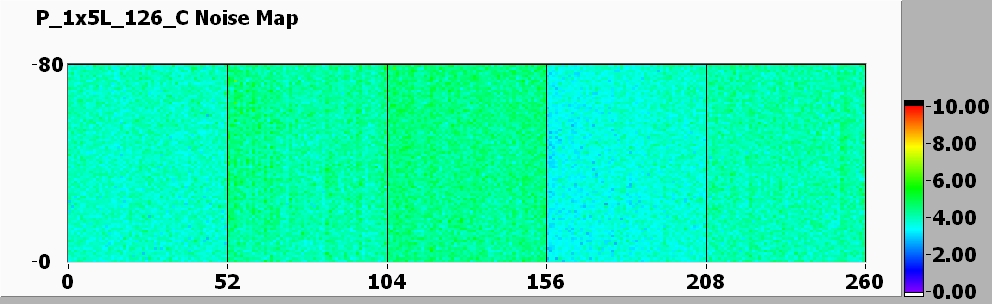

Noise MAP at VMAX
![[IMAGE] of](P_1x5L_126_C-580-noise.jpg)

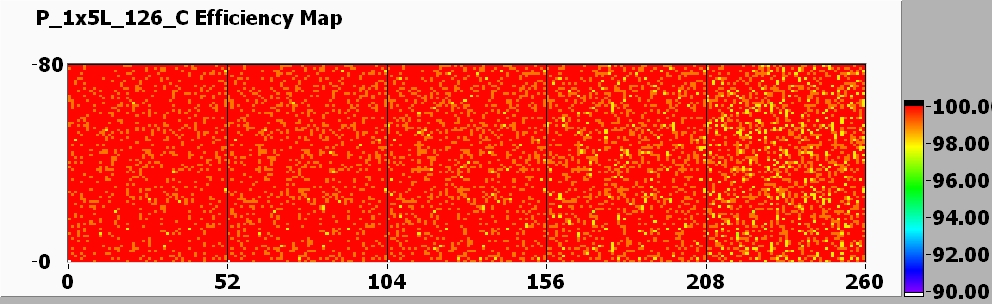

Efficiency MAP
![[IMAGE] of](P_1x5L_126_C-580-efficiency.jpg)

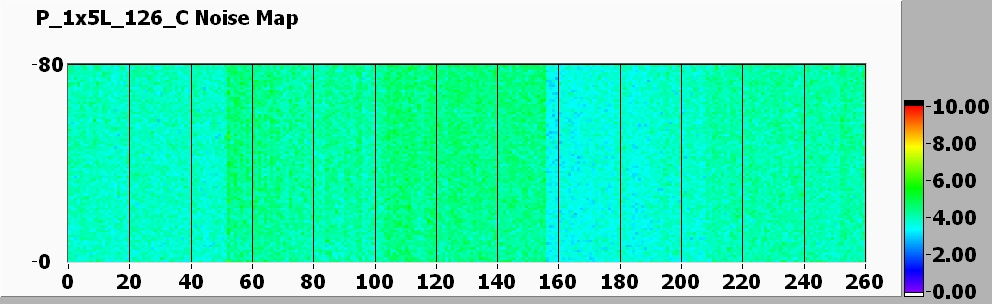

Noise MAP at -200 V
![[IMAGE] of](P_1x5L_126_C-200-noise.jpg)

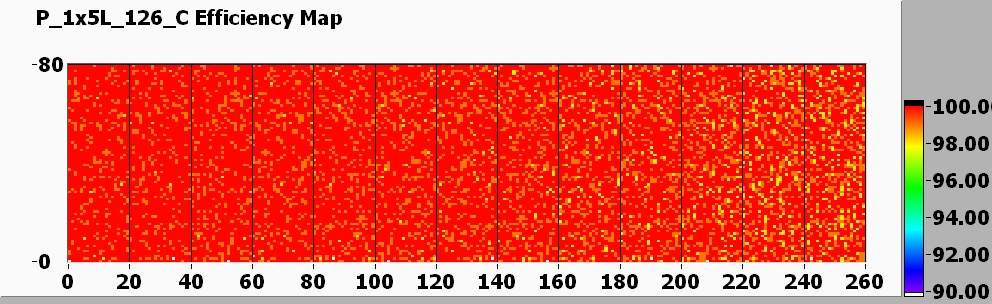

Efficiency MAP
![[IMAGE] of](P_1x5L_126_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
