P_1x5L_081_A
Parts committed by Bolla Gino on date 12/13/2006
| ROC | ROC wafer | Label |
|---|
| ROC0 | W32_XA4K5NT | 63D |
| ROC1 | W32_XA4K5NT | 63A |
| ROC2 | W32_XA4K5NT | 62C |
| ROC3 | W32_XA4K5NT | 62B |
| ROC4 | W32_XA4K5NT | 61D |
Inspected by Arndt Kirk on date 12/15/2006
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for testing on 12/15/2006 by Arndt Kirk
P_1x5L_081_Aon 12/15/2006 2:08 PM
P_1x5L_081_A-1on 12/15/2006 2:26 PM
PLAQUETTE TESTED on 2006-12-15 by Petra Merkel
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 146 | 139 | 141 | 129 | 144 | |
| Vana | 147 | 141 | 138 | 127 | 121 | |
| Cal_Del | 87 | 82 | 83 | 82 | 81 | |
| Vthrs_Comp | 83 | 81 | 82 | 67 | 68 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 3 | 41 | 5 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 3 | 41 | 5 | 1 | |
PLAQUETTE READY FOR SHIPPING
![[IMAGE] of](P_1x5L_081_A_IV.jpg)

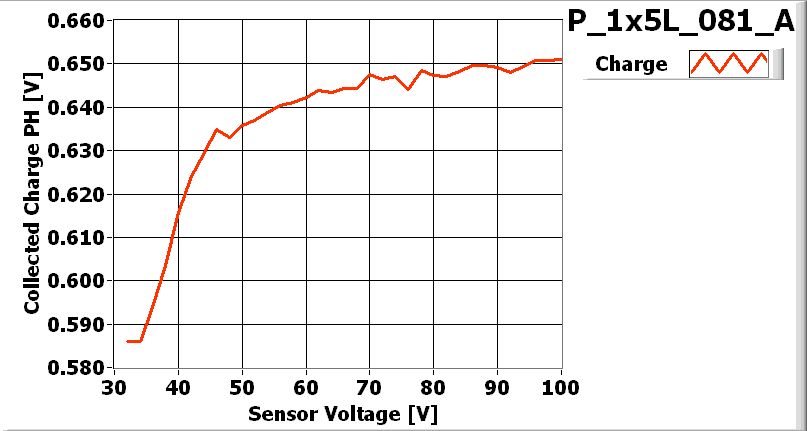

![[IMAGE] of](P_1x5L_081_A_LASER.jpg)
![[IMAGE] of](P_1x5L_081_A_Ibias-dac.jpg)

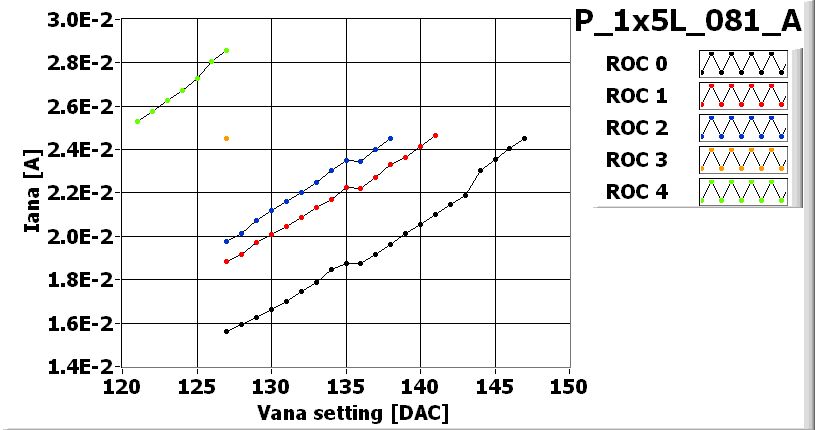

![[IMAGE] of](P_1x5L_081_A_Vana.jpg)
![[IMAGE] of](P_1x5L_081_ADead-PixelAlivetest.jpg){kind=tracking}

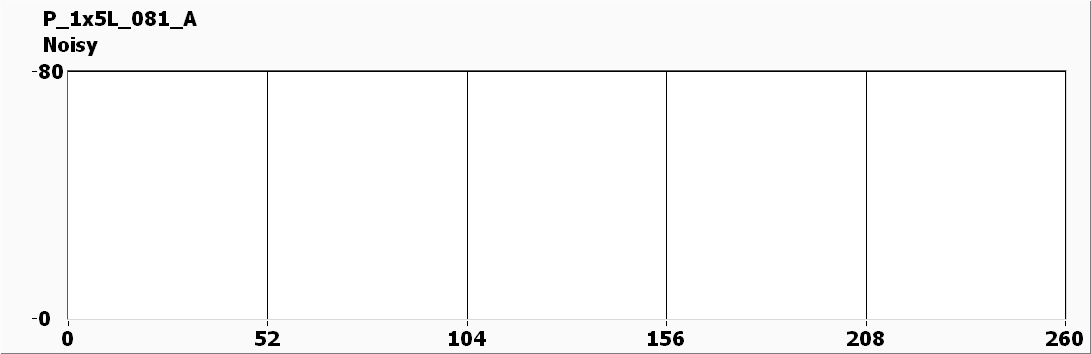

![[IMAGE] of](P_1x5L_081_ANoisy-Pixel-Alive.jpg){kind=tracking}
![[IMAGE] of](P_1x5L_081_AUndecoded-PixelAlivetest.jpg){kind=tracking}

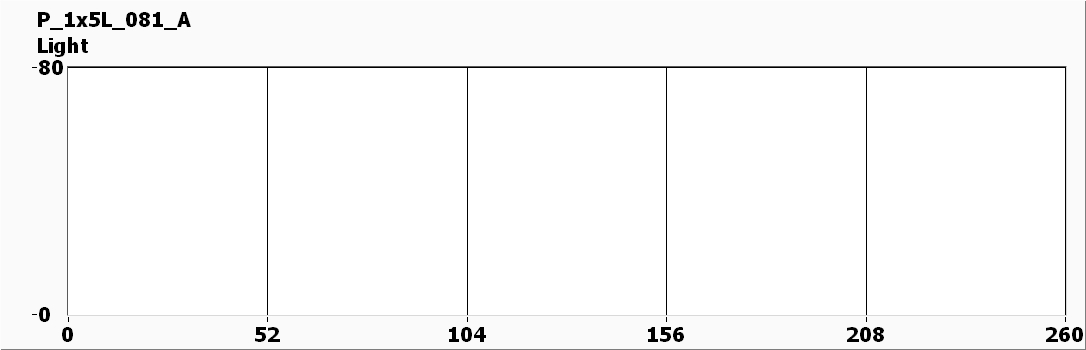

![[IMAGE] of](P_1x5L_081_Ano-bump-light.jpg)
