P_1x5L_079_A
Parts committed by Arndt Kirk on date 12/8/2006
| ROC | ROC wafer | Label |
|---|
| ROC0 | XF4K3JT | 14C |
| ROC1 | XF4K3JT | 14B |
| ROC2 | XF4K3JT | 14A |
| ROC3 | XF4K3JT | 13C |
| ROC4 | XF4K3JT | 13B |
Inspected by Arndt Kirk on date 12/11/2006
| FINAL COMMENT by Arndt Kirk | No assembly problems No wirebond problems. |
PLAQUETTE made READY for testing on 12/11/2006 by Arndt Kirk
P_1x5L_079_Aon 12/12/2006 10:41 AM
PLAQUETTE TESTED on 2006-12-12 by Petra Merkel
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |

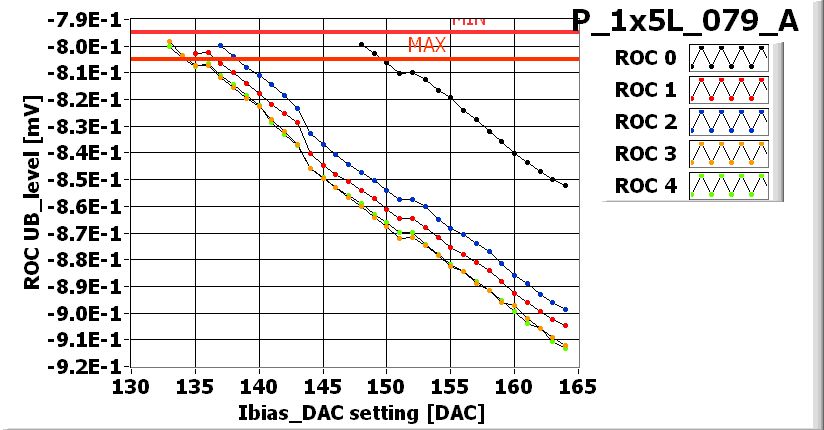

| Ibias_DAC | 148 | 135 | 137 | 133 | 133 | |
| Vana | 116 | 133 | 140 | 132 | 140 | |
| Cal_Del | 63 | 68 | 78 | 84 | 82 | |
| Vthrs_Comp | 85 | 86 | 79 | 79 | 74 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |

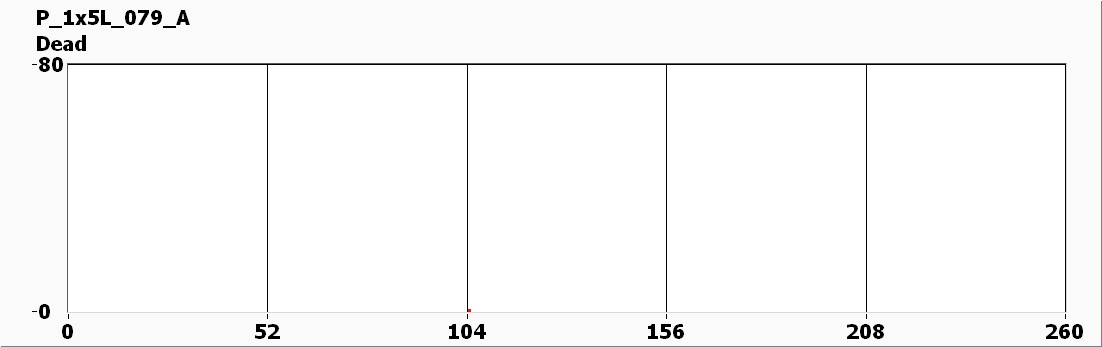

| Dead | 0 | 0 | 1 | 0 | 0 | |

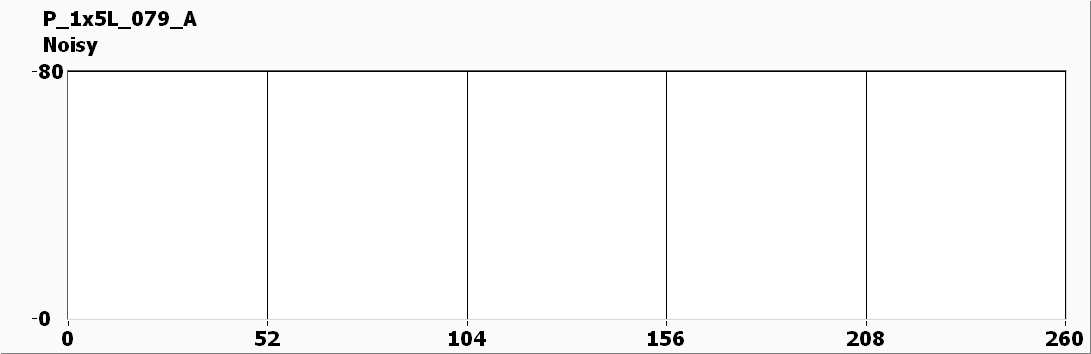

| Noisy | 0 | 0 | 0 | 0 | 0 | |

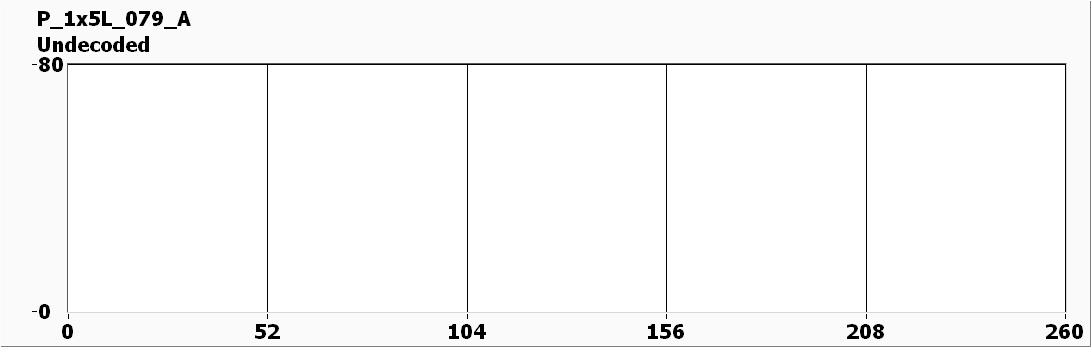

| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | |
PLAQUETTE READY FOR SHIPPING

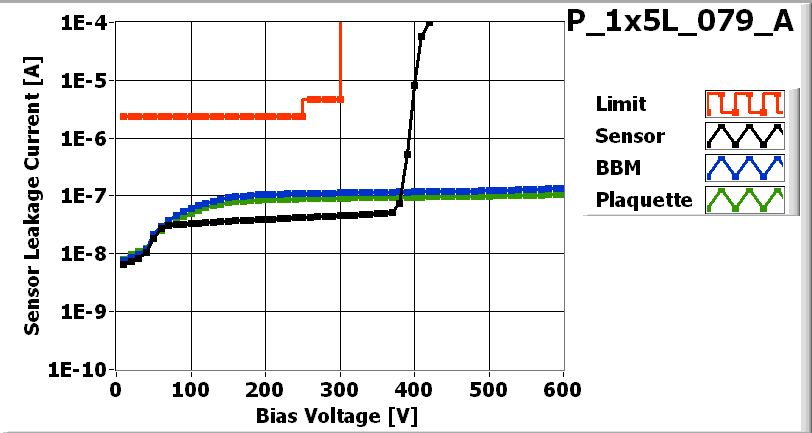

![[IMAGE] of](P_1x5L_079_A_IV.jpg)

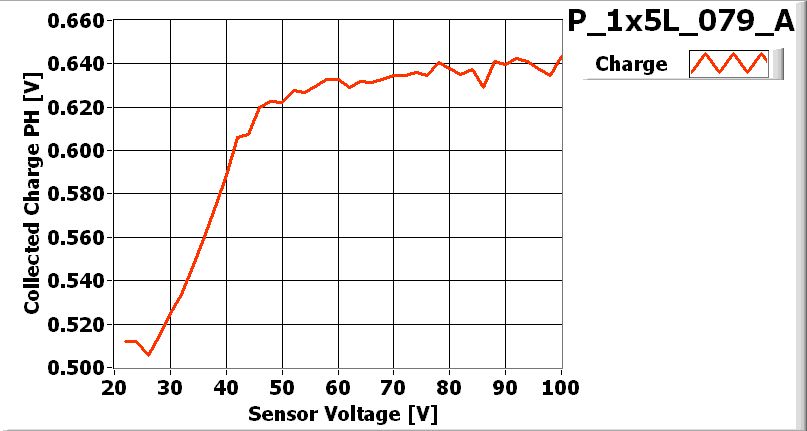

![[IMAGE] of](P_1x5L_079_A_LASER.jpg)
![[IMAGE] of](P_1x5L_079_A_Ibias-dac.jpg)
![[IMAGE] of](P_1x5L_079_A_Vana.jpg)
![[IMAGE] of](P_1x5L_079_ADead-PixelAlivetest.jpg){kind=tracking}
![[IMAGE] of](P_1x5L_079_ANoisy-Pixel-Alive.jpg){kind=tracking}
![[IMAGE] of](P_1x5L_079_AUndecoded-PixelAlivetest.jpg){kind=tracking}
![[IMAGE] of](P_1x5L_079_Ano-bump-light.jpg)
