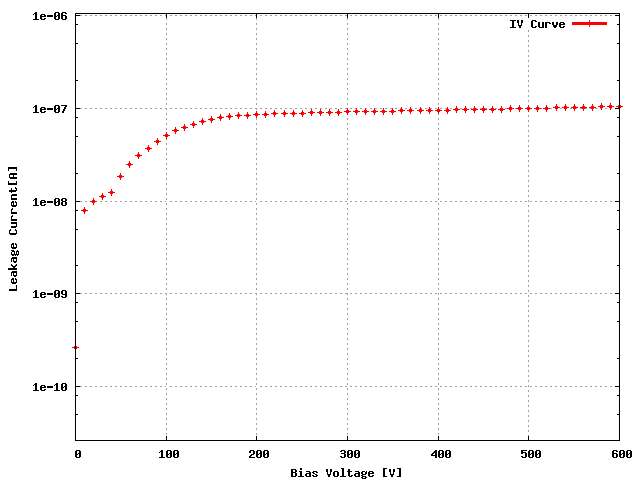

Sensor: S_1x5L_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XF4K3JT | 14C |
| ROC1 | XF4K3JT | 14B |
| ROC2 | XF4K3JT | 14A |
| ROC3 | XF4K3JT | 13C |
| ROC4 | XF4K3JT | 13B |
| Ibias_DAC, Ibias_DAC Data | 148 | 135 | 137 | 133 | 133 |
| Vana, VanaData | 116 | 133 | 140 | 132 | 140 |
| CalDelData and plots | 63 | 68 | 78 | 84 | 82 |
| VthrCompData and plots | 85 | 86 | 79 | 79 | 74 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 1 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Perfect plaquette.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 11:01 AM
