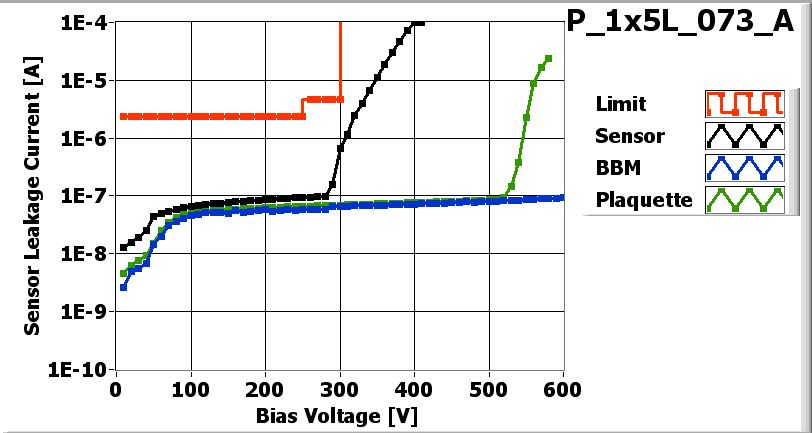

![[IMAGE] of](P_1x5L_073_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 580 V |

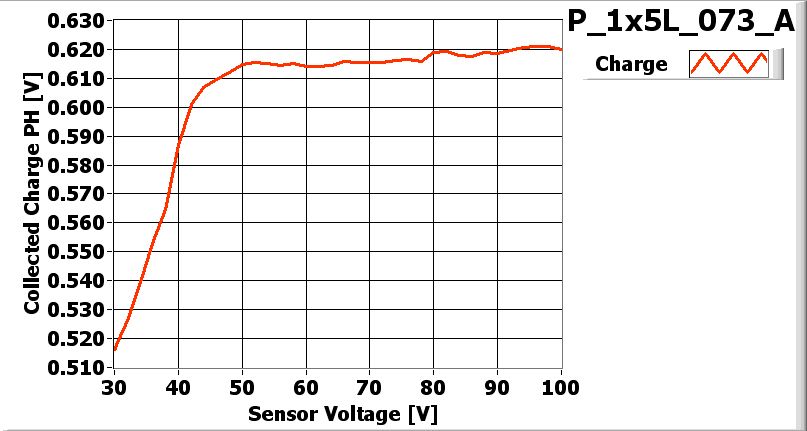

![[IMAGE] of](P_1x5L_073_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 5/22/2007
| Part | ID |
|---|---|
| BBM | BBM_073-1x5 |
| VHDI | 1x5L_312 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W45_D3LQFLT | 52C |
| ROC1 | W45_D3LQFLT | 52A |
| ROC2 | W45_D3LQFLT | 68C |
| ROC3 | W45_D3LQFLT | 67C |
| ROC4 | W45_D3LQFLT | 67B |
Inspected by Lockwood Gale on date 6/15/2007
| LR_dev | 0.081 |
| LL_dev | 0.018 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/15/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/15/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 6/15/2007 by Ozhan Koybasi
P_1x5L_073_Aon 6/18/2007 11:42 AM
P_1x5L_073_Aon 6/18/2007 11:42 AM
PLAQUETTE TESTED on 2007-06-18 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 150 | 158 | 146 | 154 | 148 | |
| Vana | 148 | 149 | 124 | 132 | 132 | |
| Cal_Del | 95 | 77 | 102 | 94 | 100 | |
| Vthrs_Comp | 83 | 88 | 75 | 82 | 76 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | |
| Dead | 14 | 2 | 12 | 0 | 2 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 14 | 2 | 12 | 0 | 3 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

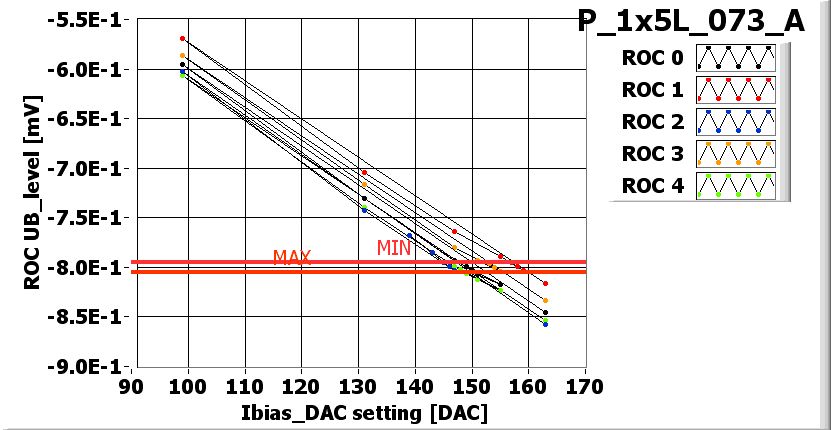

![[IMAGE] of](P_1x5L_073_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

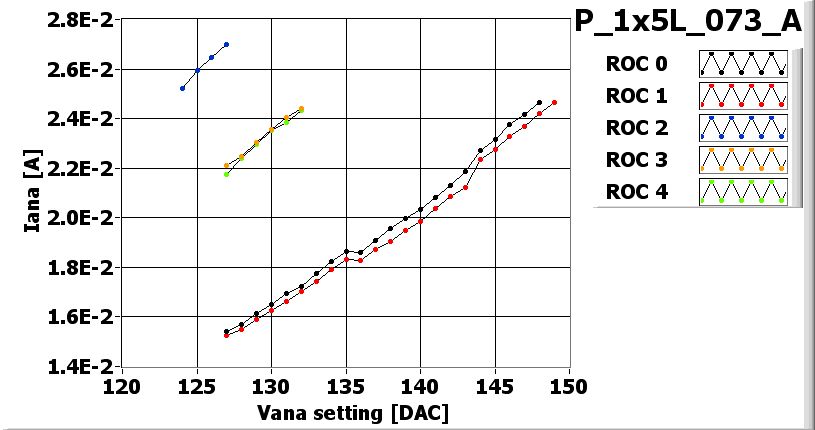

![[IMAGE] of](P_1x5L_073_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_073_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_073_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_073_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_073_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 85 | 120 | 100 | 110 |
| Vsf | 150 | 155 | 140 | 140 | 140 |
| VoffsetOp | 100 | 105 | 80 | 90 | 95 |
| VIbias_PH | 100 | 95 | 95 | 100 | 105 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5L_073_A-560-noise.jpg)

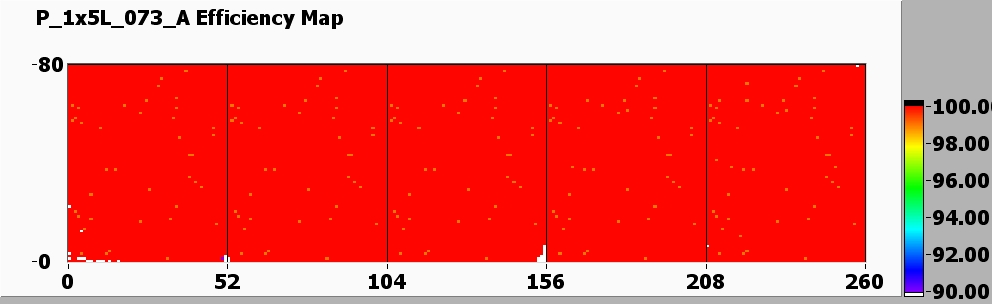

Efficiency MAP
![[IMAGE] of](P_1x5L_073_A-560-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x5L_073_A-200-noise.jpg)

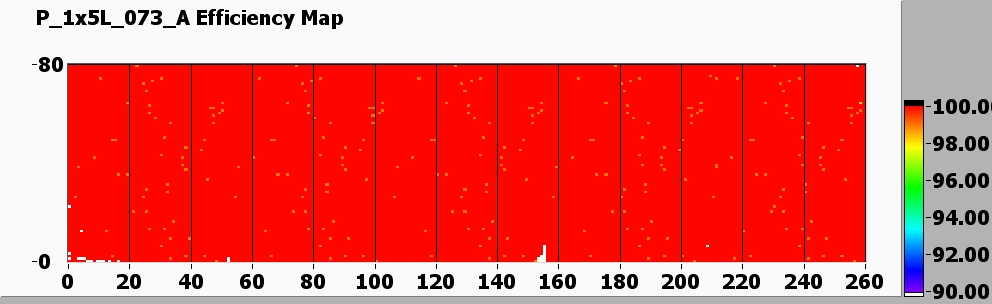

Efficiency MAP
![[IMAGE] of](P_1x5L_073_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
