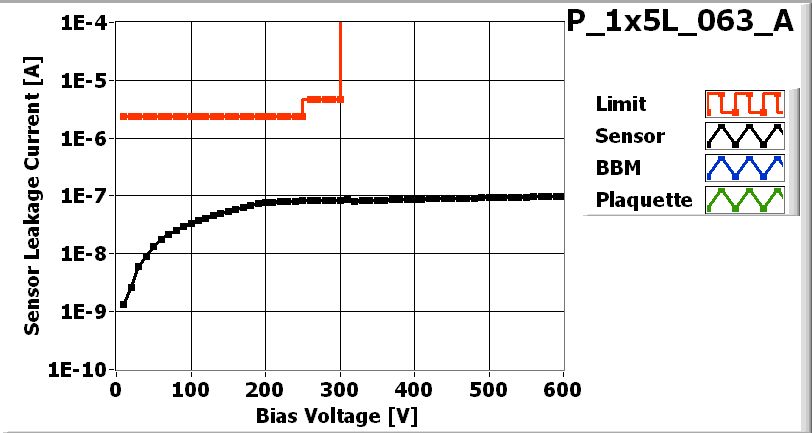

![[IMAGE] of](P_1x5L_063_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

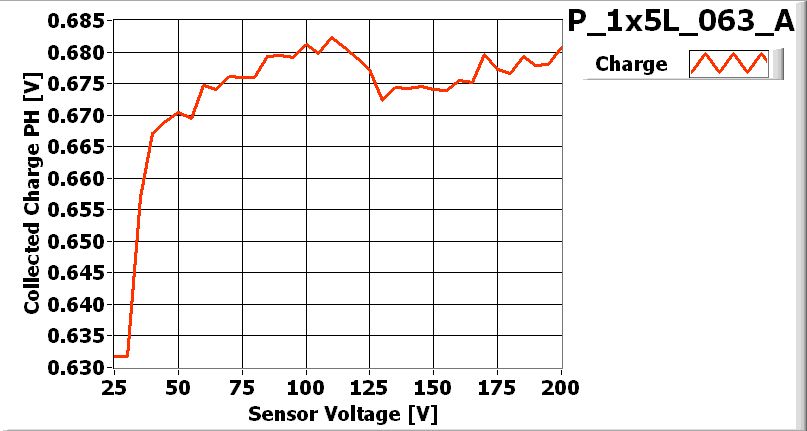

![[IMAGE] of](P_1x5L_063_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 40 V |
| Operational Voltage 80 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_063-1x5 |
| VHDI | 1x5L_204 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 53D |
| ROC1 | X74JP0T | 53B |
| ROC2 | X74JP0T | 52C |
| ROC3 | X74JP0T | 52B |
| ROC4 | X74JP0T | 52A |
Inspected by Arndt Kirk on date 2006-06-29
| LR_dev | 0.070 |
| LL_dev | 0.003 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-29 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-04 by Bolla Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 161 | 155 | 157 | 161 | 148 | |
| Vana | 137 | 128 | 134 | 117 | 133 | |
| Cal_Del | 68 | 81 | 83 | 85 | 97 | |
| Vthrs_Comp | 88 | 66 | 83 | 74 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 5 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 5 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_063_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

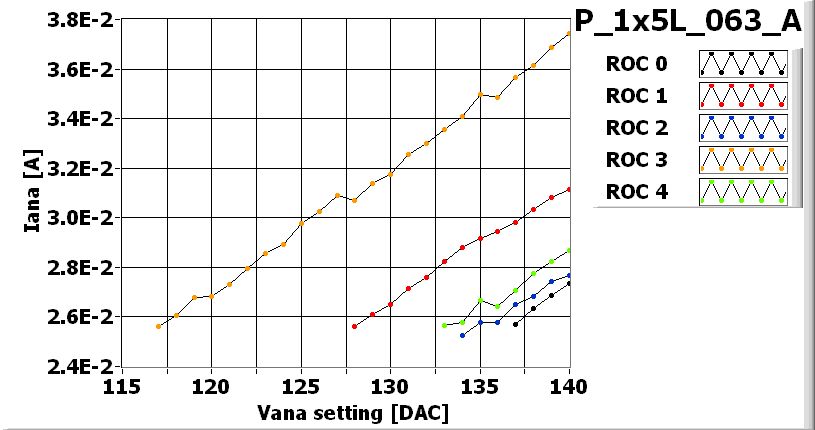

![[IMAGE] of](P_1x5L_063_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_063_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_063_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_063_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_063_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-10
