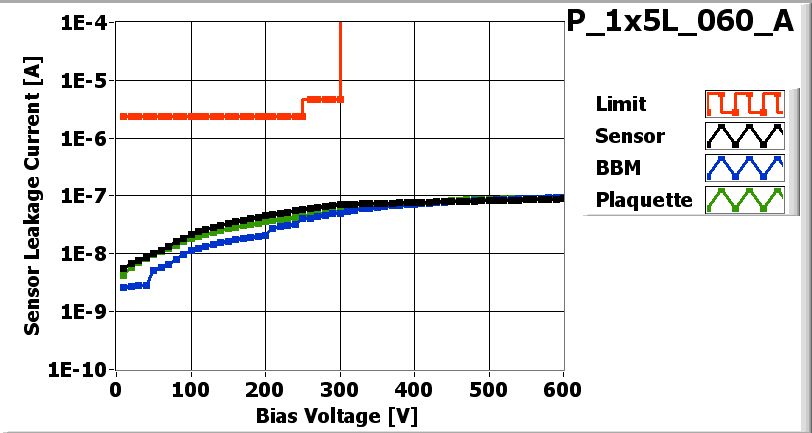

![[IMAGE] of](P_1x5L_060_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

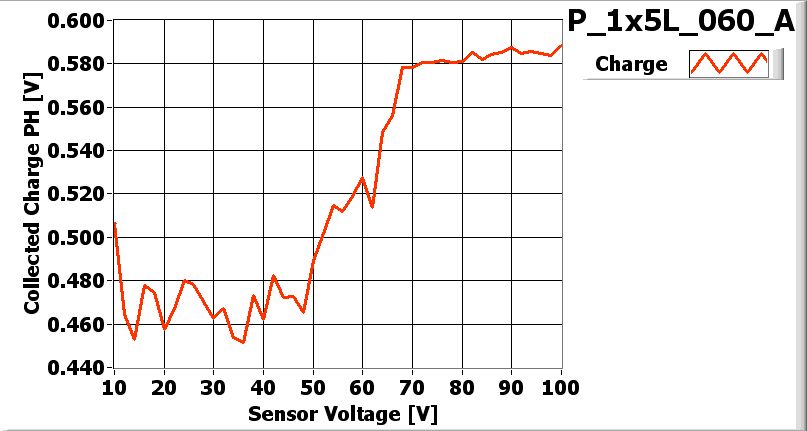

![[IMAGE] of](P_1x5L_060_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 72 V |
| Operational Voltage 112 V |
Parts committed by Isaac Childres on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_060-1x5 |
| VHDI | 1x5L_298 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W46_D3LQC5T | 46B |
| ROC1 | W46_D3LQC5T | 45D |
| ROC2 | W46_D3LQC5T | 45B |
| ROC3 | W46_D3LQC5T | 45A |
| ROC4 | W46_D3LQC5T | 43D |
Inspected by Lockwood Gale on date 6/8/2007
| LR_dev | 0.059 |
| LL_dev | 0.032 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/8/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/8/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/8/2007 by Kozak Brian
P_1x5L_060_Aon 6/11/2007 10:03 AM
P_1x5L_060_Aon 6/11/2007 10:03 AM
PLAQUETTE TESTED on 2007-06-11 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 172 | 150 | 150 | 140 | 156 | |
| Vana | 148 | 148 | 137 | 157 | 131 | |
| Cal_Del | 82 | 87 | 77 | 74 | 82 | |
| Vthrs_Comp | 86 | 86 | 85 | 92 | 89 | |
| Unbumped | 1 | 0 | 0 | 0 | 1 | |
| Dead | 2 | 7 | 9 | 4 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 7 | 9 | 4 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

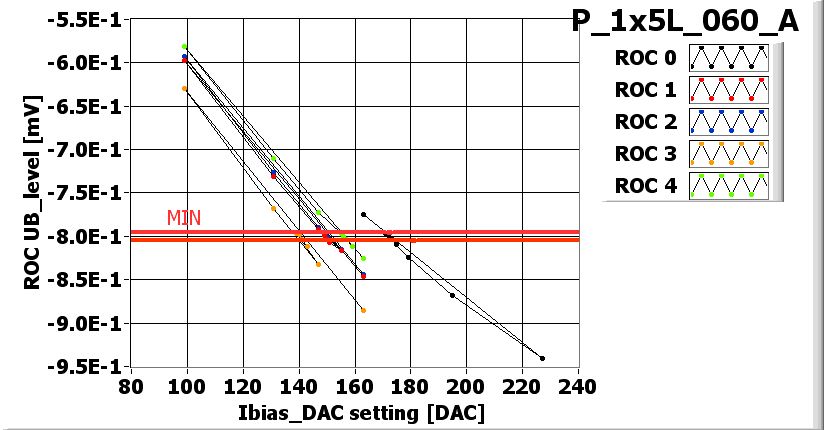

![[IMAGE] of](P_1x5L_060_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

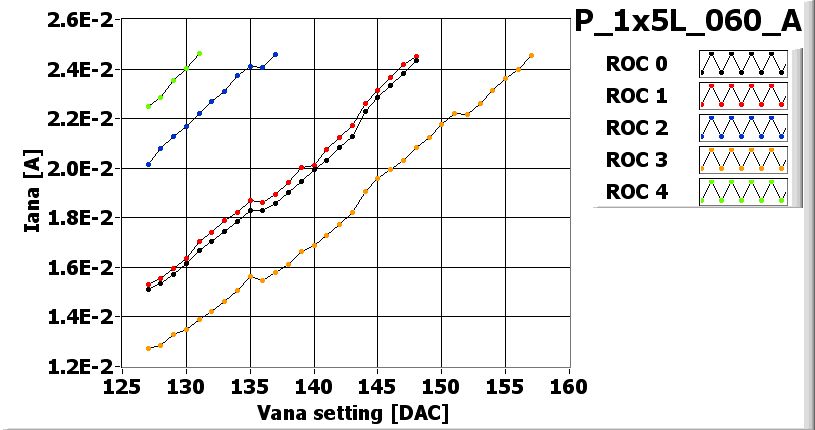

![[IMAGE] of](P_1x5L_060_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_060_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_060_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_060_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_060_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 95 | 105 | 100 | 105 |
| Vsf | 150 | 155 | 140 | 155 | 140 |
| VoffsetOp | 115 | 110 | 100 | 105 | 90 |
| VIbias_PH | 105 | 100 | 105 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_1x5L_060_A-580-noise.jpg)

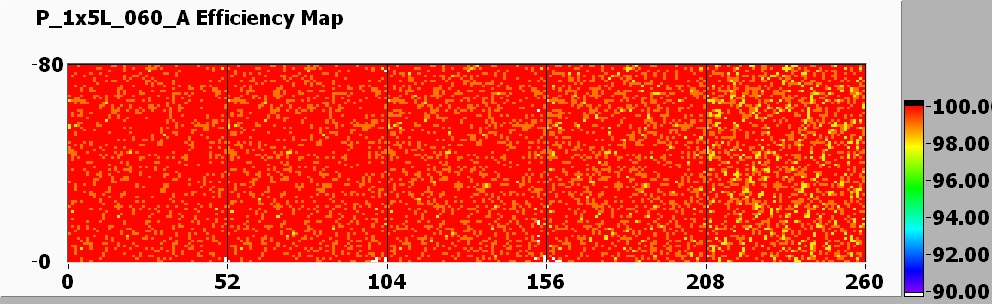

Efficiency MAP
![[IMAGE] of](P_1x5L_060_A-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_1x5L_060_A-200-noise.jpg)

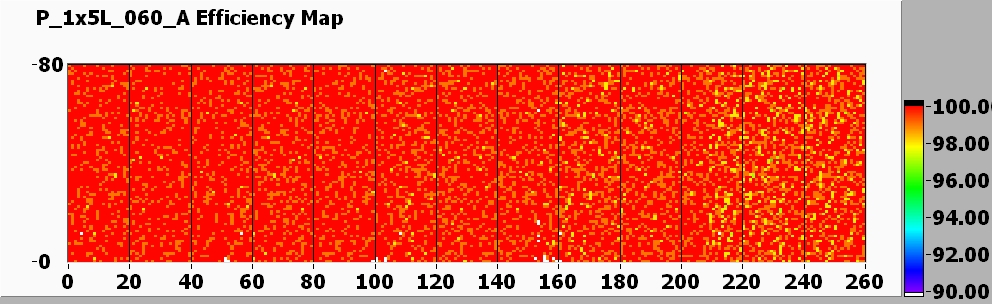

Efficiency MAP
![[IMAGE] of](P_1x5L_060_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
