P_1x5L_060

P_1x5L_060_A

Production testing

Date:6/11/2007

Operator: Emily Grace

start testing time:10:03 AM

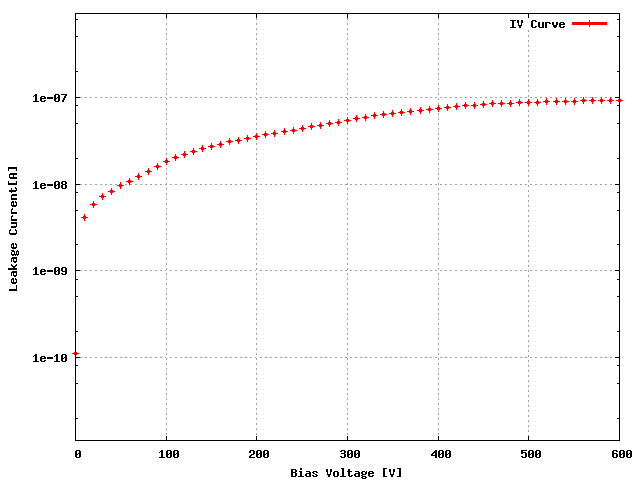

Sensor: S_1x5L_06, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W46_D3LQC5T 46B

ROC1 W46_D3LQC5T 45D

ROC2 W46_D3LQC5T 45B

ROC3 W46_D3LQC5T 45A

ROC4 W46_D3LQC5T 43D

ROC	ROC wafer	Label
ROC0	W46_D3LQC5T	46B
ROC1	W46_D3LQC5T	45D
ROC2	W46_D3LQC5T	45B
ROC3	W46_D3LQC5T	45A
ROC4	W46_D3LQC5T	43D

Depletion Voltage is -72 and suggested operational voltage is -112

Ibias_DAC, Ibias_DAC Data 172 150 150 140 156

Vana, VanaData 148 148 137 157 131

CalDelData and plots 82 87 77 74 82

VthrCompData and plots 86 86 85 92 89

TestDdata ,TestD Plots 0 0 0 0 0

LightData ,Light Plots 1 0 0 0 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	100	95	105	100	105
Vsf	150	155	140	155	140
VoffsetOp	115	110	100	105	90
VIbias_PH	105	100	105	100	100

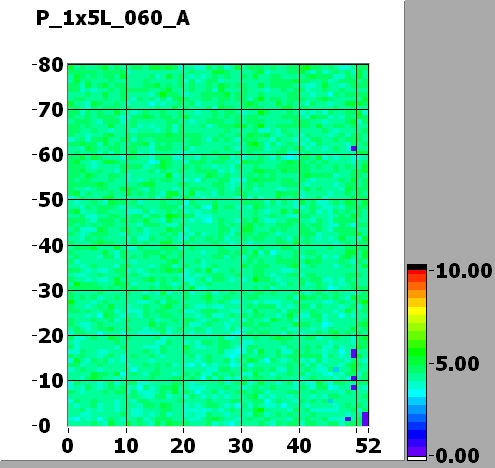

ROC0 NOISE			MEAN = 3.983859 SIGMA = 0.301995
ROC1 NOISE			MEAN = 4.192260 SIGMA = 0.341446
ROC2 NOISE			MEAN = 4.303864 SIGMA = 0.342854

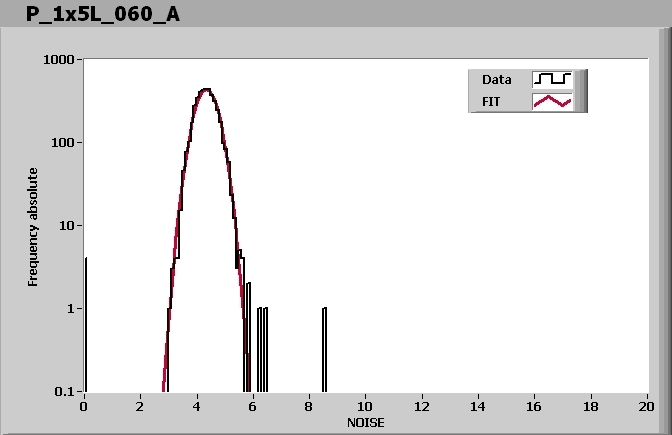

ROC3 NOISE			MEAN = 4.336271 SIGMA = 0.373518
ROC4 NOISE			MEAN = 4.373281 SIGMA = 0.349275

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:28 AM

Ibias_DAC, Ibias_DAC Data	172	150	150	140	156
Vana, VanaData	148	148	137	157	131
CalDelData and plots	82	87	77	74	82
VthrCompData and plots	86	86	85	92	89
TestDdata ,TestD Plots	0	0	0	0	0
LightData ,Light Plots	1	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
