![[IMAGE] of](P_1x5L_047_C_IV.jpg)

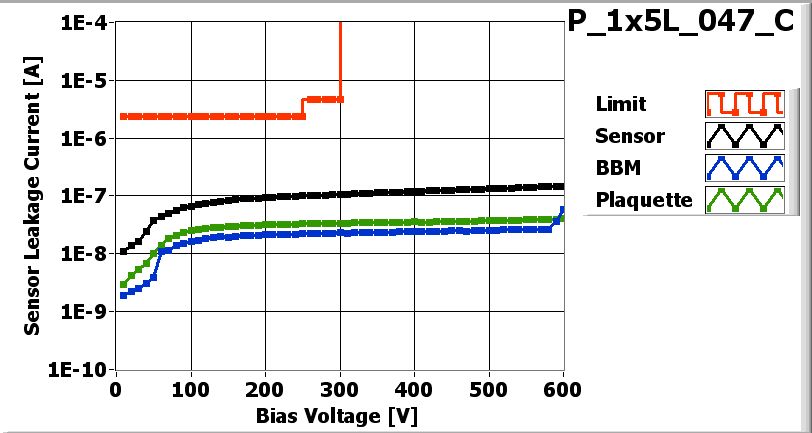

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_047_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_047-1x5 |
| VHDI | 1x5L_248 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 55C |
| ROC1 | XG4KFCT | 54D |
| ROC2 | XG4KFCT | 53D |
| ROC3 | XG4KFCT | 53C |
| ROC4 | XG4KFCT | 52D |
Inspected by Arndt Kirk on date 2/23/2007
| LR_dev | 0.067 |
| LL_dev | 0.084 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 2/23/2007 by Arndt Kirk
PLAQUETTE encapsulated on 2/26/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 2/26/2007 by Arndt Kirk
P_1x5L_047_Con 2/28/2007 12:40 PM
P_1x5L_047_Con 2/28/2007 12:40 PM
PLAQUETTE TESTED on 2007-02-28 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 142 | 128 | 136 | 144 | 130 | |
| Vana | 130 | 124 | 139 | 127 | 121 | |
| Cal_Del | 89 | 84 | 84 | 79 | 88 | |
| Vthrs_Comp | 73 | 71 | 82 | 71 | 81 | |
| Unbumped | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_047_C_Ibias-dac.jpg) |

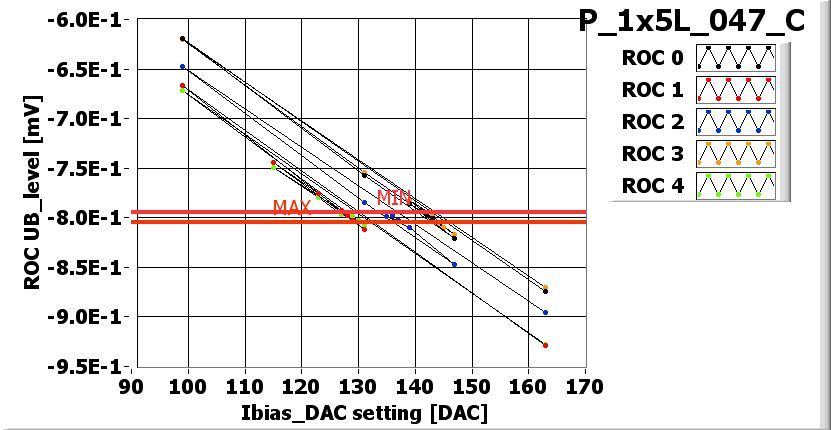

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_047_C_Vana.jpg) |

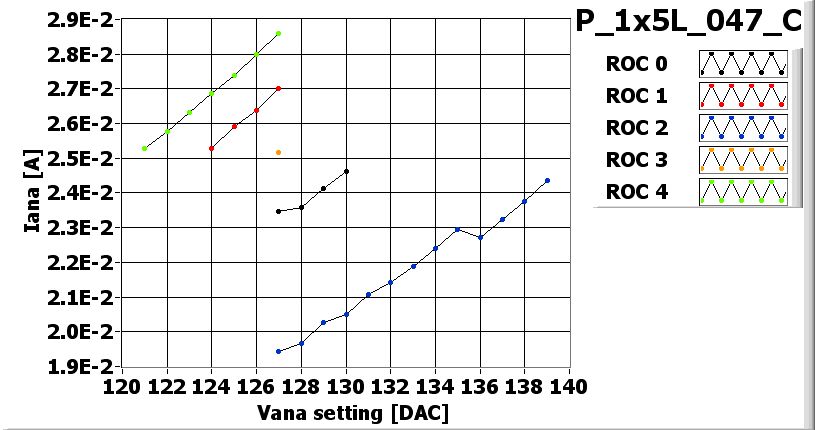

VANA_XML-File |
![[IMAGE] of](P_1x5L_047_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_047_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_047_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_047_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 135 | 140 | 100 | 115 | 150 |
| Vsf | 140 | 135 | 140 | 135 | 140 |
| VoffsetOp | 70 | 55 | 75 | 70 | 65 |
| VIbias_PH | 105 | 105 | 100 | 95 | 100 |
Noise MAP
![[IMAGE] of](P_1x5L_047_C-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5L_047_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
