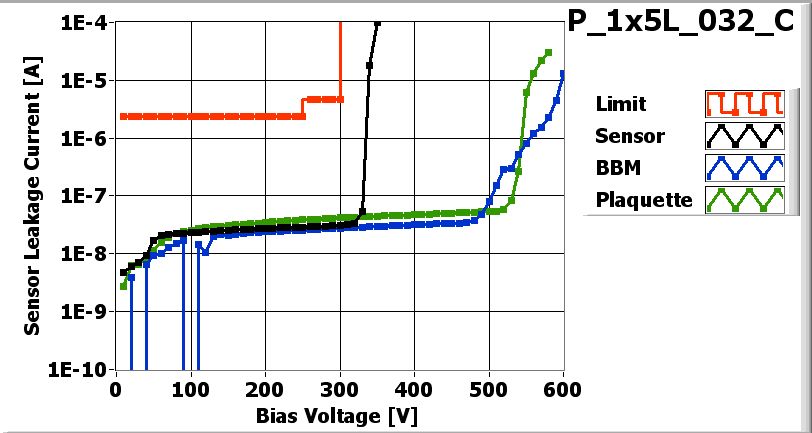

![[IMAGE] of](P_1x5L_032_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 580 V |

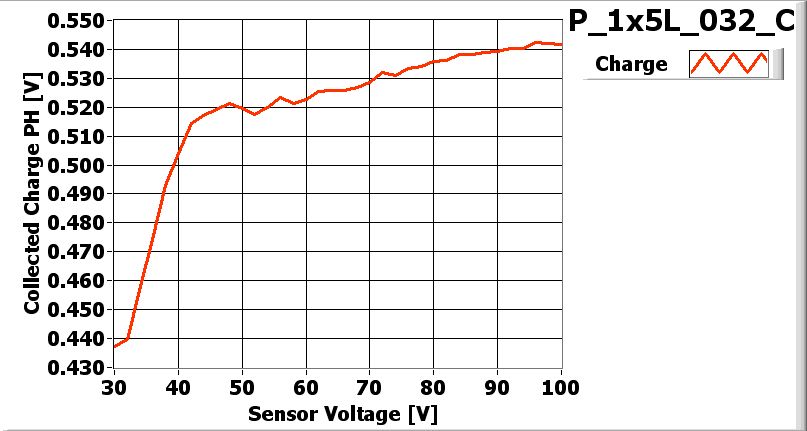

![[IMAGE] of](P_1x5L_032_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_032-1x5 |
| VHDI | 1x5L_260 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 44C |
| ROC1 | XW4KFXT | 46C |
| ROC2 | XW4KFXT | 52D |
| ROC3 | XW4KFXT | 46A |
| ROC4 | XW4KFXT | 45A |
Inspected by Lockwood Gale on date 4/13/2007
| LR_dev | 0.031 |
| LL_dev | 0.077 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE.No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/13/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/13/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/13/2007 by Ozhan Koybasi
PLAQUETTE TESTED on 2007-04-16 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 126 | 126 | 134 | 148 | 138 | |
| Vana | 138 | 130 | 131 | 144 | 124 | |
| Cal_Del | 89 | 97 | 84 | 82 | 90 | |
| Vthrs_Comp | 75 | 73 | 77 | 81 | 76 | |
| Unbumped | 8 | 0 | 0 | 0 | 0 | |
| Dead | 4 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 12 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_032_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

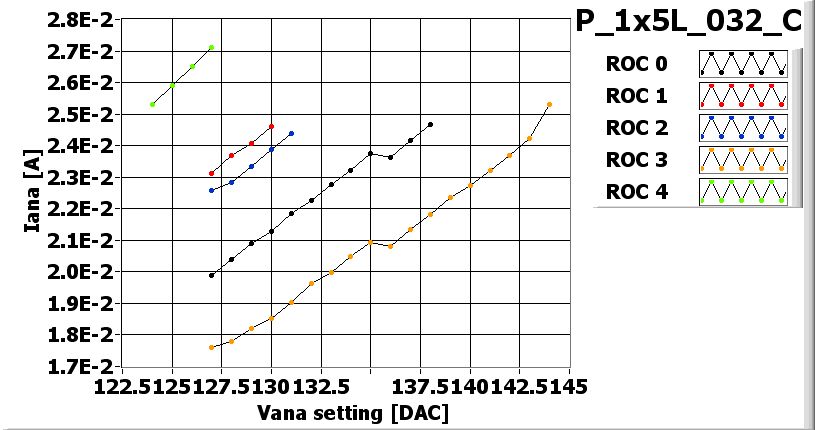

![[IMAGE] of](P_1x5L_032_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_032_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_032_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_032_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_032_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 135 | 115 | 95 | 145 |
| Vsf | 145 | 140 | 135 | 145 | 140 |
| VoffsetOp | 85 | 60 | 65 | 85 | 85 |
| VIbias_PH | 100 | 105 | 100 | 95 | 105 |

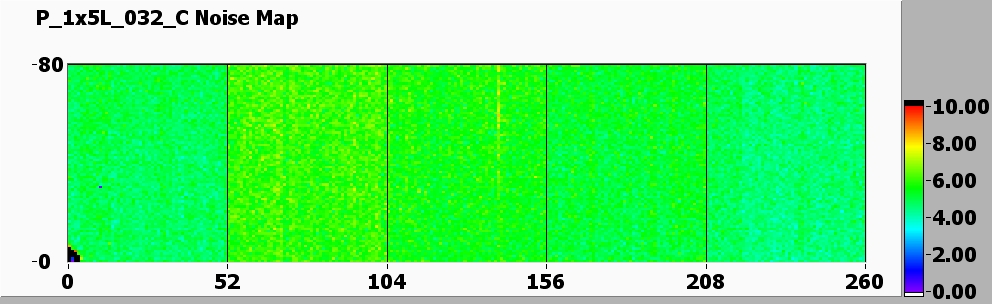

Noise MAP
![[IMAGE] of](P_1x5L_032_C-560-noise.jpg)

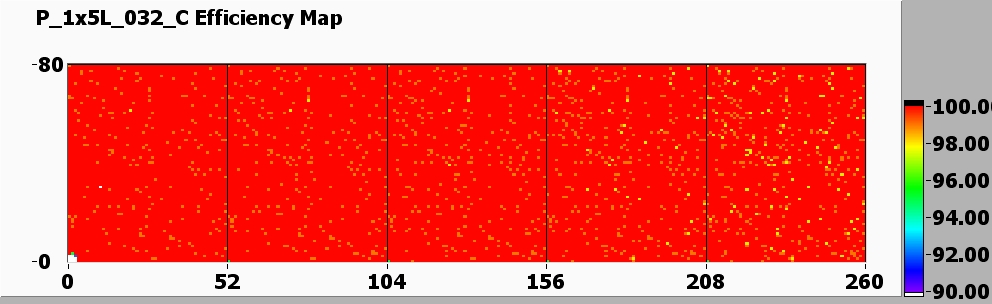

Efficiency MAP
![[IMAGE] of](P_1x5L_032_C-560-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
