P_1x5L_032

P_1x5L_032_C

Production testing

Date:4/16/2007

Operator: Gino Bolla

start testing time:10:15 AM

Sensor: S_1x5L_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 XW4KFXT 44C

ROC1 XW4KFXT 46C

ROC2 XW4KFXT 52D

ROC3 XW4KFXT 46A

ROC4 XW4KFXT 45A

ROC	ROC wafer	Label
ROC0	XW4KFXT	44C
ROC1	XW4KFXT	46C
ROC2	XW4KFXT	52D
ROC3	XW4KFXT	46A
ROC4	XW4KFXT	45A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data 126 126 134 148 138

Vana, VanaData 138 130 131 144 124

CalDelData and plots 89 97 84 82 90

VthrCompData and plots 75 73 77 81 76

TestDdata ,TestD Plots 4 0 1 0 0

LightData ,Light Plots 8 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	135	115	95	145
Vsf	145	140	135	145	140
VoffsetOp	85	60	65	85	85
VIbias_PH	100	105	100	95	105

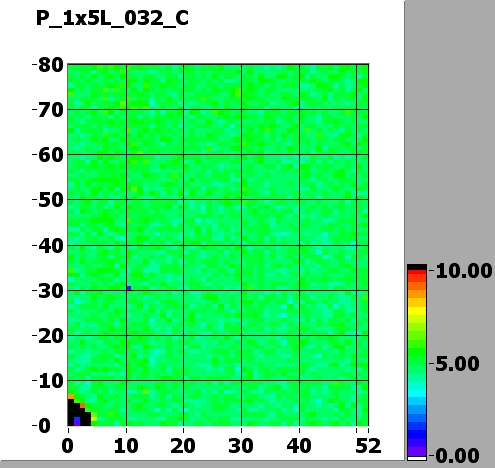

ROC0 NOISE			MEAN = 4.852558 SIGMA = 0.372661

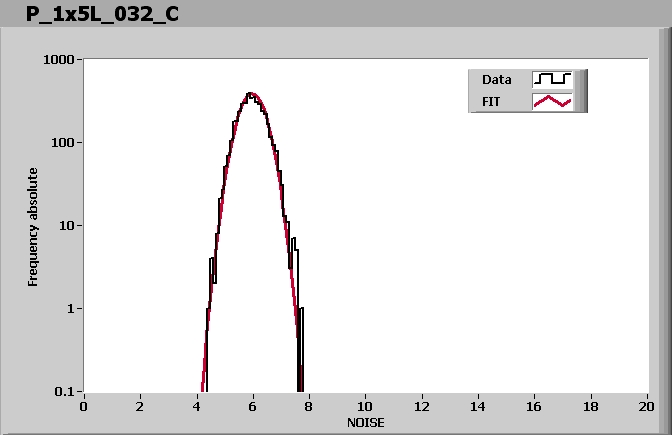

ROC1 NOISE			MEAN = 5.960240 SIGMA = 0.439707
ROC2 NOISE			MEAN = 5.544043 SIGMA = 0.440661

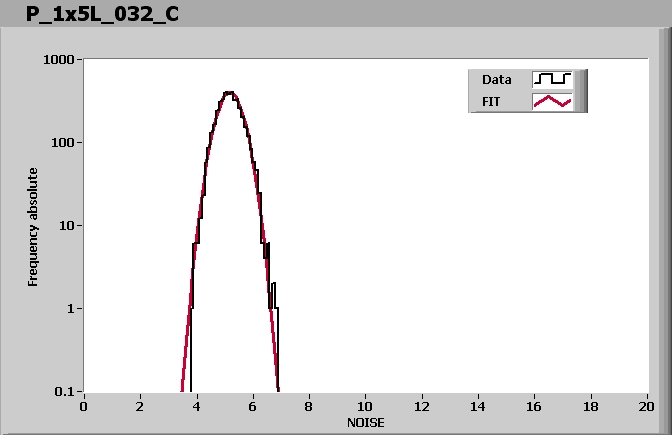

ROC3 NOISE			MEAN = 5.173046 SIGMA = 0.419130

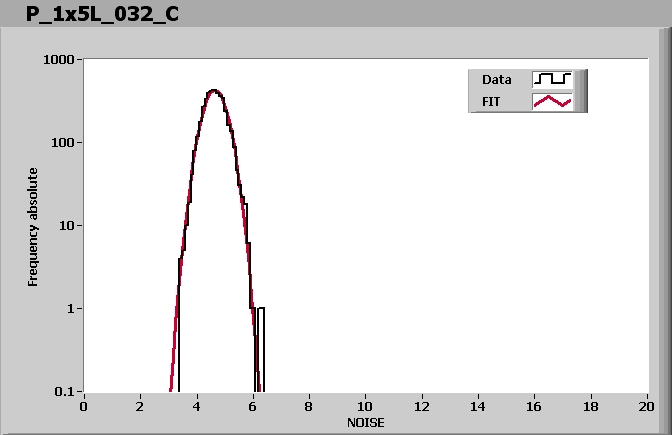

ROC4 NOISE			MEAN = 4.639253 SIGMA = 0.386915

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 10:33 AM

Ibias_DAC, Ibias_DAC Data	126	126	134	148	138
Vana, VanaData	138	130	131	144	124
CalDelData and plots	89	97	84	82	90
VthrCompData and plots	75	73	77	81	76
TestDdata ,TestD Plots	4	0	1	0	0
LightData ,Light Plots	8	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
