| IV_XML-File |
| Maximum Voltage 600 V |

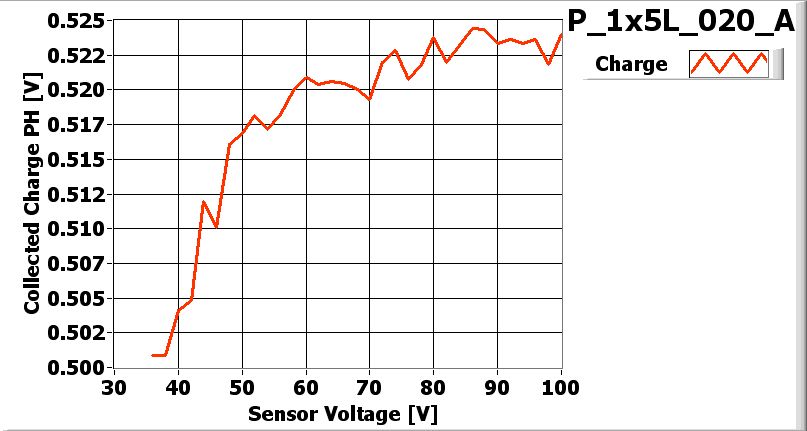

![[IMAGE] of](P_1x5L_020_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 56 V |
| Operational Voltage 96 V |
Parts committed by Arndt Kirk on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_020-1x5 |
| VHDI | 1x5L_285 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 23C |
| ROC1 | W49_D1LQG5T | 23B |
| ROC2 | W49_D1LQG5T | 23A |
| ROC3 | W49_D1LQG5T | 22D |
| ROC4 | W49_D1LQG5T | 22B |
Inspected by Lockwood Gale on date 5/17/2007
| LR_dev | 0.050 |
| LL_dev | 0.041 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before joining force was released. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/17/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/17/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/17/2007 by Perera Rajiv
P_1x5L_020_Aon 5/18/2007 11:00 AM
P_1x5L_020_Aon 5/18/2007 11:00 AM
PLAQUETTE TESTED on 2007-05-18 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 136 | 142 | 150 | 156 | 140 | |
| Vana | 143 | 144 | 134 | 147 | 148 | |
| Cal_Del | 92 | 83 | 96 | 96 | 83 | |
| Vthrs_Comp | 93 | 81 | 75 | 88 | 82 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 2 | 3 | 13 | 3 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 2 | 3 | 13 | 3 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

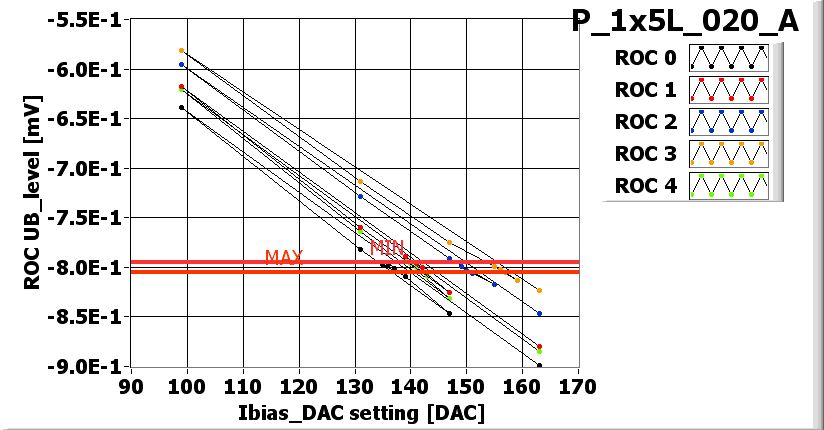

![[IMAGE] of](P_1x5L_020_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_020_A_Vana.jpg) |
VANA_XML-File |

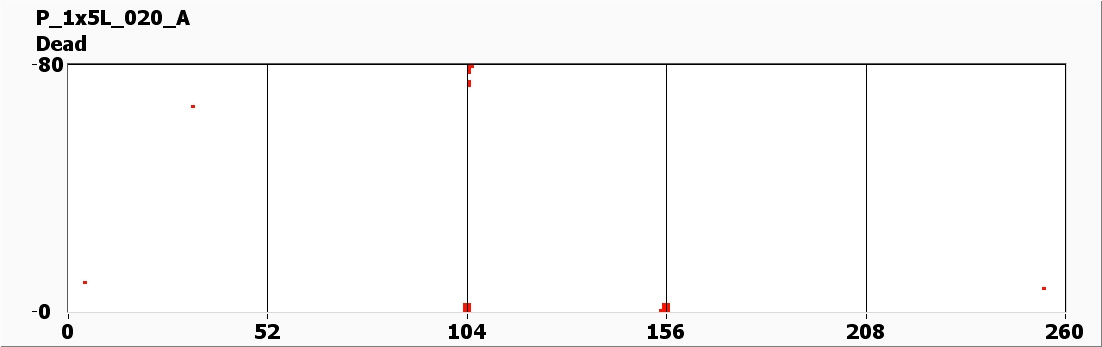

![[IMAGE] of](P_1x5L_020_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_020_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_020_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_020_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 95 | 90 | 100 | 100 |
| Vsf | 145 | 150 | 140 | 150 | 150 |
| VoffsetOp | 95 | 110 | 80 | 95 | 90 |
| VIbias_PH | 105 | 95 | 105 | 100 | 100 |

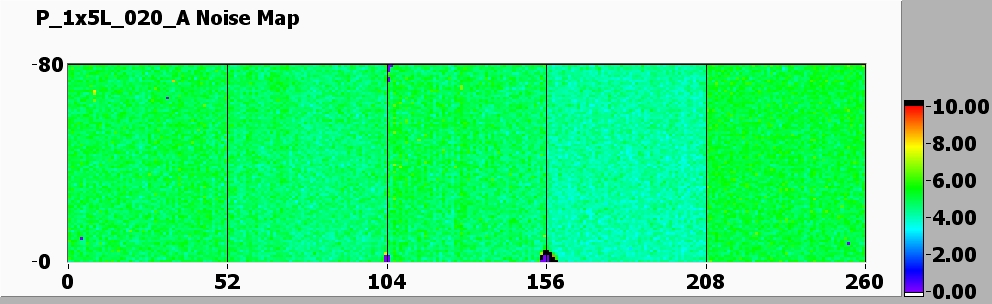

Noise MAP at VMAX
![[IMAGE] of](P_1x5L_020_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_1x5L_020_A-580-efficiency.jpg)

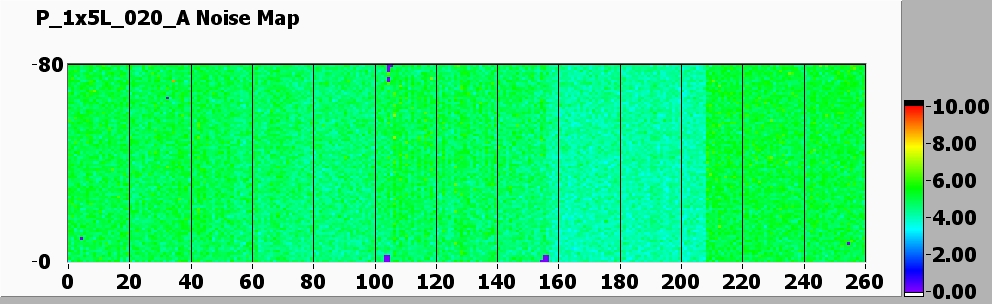

Noise MAP at -200 V
![[IMAGE] of](P_1x5L_020_A-200-noise.jpg)

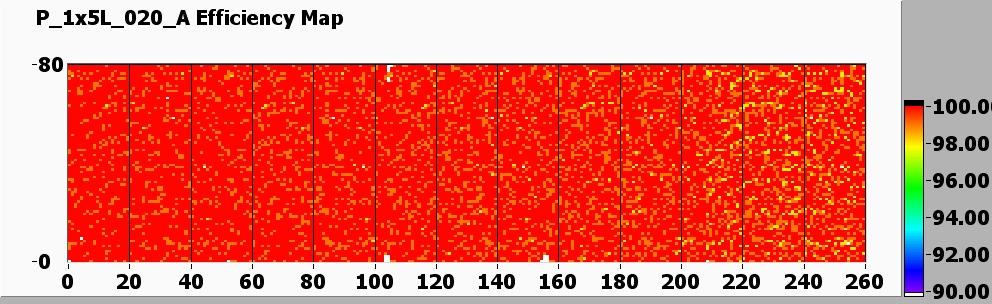

Efficiency MAP
![[IMAGE] of](P_1x5L_020_A-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
