P_1x5L_020

P_1x5L_020_A

Production testing

Date:5/18/2007

Operator: Emily Grace

start testing time:11:00 AM

Sensor: S_1x5L_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W49_D1LQG5T 23C

ROC1 W49_D1LQG5T 23B

ROC2 W49_D1LQG5T 23A

ROC3 W49_D1LQG5T 22D

ROC4 W49_D1LQG5T 22B

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	23C
ROC1	W49_D1LQG5T	23B
ROC2	W49_D1LQG5T	23A
ROC3	W49_D1LQG5T	22D
ROC4	W49_D1LQG5T	22B

Depletion Voltage is -56 and suggested operational voltage is -96

Ibias_DAC, Ibias_DAC Data 136 142 150 156 140

Vana, VanaData 143 144 134 147 148

CalDelData and plots 92 83 96 96 83

VthrCompData and plots 93 81 75 88 82

TestDdata ,TestD Plots 4 3 14 3 1

LightData ,Light Plots 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD

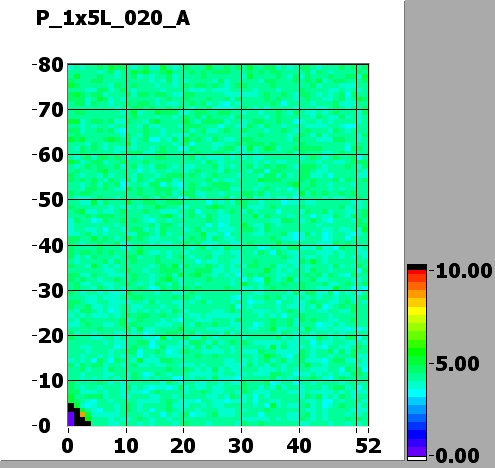

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	95	90	100	100
Vsf	145	150	140	150	150
VoffsetOp	95	110	80	95	90
VIbias_PH	105	95	105	100	100

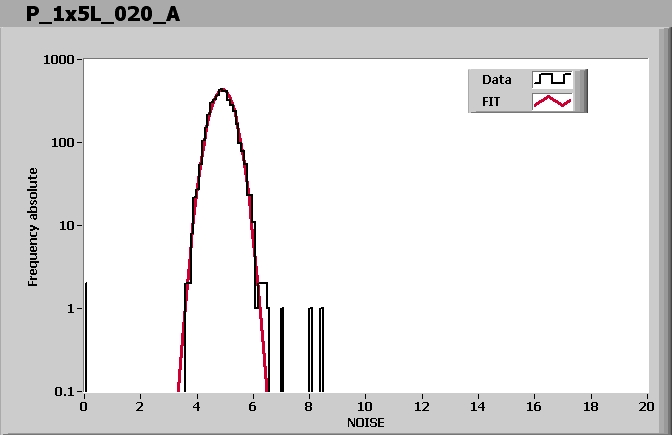

ROC0 NOISE			MEAN = 4.905566 SIGMA = 0.381402

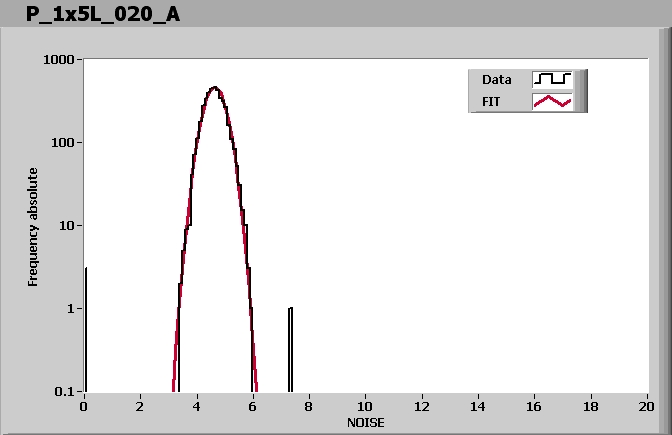

ROC1 NOISE			MEAN = 4.634537 SIGMA = 0.362618

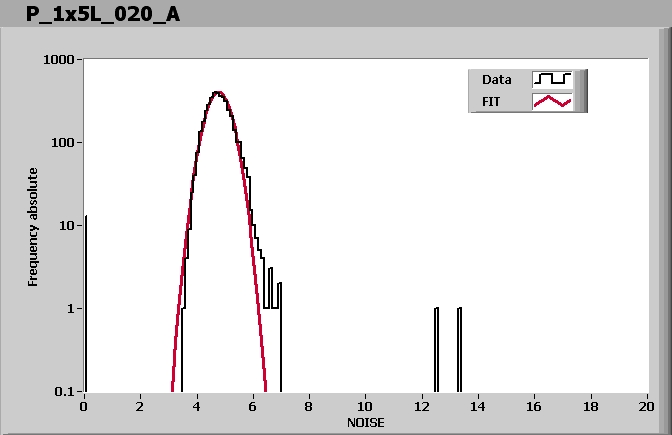

ROC2 NOISE			MEAN = 4.768314 SIGMA = 0.408064

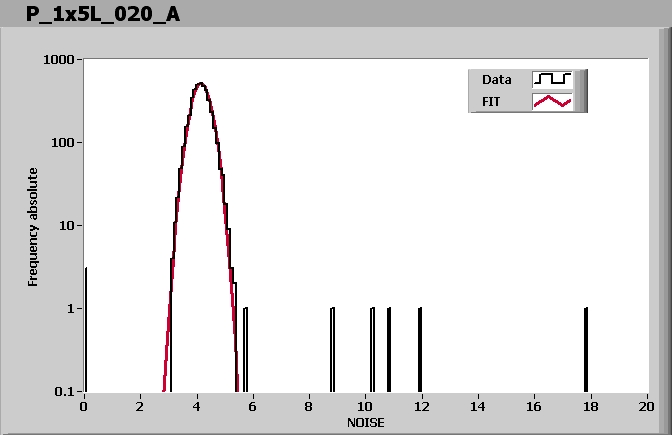

ROC3 NOISE			MEAN = 4.147064 SIGMA = 0.318294

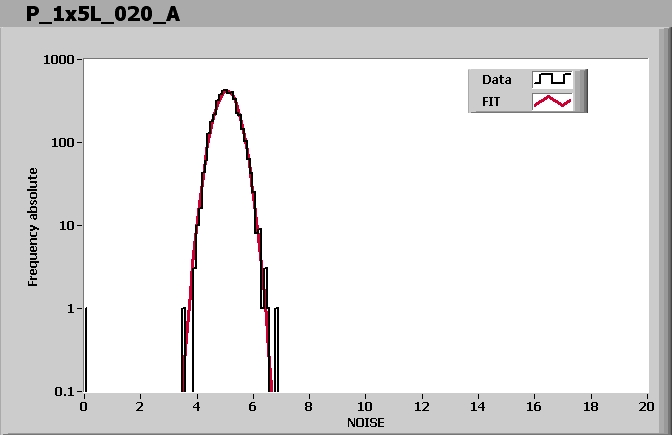

ROC4 NOISE			MEAN = 5.066043 SIGMA = 0.391006

Comment (if any):

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:26 AM

Ibias_DAC, Ibias_DAC Data	136	142	150	156	140
Vana, VanaData	143	144	134	147	148
CalDelData and plots	92	83	96	96	83
VthrCompData and plots	93	81	75	88	82
TestDdata ,TestD Plots	4	3	14	3	1
LightData ,Light Plots	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD
