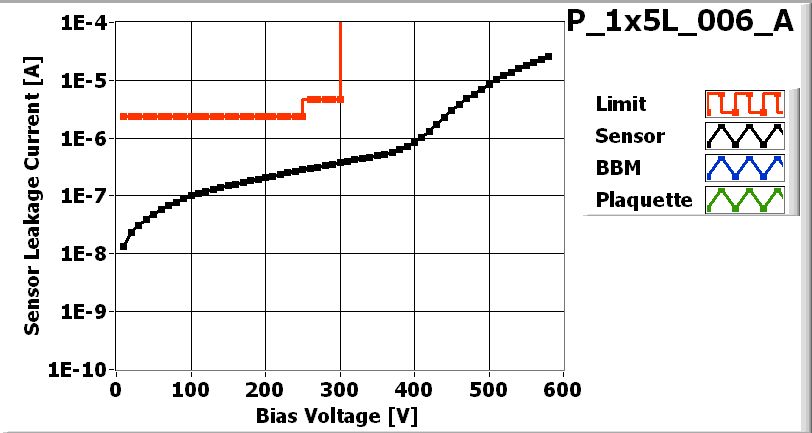

![[IMAGE] of](P_1x5L_006_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 580 V |

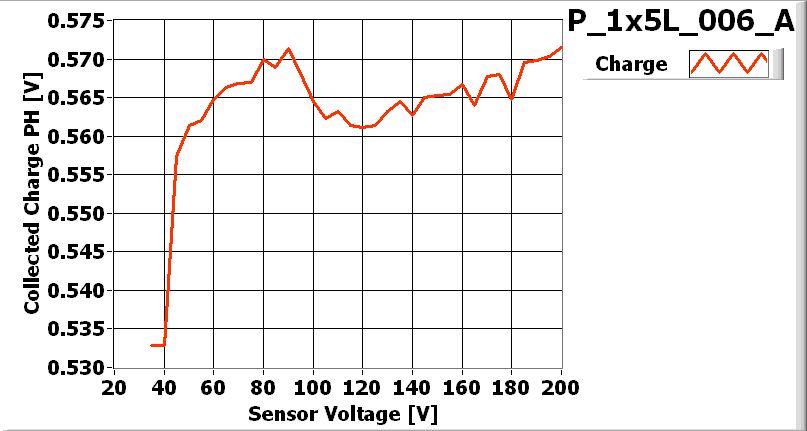

![[IMAGE] of](P_1x5L_006_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date CCYY-MM-DD
| Part | ID |
|---|---|
| BBM | BBM_006-1x5 |
| VHDI | 1x5L_203 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | X74JP0T | 62B |
| ROC1 | X74JP0T | 62A |
| ROC2 | X74JP0T | 61D |
| ROC3 | X74JP0T | 61C |
| ROC4 | X74JP0T | 73C |
Inspected by Arndt Kirk on date 2006-06-27
| LR_dev | 0.048 |
| LL_dev | 0.049 |
| FINAL COMMENT by Arndt Kirk | No problem assembly. No wirebonding problem |
PLAQUETTE made READY for testing on 2006-06-27 by Arndt Kirk
PLAQUETTE TESTED on 2006-7-05 by Bolla Gino
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 164 | 156 | 168 | 73 | 174 | |
| Vana | 126 | 118 | 145 | 143 | 148 | |
| Cal_Del | 97 | 94 | 73 | 83 | 80 | |
| Vthrs_Comp | 64 | 80 | 85 | 81 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

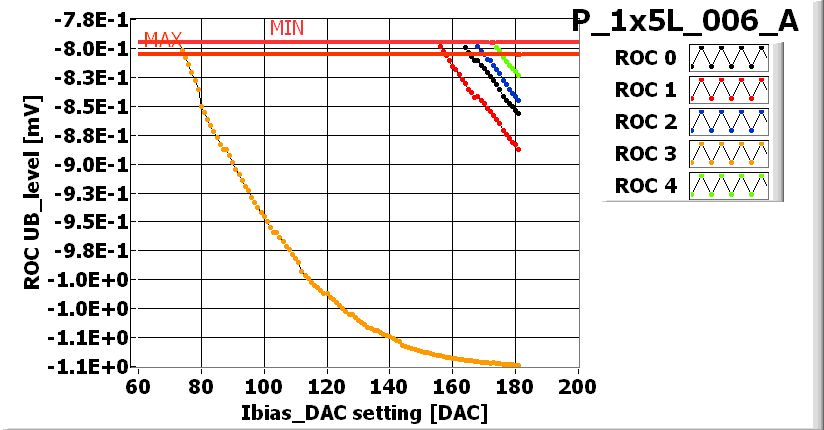

![[IMAGE] of](P_1x5L_006_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

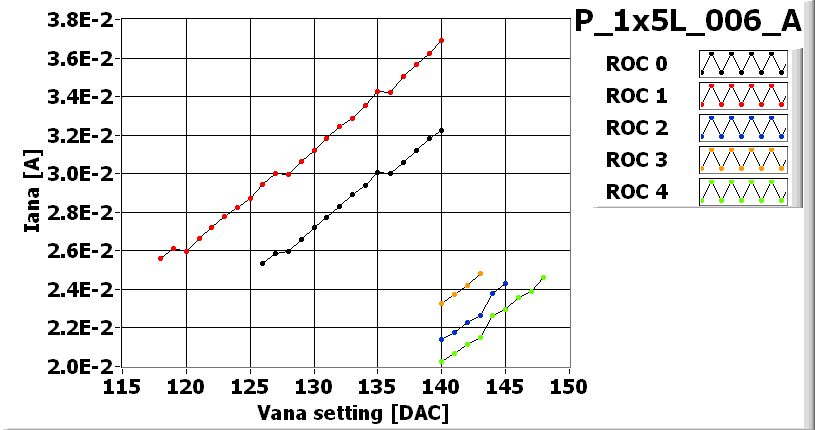

![[IMAGE] of](P_1x5L_006_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_006_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_006_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_006_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_006_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY FOR SHIPPING
Shipped on date 2006-07-21
