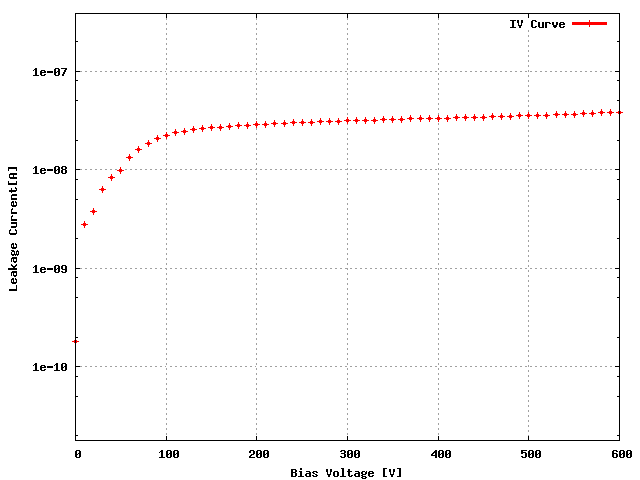

Sensor: S_1x5L_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XG4KFCT	74B
ROC1	XG4KFCT	74A
ROC2	XG4KFCT	73B
ROC3	XG4KFCT	73A
ROC4	XG4KFCT	76D

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	140	132	142	124	148
Vana, VanaData	135	145	133	128	149
CalDelData and plots	73	74	86	72	70
VthrCompData and plots	82	81	70	77	85
TestDdata ,TestD Plots	4	0	2	0	0
LightData ,Light Plots	3	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD

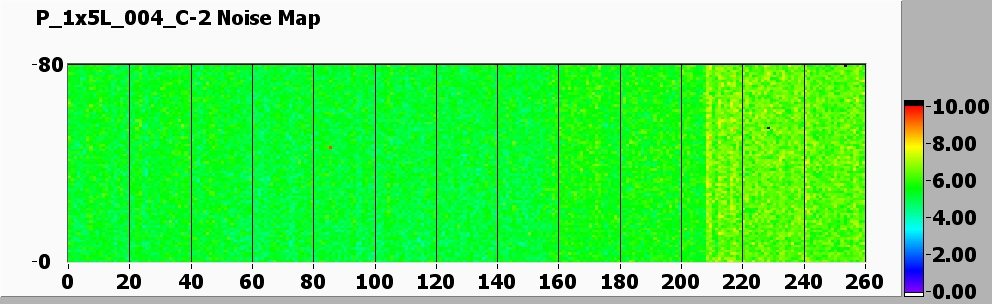

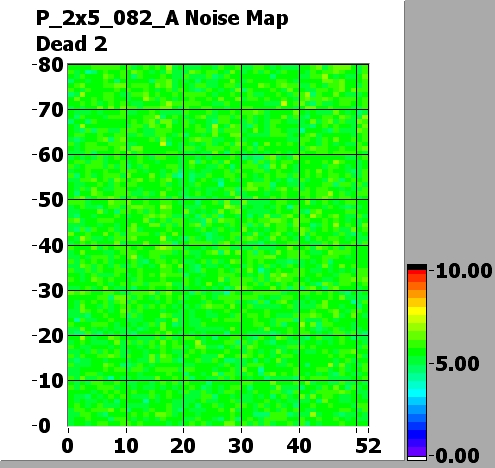

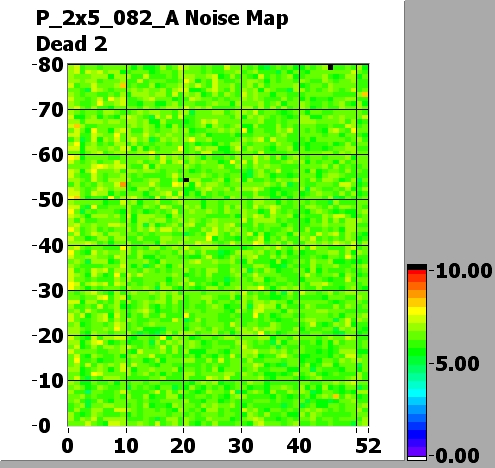

Noise MAP

Efficiency MAP

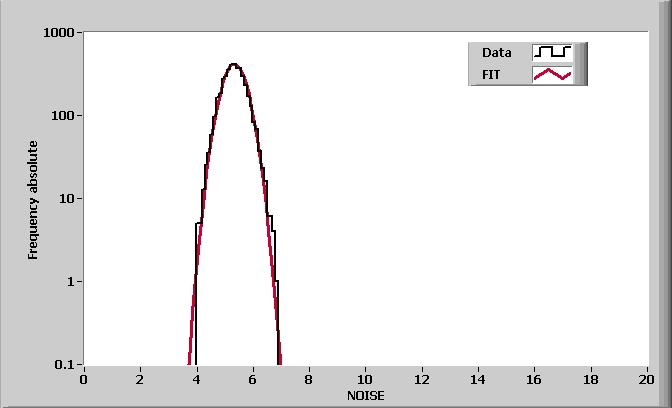

ROC0 NOISE			MEAN = 5.330700 SIGMA = 0.399557

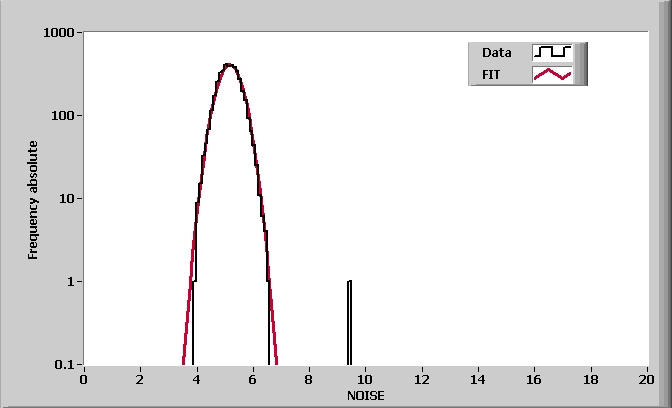

ROC1 NOISE			MEAN = 5.167976 SIGMA = 0.406335

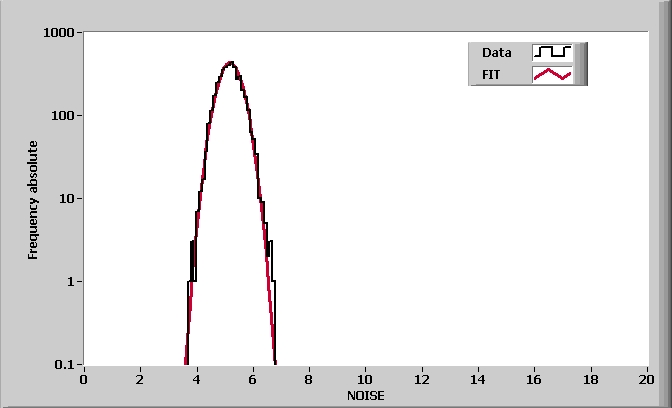

ROC2 NOISE			MEAN = 5.179209 SIGMA = 0.390476
ROC3 NOISE			MEAN = 5.585732 SIGMA = 0.400543

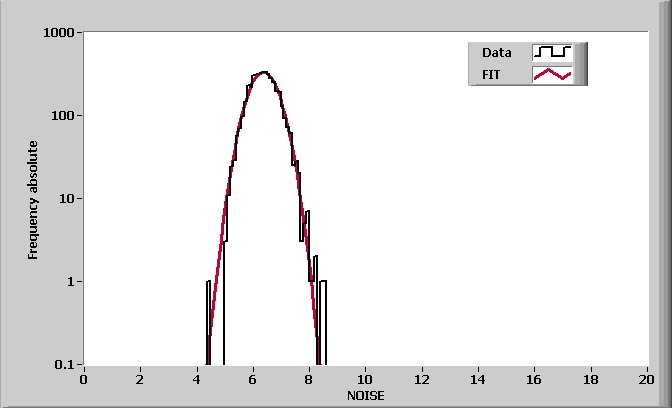

ROC4 NOISE			MEAN = 6.367136 SIGMA = 0.496542

Comment (if any):

P_1x5L_004_C-1.html,

P_1x5L_004_C.html,

End testing time: 3:58 PM
